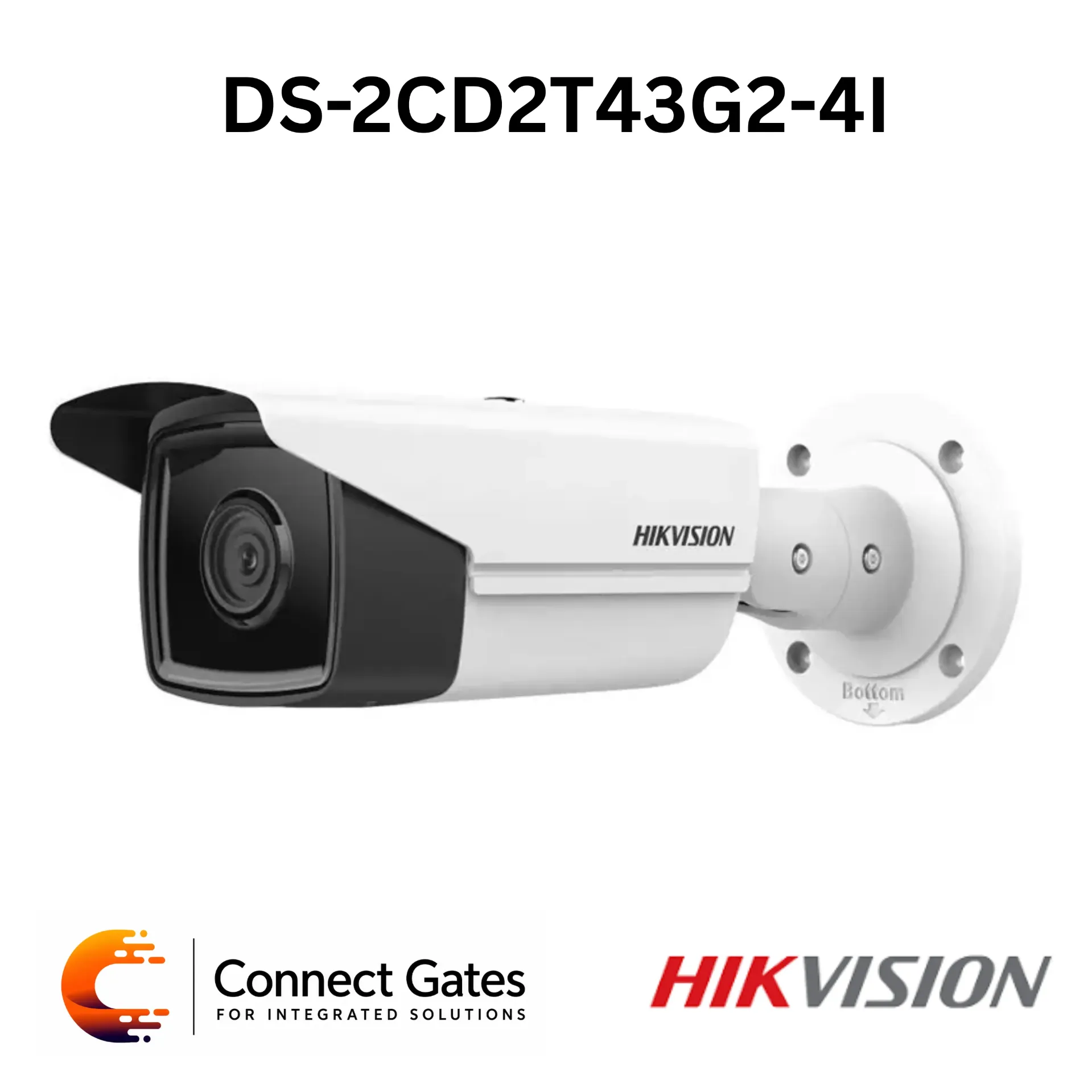

Hikvision DS-2CD2T43G2-4I – 4MP AcuSense Fixed Bullet Network Camera with 80m IR, Human & Vehicle Detection, H.265+ & IP67
Overview:
The Hikvision DS-2CD2T43G2-4I is a 4MP AcuSense Fixed Bullet Network Camera designed for professional outdoor surveillance with long-range IR coverage. It supports human and vehicle target classification, 120 dB WDR, H.265+ compression, IR night vision up to 80 m, built-in microSD storage up to 512 GB, and IP67 water and dust protection. The camera is suitable for gates, perimeters, warehouses, parking areas and long-distance monitoring points.
Key Features:
• 4MP high-definition imaging with up to 2688 × 1520 resolution
• AcuSense technology for human and vehicle target classification
• IR night vision up to 80 m for long-distance outdoor monitoring
• 120 dB WDR for clear imaging against strong backlight
• Efficient H.265+ compression to reduce bandwidth and storage usage
• 2.8 mm, 4 mm and 6 mm fixed lens options
• Supports motion detection with human and vehicle filtering
• Supports line crossing detection and intrusion detection
• Supports face detection
• Supports main stream, sub-stream and third stream
• Supports H.265, H.264, H.265+ and H.264+
• Built-in MicroSD card storage up to 512 GB
• Supports NAS storage and ANR
• Supports rotation mode, WDR, 3D DNR, HLC and BLC
• Compatible with iVMS-4200, Hik-Connect and Hik-Central
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• Aluminum alloy body with plastic sun shield and IR cover
• Available in white and black versions
Technical Specifications:
• Model: DS-2CD2T43G2-4I
• Camera Type: 4MP AcuSense Fixed Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color 0.005 Lux @ F1.6, 0 Lux with IR on
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: ICR Cut
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm / 6 mm
• 2.8 mm FOV: Horizontal 103°, Vertical 55°, Diagonal 122°
• 4 mm FOV: Horizontal 84°, Vertical 45°, Diagonal 100°
• 6 mm FOV: Horizontal 52°, Vertical 28°, Diagonal 61°
• Lens Mount: M12
• Aperture: F1.6
• DORI 2.8 mm: Detect 67 m, Observe 26 m, Recognize 13 m, Identify 6 m
• DORI 4 mm: Detect 80 m, Observe 31 m, Recognize 16 m, Identify 8 m
• DORI 6 mm: Detect 120 m, Observe 47 m, Recognize 24 m, Identify 12 m
• Supplement Light: IR
• IR Range: Up to 80 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360°
• Main Stream: Up to 2688 × 1520 at 25/30 fps
• Sub Stream: Up to 1280 × 720
• Third Stream: Up to 1920 × 1080 at 10 fps
• Video Compression: H.265, H.264, H.264+, H.265+, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• SVC: Supported
• ROI: 1 fixed region for main stream and sub-stream
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: ONVIF Profile S/G, ISAPI, SDK
• On-board Storage: Built-in microSD up to 512 GB
• Network Storage: NAS, NFS, SMB/CIFS, ANR
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Basic Event: Motion detection with human/vehicle classification, video tampering alarm, exception
• Smart Event: Line crossing detection and intrusion detection
• Face Detection: Supported
• Power Supply: 12V DC ±25% / PoE 802.3af Class 3
• Power Consumption: Max. 11.5 W by 12V DC / Max. 12.5 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Aluminum alloy body, plastic sun shield and IR cover
• Protection: IP67
• Dimensions: Ø105 mm × 299.7 mm
• Weight: Approx. 1070 g
Applications:
• Factory perimeter surveillance
• Main gates and entrances
• Warehouses and logistics areas
• Parking areas
• Outdoor yards
• Long-distance monitoring points
• Commercial and industrial sites
• Road and boundary monitoring
• Sites requiring human and vehicle detection
• Projects requiring long IR coverage
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD2T43G2-4I for outdoor projects that require 4MP image quality, AcuSense smart detection, and long-range IR coverage up to 80 m. It is a strong choice for factories, gates, warehouses, parking areas and perimeter surveillance where clear monitoring and accurate event filtering are required.
