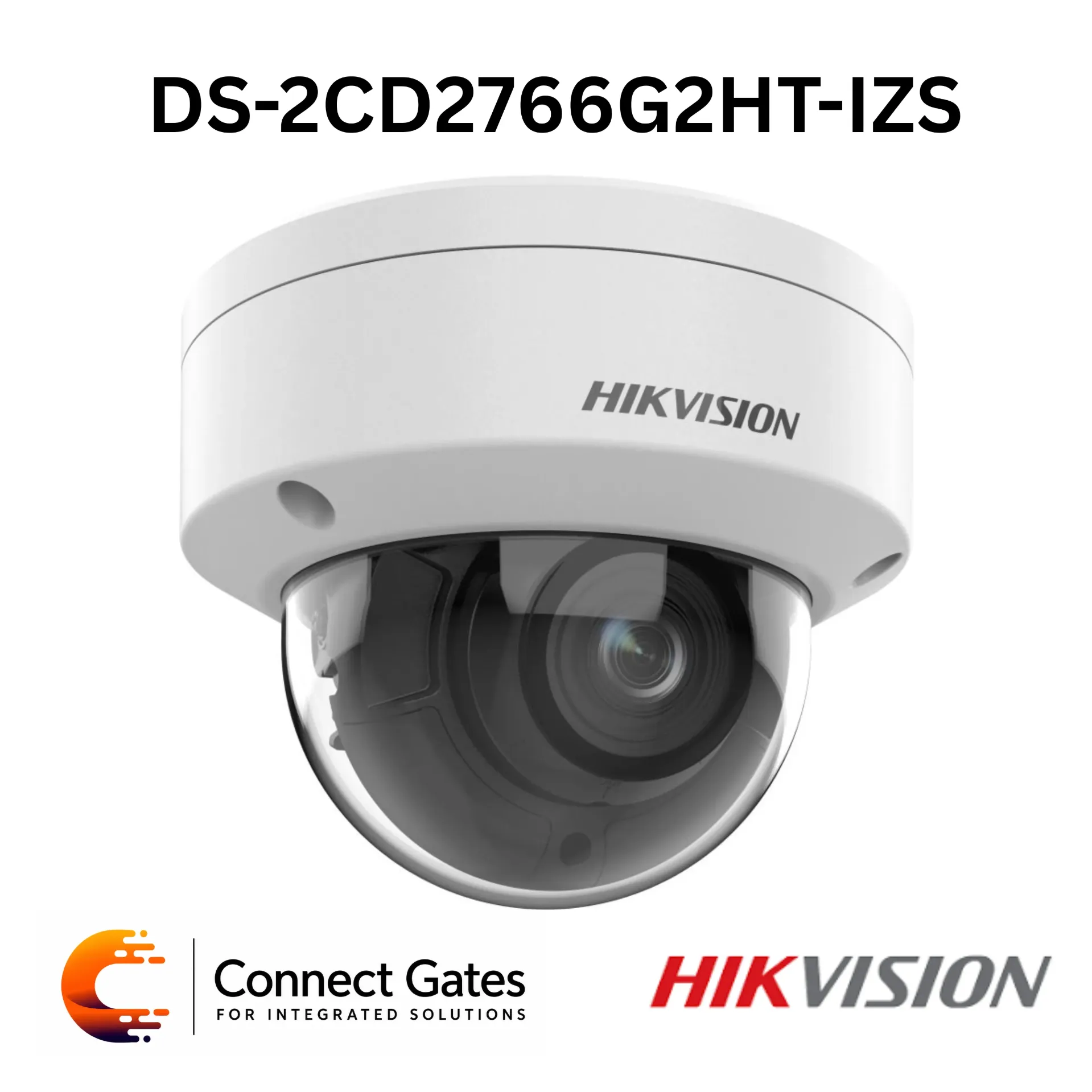

Hikvision DS-2CD2766G2HT-IZS – 6MP Powered by DarkFighter Motorized Varifocal Dome Network Camera with AcuSense, IR, H.265+ & IP67/IK10
Overview:
The Hikvision DS-2CD2766G2HT-IZS is a 6MP Powered by DarkFighter Motorized Varifocal Dome Network Camera designed for professional indoor and outdoor surveillance. It offers strong low-light performance with DarkFighter technology, AcuSense human and vehicle classification, 120 dB WDR, motorized 2.8–12 mm varifocal lens, IR night vision up to 40 m, H.265+ compression, and durable IP67 / IK10 protection.
Key Features:
• 6MP high-quality imaging with up to 3200 × 1800 resolution
• Powered by DarkFighter technology for excellent low-light performance
• AcuSense deep learning for human and vehicle classification
• Motorized varifocal lens 2.8–12 mm for easy installation and flexible monitoring
• 120 dB WDR for clear imaging against strong backlight
• IR night vision up to 40 m with smart supplement light
• Efficient H.265+ compression to reduce bandwidth and storage usage
• Supports main stream, sub-stream and third stream
• Supports H.265, H.264, H.265+ and H.264+
• Supports face capture
• Supports line crossing, intrusion, region entrance and region exiting detection
• Supports human and vehicle target filtering
• Supports scene change detection
• Built-in MicroSD card slot up to 512 GB
• Supports audio input and audio output
• Supports 1 alarm input / 1 alarm output
• Supports NAS storage and ANR
• Compatible with iVMS-4200, Hik-Connect and Hik-Central
• Supports 12V DC and PoE 802.3af
• IP67 weather protection and IK10 vandal-resistant protection
• Available in white and black versions
Technical Specifications:
• Model: DS-2CD2766G2HT-IZS
• Camera Type: 6MP Powered by DarkFighter Motorized Varifocal Dome Network Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color 0.0008 Lux @ F1.2, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8 mm to 12 mm
• Horizontal FOV: 112.3° to 41.2°
• Vertical FOV: 58.1° to 23.1°
• Diagonal FOV: 137.4° to 47.3°
• Aperture: Max. F1.2
• Depth of Field: 1 m to infinity
• DORI Wide: Detect 74.3 m, Observe 29.5 m, Recognize 14.9 m, Identify 7.4 m
• DORI Tele: Detect 183.3 m, Observe 72.8 m, Recognize 36.7 m, Identify 18.3 m
• Supplement Light: IR
• IR Range: Up to 40 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 355°, Tilt 0° to 75°, Rotate 0° to 355°
• Main Stream: Up to 3200 × 1800 at 20 fps
• Sub Stream: Up to 1280 × 720
• Third Stream: Up to 1920 × 1080 at 10 fps
• Video Compression: H.265, H.264, H.264+, H.265+
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region for main stream and sub-stream
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Interface: 1 input / 1 output
• Environment Noise Filtering: Yes
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: ONVIF Profile S/T/G, ISAPI, SDK, ISUP
• On-board Storage: MicroSD / MicroSDHC / MicroSDXC up to 512 GB
• Network Storage: NAS, NFS, SMB/CIFS, ANR
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Basic Event: Motion detection with human/vehicle filtering, video tampering alarm, exception
• Smart Event: Scene change detection
• Deep Learning: Face capture and perimeter protection
• Perimeter Protection: Line crossing, intrusion, region entrance and region exiting
• Alarm Interface: 1 input / 1 output
• Power Supply: 12V DC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: Max. 10.8 W by 12V DC / Max. 12.9 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Metal
• Protection: IP67, IK10
• Dimensions: Ø141 mm × 112 mm
• Weight: Approx. 840 g
Applications:
• Offices and administrative buildings
• Factories and warehouses
• Entrances and corridors
• Parking areas
• Retail stores
• Schools and public buildings
• Indoor and outdoor surveillance
• Locations requiring vandal-resistant dome cameras
• Projects requiring flexible viewing angle adjustment
• Sites requiring strong low-light performance and smart detection
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD2766G2HT-IZS for projects that need 6MP image quality, DarkFighter low-light performance, motorized varifocal lens flexibility, and AcuSense smart human/vehicle detection. It is a strong choice for entrances, corridors, factories, warehouses, parking areas and outdoor locations where clear image quality, flexible installation and durable protection are required.
