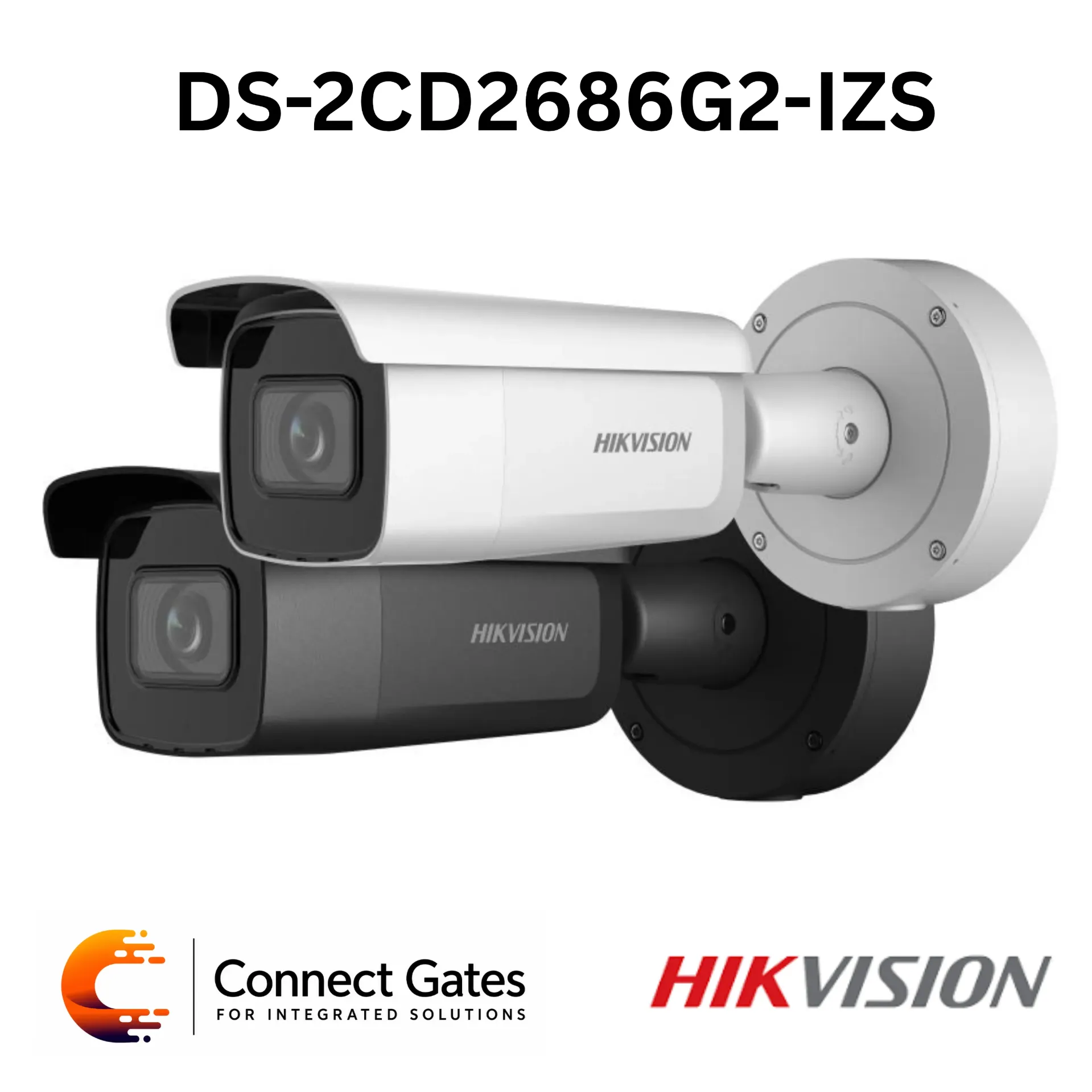

Hikvision DS-2CD2686G2-IZS – 8MP AcuSense Powered-by-DarkFighter Motorized Varifocal Bullet Network Camera with Human/Vehicle Detection, Audio/Alarm I/O, 120dB WDR, IR 60m, 512GB SD Support, IP66 & IK10
Overview:
• The Hikvision DS-2CD2686G2-IZS is an 8MP AcuSense Powered-by-DarkFighter motorized varifocal bullet network camera designed for professional indoor and outdoor IP surveillance.
• It delivers high-quality 4K imaging with 3840 × 2160 resolution, providing very high image detail for critical monitoring areas.
• AcuSense technology uses deep learning algorithms to focus on human and vehicle target classification, improving alarm accuracy and reducing false alarms.
• Powered-by-DarkFighter technology provides excellent low-light performance for clearer images in challenging night scenes.
• The motorized varifocal 2.8 to 12 mm lens allows flexible viewing angle adjustment during installation and maintenance.
• 120 dB true WDR helps deliver clear images against strong backlight and difficult lighting conditions.
• IR illumination reaches up to 60 meters, making it suitable for large outdoor areas, gates, warehouses, parking areas, and perimeter monitoring.
• The camera supports audio input/output, alarm input/output, face capture, perimeter protection, smart event functions, on-board microSD storage up to 512GB, and PoE.
• With metal housing, IP66 weather protection, IK10 vandal resistance, H.265+ compression, ANR support, and professional network security features, it is suitable for high-value commercial, industrial, factory, warehouse, and outdoor security projects.
Key Features:
• 8MP 4K Imaging: Provides 3840 × 2160 resolution for highly detailed surveillance.
• AcuSense Technology: Focuses on human and vehicle target classification using deep learning.
• Powered-by-DarkFighter: Provides excellent low-light performance for clearer night images.
• Motorized Varifocal Lens: 2.8 to 12 mm lens for flexible wide-to-tele monitoring.
• 60m IR Night Vision: Long-range infrared monitoring up to 60 m.
• 120dB True WDR: Clear imaging against strong backlight.
• Human & Vehicle Classification: Supports motion and perimeter events with target classification.
• Face Capture: Supports face capture function.
• Perimeter Protection: Supports line crossing, intrusion, region entrance, and region exiting detection.
• Audio Interface: Supports 1 audio input and 1 audio output.
• Alarm Interface: Supports 1 alarm input and 1 alarm output.
• On-Board Storage: Built-in microSD slot supports up to 512GB.
• ANR Support: Supports auto network replenishment with NAS storage.
• SVC Support: Supports scalable video coding with H.264 and H.265 encoding.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Target Cropping: Supports target cropping for focused monitoring.
• PoE Support: Uses IEEE 802.3at Class 4 for power and data over one cable.
• Metal Housing: Strong professional camera body.
• IP66 Protection: Water and dust resistant for outdoor installation.
• IK10 Vandal Resistance: Suitable for exposed and high-risk locations.
• Hik-Connect / Hik-Central Support: Supports remote viewing and professional management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD2686G2-IZS
• Product Type: 8MP AcuSense Powered-by-DarkFighter Motorized Varifocal Bullet Network Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Maximum Resolution: 3840 × 2160
• Minimum Illumination: Color: 0.003 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120 dB
• Day & Night: IR cut filter
• Power-Off Memory: Yes
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: Motorized varifocal lens
• Lens Range: 2.8 mm to 12 mm
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.4
• Field of View: Horizontal 108° to 46°, Vertical 58° to 26°, Diagonal 127.4° to 52°
• DORI – Wide: Detect 86.0 m, Observe 34.1 m, Recognize 17.2 m, Identify 8.6 m
• DORI – Tele: Detect 214.0 m, Observe 84.9 m, Recognize 42.8 m, Identify 21.4 m
• Supplement Light Type: IR
• IR Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream – 50Hz: 25fps at 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720
• Main Stream – 60Hz: 24fps at 3840 × 2160; 30fps at 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720
• Sub-Stream – 50Hz: 25fps at 1280 × 720 / 640 × 480 / 640 × 360
• Sub-Stream – 60Hz: 30fps at 1280 × 720 / 640 × 480 / 640 × 360
• Third Stream – 50Hz: 10fps at 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360
• Third Stream – 60Hz: 10fps at 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360
• Third Stream Note: Supported under certain settings
• Video Compression – Main Stream: H.265 / H.264 / H.264+ / H.265+
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Compression – Third Stream: H.265 / H.264
• Video Bitrate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• H.264+ Support: Main stream supports
• H.265+ Support: Main stream supports
• Bitrate Control: CBR / VBR
• Scalable Video Coding: H.264 and H.265 encoding
• Region of Interest: 1 fixed region for main stream and sub-stream
• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Audio Bitrate: 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 192 Kbps for MP2L2; 8 to 320 Kbps for MP3; 16 to 64 Kbps for AAC-LC
• Audio Input: 1 input, 3.5 mm line-in connector, max. input amplitude 3.3 Vpp, input impedance 4.7 KΩ
• Audio Output: 1 output, 3.5 mm line-out connector, max. output amplitude 3.3 Vpp, output impedance 100 Ω
• Alarm Interface: 1 input, 1 output, max. 24 VDC / 24 VAC, 1A
• Simultaneous Live View: Up to 6 channels
• API: ONVIF Profile S / Profile G / Profile T, ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, HTTP/HTTPS authentication, TLS 1.1 / 1.2, WSSE and ONVIF digest authentication
• Network Storage: NAS using NFS and SMB/CIFS, Auto Network Replenishment
• Memory Card Features: Memory card encryption and health detection supported with high-end Hikvision memory card
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: IE 10 / IE 11 with plug-in; Chrome 57.0+ / Firefox 52.0+ / Edge 89+ plug-in-free live view and local service
• Image Parameters Switch: Yes
• SNR: ≥52 dB
• Target Cropping: Yes
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Enhancement: BLC / HLC / 3D DNR
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• On-Board Storage: Built-in microSD slot up to 512GB
• Hardware Reset: Yes
• Communication Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Basic Event: Motion detection with human and vehicle target classification, video tampering alarm, exception
• Smart Event: Scene change detection
• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Perimeter Classification: Supports human and vehicle target classification
• Linkage Method: Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
• Software Reset: Yes
• Power Interface: Two-core terminal block
• Power Supply: 12 VDC ±25% with reverse polarity protection / PoE IEEE 802.3at Class 4
• Power Consumption: 12 VDC: 1.08A, max. 13W; PoE: 42.5V to 57V, 0.36A to 0.27A, max. 15W
• Camera Material: Metal
• Dimensions: Ø144.1 mm × 345.7 mm
• Package Dimensions: 385 mm × 190 mm × 180 mm
• Weight: Approx. 1430 g
• With Package Weight: Approx. 2490 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Mirror, Privacy Mask, Flash Log, Password Reset via Email, Pixel Counter
• Language: 33 languages supported
• Protection Rating: IP66
• Vandal Resistance: IK10
• Available Models: DS-2CD2686G2-IZS 2.8 to 12 mm / DS-2CD2686G2-IZS 2.8 to 12 mm Black
Applications:
• Factory gates
• Warehouses
• Industrial sites
• Parking areas
• Outdoor entrances
• Building gates
• Loading areas
• Perimeter monitoring
• Critical outdoor surveillance points
• Commercial buildings
• Logistics areas
• Large yards and open areas
• Public entrances
• High-value monitoring locations
• Sites requiring 8MP 4K image detail
• Projects requiring human and vehicle classification
• Areas requiring AcuSense smart detection
• Locations requiring face capture
• Sites requiring audio and alarm input/output
• Projects requiring motorized varifocal lens adjustment
• Locations requiring 60 m IR night monitoring
• Projects requiring IP66 and IK10 protection
• Professional systems using Hik-Central or advanced NVR recording
Connect Gates Recommendation:
• Recommended for professional CCTV projects that need 8MP 4K image quality, smart detection, and reliable outdoor performance.
• AcuSense technology makes it a strong choice for locations where false alarms must be reduced, especially gates, perimeters, loading areas, parking areas, and industrial sites.
• Powered-by-DarkFighter technology is useful for sites that need better low-light performance than standard IR bullet cameras.
• The motorized 2.8 to 12 mm lens gives installation flexibility and allows the camera to be adjusted for wide viewing or focused long-distance monitoring.
• 60 m IR range makes it suitable for larger outdoor scenes and long night monitoring.
• Audio and alarm interfaces make it suitable for more advanced security integration, including external microphones, speakers, alarm sensors, and alarm output linkage.
• IP66, IK10, and metal housing make it a strong choice for outdoor, exposed, industrial, and public areas where durability is important.
• Best suited for customers who need a Hikvision professional 8MP AcuSense bullet camera with DarkFighter low-light performance, motorized varifocal lens, human/vehicle classification, face capture, alarm/audio I/O, 512GB microSD storage, PoE, IP66 protection, IK10 vandal resistance, and efficient H.265+ recording.
