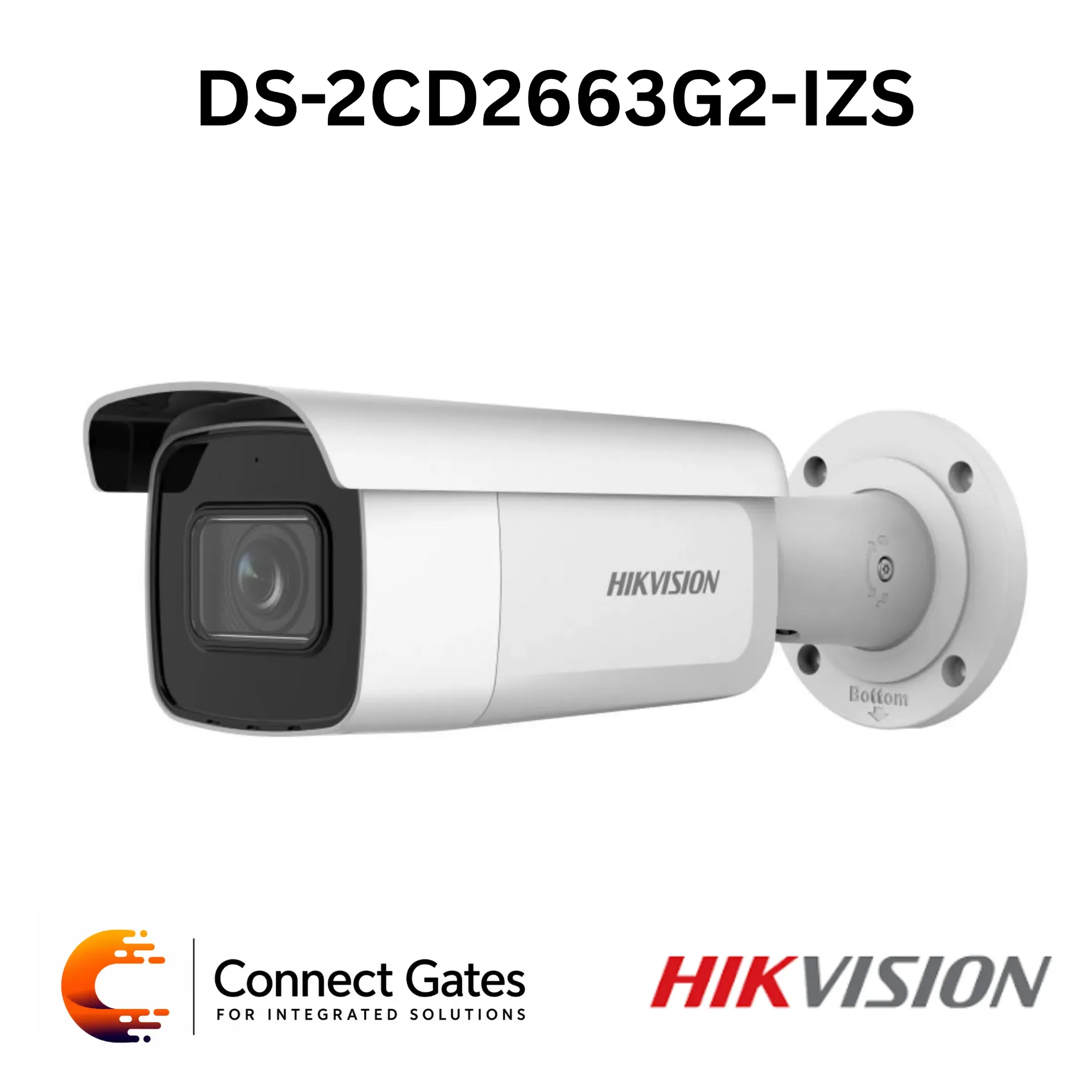

Hikvision DS-2CD2663G2-IZS – 6MP AcuSense Motorized Varifocal Bullet Network Camera with Human/Vehicle Detection, Audio/Alarm I/O, 120dB WDR, IR 60m, 512GB SD Support, IP67 & IK10
Overview:
• The Hikvision DS-2CD2663G2-IZS is a 6MP AcuSense Motorized Varifocal Bullet Network Camera designed for professional indoor and outdoor IP surveillance systems.
• It delivers high-quality 6MP video resolution up to 3200 × 1800, suitable for entrances, gates, warehouses, parking areas, villas, shops, and perimeter monitoring.
• The camera is powered by Hikvision AcuSense technology, focusing on human and vehicle target classification to improve alarm accuracy and reduce false alerts.
• It features a motorized 2.8–12mm varifocal lens, allowing flexible adjustment from wide coverage to focused long-view monitoring.
• It supports 120dB true WDR for clear imaging against strong backlight, helping maintain better visibility in difficult lighting conditions.
• With H.265+ compression, IR illumination up to 60 meters, audio/alarm input/output, onboard microSD storage up to 512GB, PoE support, aluminum alloy body, IP67 weather protection, and IK10 vandal resistance, it is a strong bullet camera solution for demanding CCTV projects.
Key Features:
• 6MP Resolution: High-quality imaging with maximum resolution of 3200 × 1800.
• AcuSense Technology: Focuses on human and vehicle target classification based on deep learning.
• Motorized Varifocal Lens: 2.8–12mm lens for flexible zoom and viewing angle adjustment.
• Human/Vehicle Detection: Supports motion detection with human and vehicle target classification.
• Smart Events: Supports line crossing detection, intrusion detection, and face detection.
• 120dB True WDR: Clear imaging against strong backlight.
• H.265+ Compression: Reduces bandwidth and storage usage efficiently.
• IR Night Vision: Provides infrared illumination up to 60 meters.
• Audio Interface: Supports 1 audio input and 1 audio output.
• Alarm Interface: Supports 1 alarm input and 1 alarm output.
• 512GB SD Card Support: Built-in microSD card slot supports up to 512GB.
• IP67 Protection: Water and dust resistant for outdoor installation.
• IK10 Vandal Resistance: Strong protection for exposed installation areas.
• PoE Support: Supports IEEE 802.3at PoE for easier installation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD2663G2-IZS
• Product Type: AcuSense Motorized Varifocal Bullet Network Camera
• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Resolution: 6MP
• Min. Illumination: Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8mm to 12mm
• Field of View: Horizontal 106° to 35°, Vertical 56° to 20°, Diagonal 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• DORI Wide: Detect 68m, Observe 27m, Recognize 13m, Identify 7m
• DORI Tele: Detect 200m, Observe 79m, Recognize 40m, Identify 20m
• Supplement Light Type: IR
• IR Range: Up to 60m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: 25 fps at 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720 at 50Hz; 30 fps at the same resolutions at 60Hz
• Sub-Stream: 1280 × 720 / 640 × 480 / 640 × 360 up to 25/30 fps
• Third Stream: 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 up to 10 fps under certain settings
• Video Compression: Main stream: H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264
• Video Bitrate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream and sub-stream
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Audio Sampling Rate: 8kHz / 16kHz / 32kHz / 44.1kHz / 48kHz
• Environment Noise Filtering: Supported
• Audio Interface: 1 input and 1 output
• Alarm Interface: 1 input and 1 output, max. 24V DC / 24V AC, 1A
• Wide Dynamic Range: 120dB
• SNR: ≥ 52dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Network Storage: NAS, ANR
• Onboard Storage: Built-in microSD card slot up to 512GB
• Basic Events: Motion detection with human and vehicle target classification, video tampering alarm, exception
• Smart Events: Line crossing detection, intrusion detection, face detection
• Linkage: Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• API: ONVIF Profile S / Profile G / Profile T, ISAPI, SDK, ISUP
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Reset Key: Supported
• Power Supply: 12V DC ±25%, max. 13W
• PoE: IEEE 802.3at, Class 4, max. 15W
• Material: Aluminum alloy body
• Dimensions: 308.5 × 97.9 × 93 mm
• Weight: Approx. 1385g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67 / IK10
Applications:
• Professional indoor and outdoor IP CCTV systems
• Building entrances and gates
• Warehouses and storage areas
• Parking areas and outdoor corridors
• Villas and residential compounds
• Shops and commercial facilities
• Perimeter surveillance and long-view monitoring
• Projects requiring motorized varifocal coverage
• Installations requiring AcuSense detection, audio/alarm integration, SD card backup, PoE, IP67, and IK10 protection
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD2663G2-IZS for professional IP CCTV projects that need 6MP bullet camera coverage with motorized zoom and AcuSense smart detection.
• It is suitable for gates, entrances, warehouses, parking areas, outdoor corridors, villas, shops, and perimeter areas where flexible lens adjustment and longer IR coverage are important.
• The camera offers strong value with 6MP resolution, AcuSense technology, 2.8–12mm motorized varifocal lens, human/vehicle classification, 120dB WDR, IR up to 60m, audio/alarm I/O, 512GB SD card support, IP67, and IK10.
• For wider scenes, use the wide end of the lens; for focused monitoring over longer distances, use the tele end during installation.
• For projects that do not need audio/alarm I/O or long IR range, Connect Gates recommends comparing it with smaller AcuSense bullet models according to budget and site requirements.
