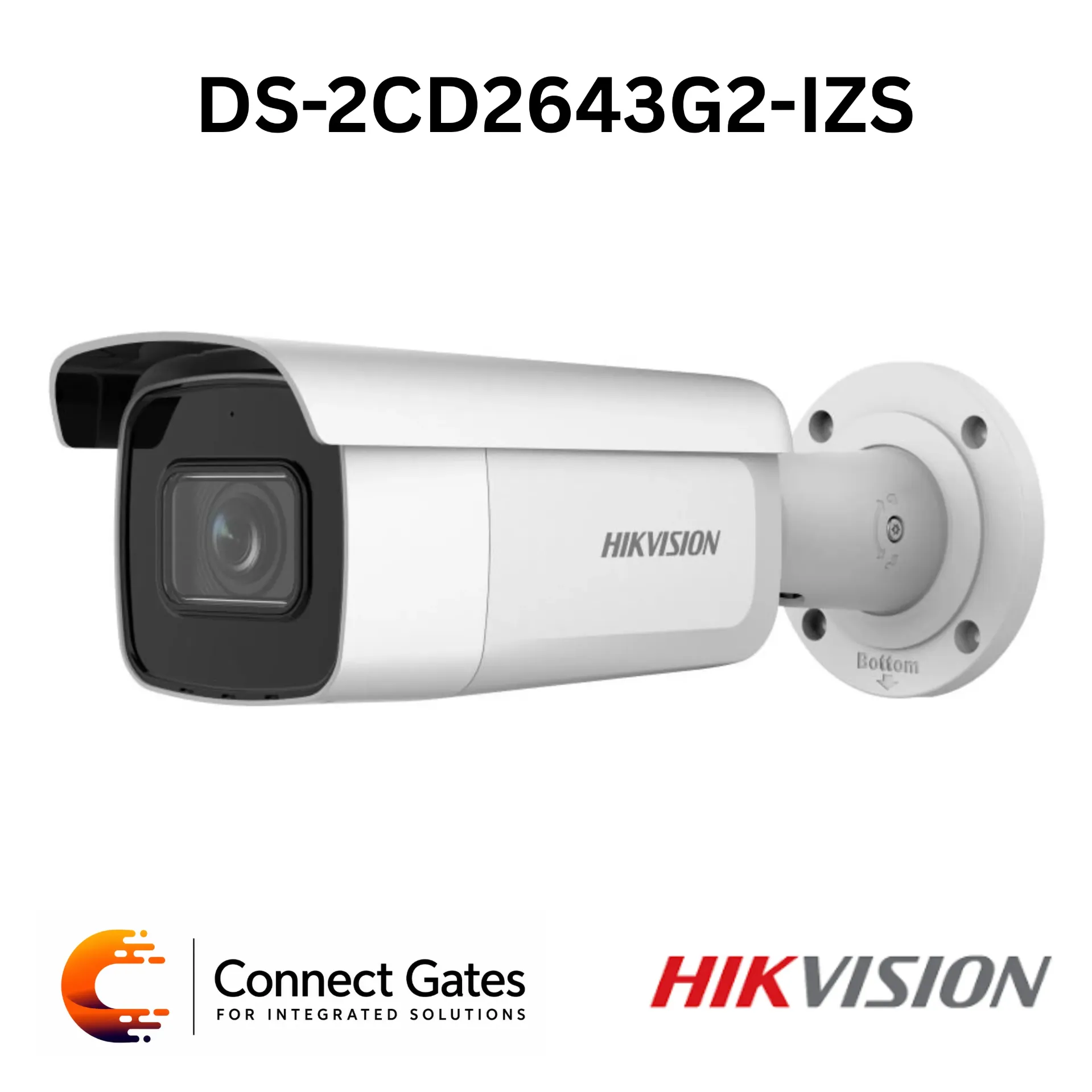

Hikvision DS-2CD2643G2-IZS – 4MP AcuSense Motorized Varifocal Bullet Network Camera with IR, Audio/Alarm, H.265+ & IP67/IK10
Overview:
The Hikvision DS-2CD2643G2-IZS is a 4MP AcuSense Motorized Varifocal Bullet Network Camera designed for professional indoor and outdoor surveillance. It supports human and vehicle target classification, motorized 2.8–12 mm varifocal lens, 120 dB WDR, IR night vision up to 60 m, H.265+ compression, built-in audio and alarm interfaces, MicroSD storage up to 512 GB, and strong outdoor protection with IP67 weather resistance and IK10 vandal resistance.
Key Features:
• 4MP high-quality imaging with up to 2688 × 1520 resolution
• AcuSense technology for human and vehicle target classification
• Motorized varifocal lens 2.8–12 mm for flexible installation and monitoring
• 120 dB WDR for clear imaging against strong backlight
• IR night vision up to 60 m
• Efficient H.265+ compression to reduce bandwidth and storage usage
• Supports line crossing and intrusion detection
• Supports face detection
• Supports motion detection with human and vehicle classification
• Supports main stream, sub-stream and third stream
• Supports H.265, H.264, H.265+ and H.264+
• Built-in MicroSD card storage up to 512 GB
• Supports audio input and audio output
• Supports 1 alarm input / 1 alarm output
• Supports NAS storage and ANR
• Compatible with iVMS-4200, Hik-Connect and Hik-Central
• Supports 12V DC and PoE 802.3at
• IP67 weather protection
• IK10 vandal-resistant protection
• Aluminum alloy body for durable installation
Technical Specifications:
• Model: DS-2CD2643G2-IZS
• Camera Type: 4MP AcuSense Motorized Varifocal Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color 0.005 Lux @ F1.6, 0 Lux with IR on
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: ICR Cut
• WDR: 120 dB
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8 mm to 12 mm
• Horizontal FOV: 95.8° to 29.2°
• Vertical FOV: 50.6° to 16.4°
• Diagonal FOV: 114.6° to 33.4°
• Aperture: F1.6
• Lens Mount: Ø14
• DORI: Detect 64–200 m, Observe 25.4–79.4 m, Recognize 12.8–40 m, Identify 6.4–20 m
• Supplement Light: IR
• IR Range: Up to 60 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360°
• Main Stream: Up to 2688 × 1520 at 25/30 fps
• Sub Stream: Up to 1280 × 720
• Third Stream: Up to 1920 × 1080 at 10 fps
• Video Compression: H.265, H.264, H.264+, H.265+
• Video Bit Rate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• SVC: Supported
• ROI: 1 fixed region for main stream and sub-stream
• Audio Interface: 1 input / 1 output
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Environment Noise Filtering: Yes
• Alarm Interface: 1 input / 1 output
• Image Enhancement: BLC, HLC, 3D DNR
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface Profile S/G, ISAPI, SDK
• On-board Storage: Built-in microSD up to 512 GB
• Network Storage: NAS, NFS, SMB/CIFS, ANR
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Basic Event: Motion detection with human/vehicle classification, video tampering alarm, exception
• Face Detection: Supported
• Perimeter Protection: Line crossing detection and intrusion detection with human/vehicle classification
• Power Supply: 12V DC ±25% / PoE 802.3at Class 4
• Power Consumption: Max. 13 W by 12V DC / Max. 15 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Aluminum alloy body
• Protection: IP67, IK10
• Dimensions: 308.5 mm × 97.9 mm × 93 mm
• Weight: Approx. 1390 g
Applications:
• Factory perimeter surveillance
• Main gates and entrances
• Warehouses and logistics areas
• Parking areas
• Outdoor yards
• Commercial buildings
• Industrial sites
• Road and boundary monitoring
• Sites requiring motorized lens adjustment
• Projects requiring human and vehicle smart detection
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD2643G2-IZS for projects that need 4MP image quality, motorized varifocal lens flexibility, AcuSense smart detection, and strong outdoor protection. It is a practical choice for factories, gates, warehouses, parking areas and perimeter surveillance where flexible lens adjustment, long IR coverage and reliable event filtering are required.
