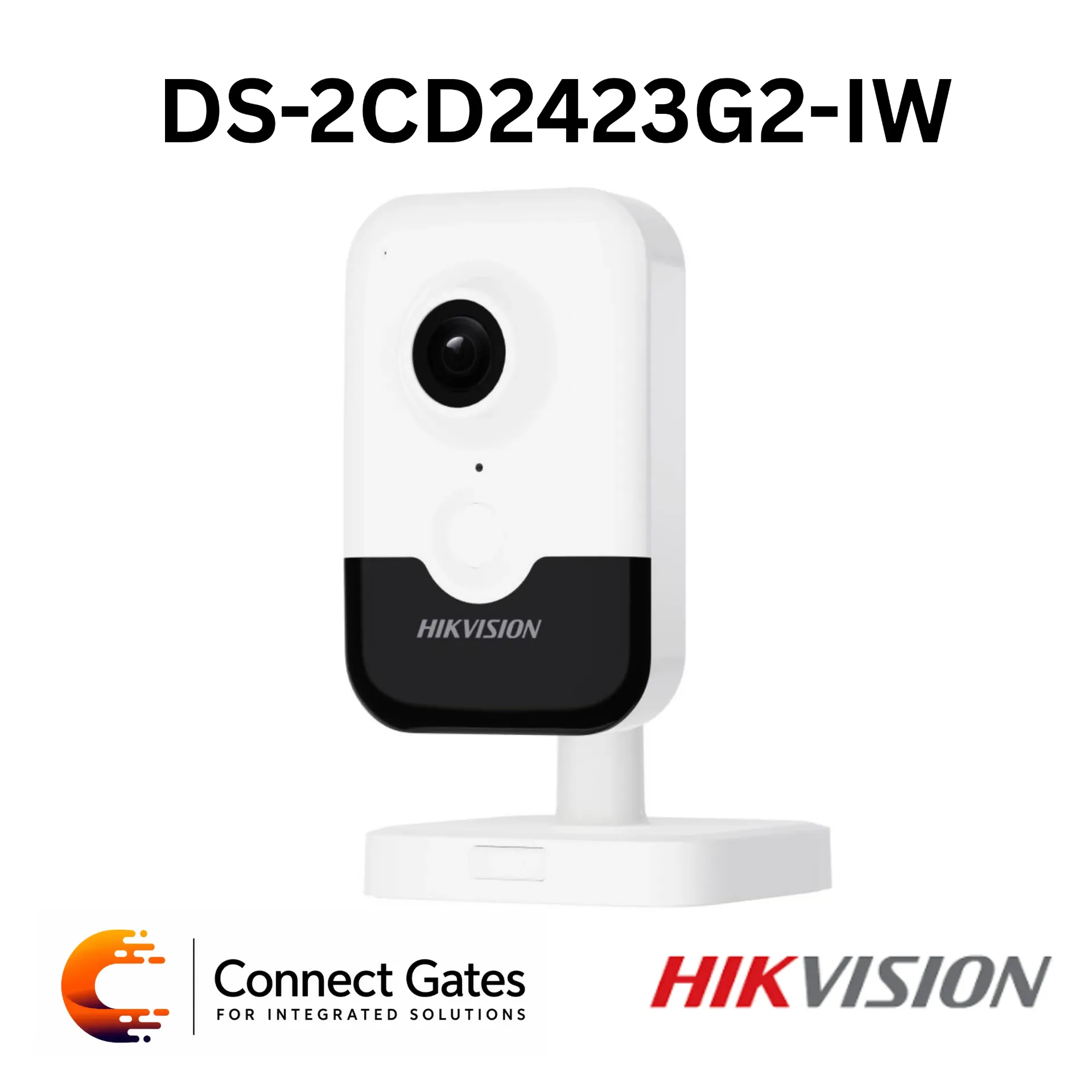

Hikvision DS-2CD2423G2-IW – 2MP Fixed Cube Network Camera with Human Classification, Built-in Two-Way Audio, Wi-Fi, 10m IR, microSD Storage & Digital WDR
Overview:
• The Hikvision DS-2CD2423G2-IW is a 2MP fixed cube network camera designed for indoor IP surveillance applications.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• The camera supports human classification based on deep learning, helping focus alerts on human-related motion events.
• Digital WDR improves image clarity in scenes with strong backlight or mixed lighting.
• Built-in two-way audio provides real-time communication through the built-in microphone and speaker.
• The camera supports Wi-Fi connectivity using IEEE 802.11b/g/n, giving flexible installation where network cabling is not preferred.
• It includes a built-in memory card slot supporting microSD / microSDHC / microSDXC cards up to 512GB for local edge storage.
• With IR night vision up to 10 m, privacy masks, Hik-Connect support, reset key, PoE, and compact cube design, it is suitable for homes, offices, reception areas, shops, clinics, and indoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear indoor monitoring.
• Human Classification: Focuses on human target detection using deep learning.
• Built-in Two-Way Audio: Includes 1 built-in microphone and 1 built-in speaker.
• Wi-Fi Connectivity: Supports IEEE 802.11b/g/n wireless connection.
• Wireless Range: Up to 50 m depending on actual environment.
• 10m IR Night Vision: IR supplement light range up to 10 m.
• Digital WDR: Improves image clarity against strong backlight.
• microSD Storage: Supports memory cards up to 512GB.
• Privacy Mask: Supports 4 programmable polygon privacy masks.
• PoE Support: Supports IEEE 802.3af Class 3 for easier wired installation.
• Audio Noise Filtering: Helps improve audio quality.
• Audible Warning: Can trigger audible warning through event linkage.
• Hik-Connect Support: Enables remote viewing and monitoring.
• Compact Cube Design: Suitable for indoor desk, shelf, wall, and reception installations.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD2423G2-IW
• Product Type: 2MP Fixed Cube Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Aperture: F1.6
• Field of View – 2.8 mm: Horizontal 92°, Vertical 50°, Diagonal 110°
• Field of View – 4 mm: Horizontal 75°, Vertical 41°, Diagonal 89°
• DORI – 2.8 mm: Detect 38.6 m, Observe 15.3 m, Recognize 7.7 m, Identify 3.9 m
• DORI – 4 mm: Detect 54.8 m, Observe 21.7 m, Recognize 11.0 m, Identify 5.5 m
• Supplement Light Type: IR
• IR Range: Up to 10 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720 / 768 × 432; 60Hz: 30fps at 1920 × 1080 / 1280 × 720 / 768 × 432
• Sub-Stream: 50Hz: 25fps at 768 × 432 / 512 × 288; 60Hz: 30fps at 768 × 432 / 512 × 288
• Video Compression – Main Stream: H.265 / H.264
• Video Compression – Sub-Stream: H.265 / H.264
• Video Bitrate: Up to 1 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR / VBR
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz / 16 kHz
• Audio Compression: G.711 / AAC-LC
• Audio Bitrate: 64 Kbps for G.711; 16 to 64 Kbps for AAC-LC
• Simultaneous Live View: Up to 4 channels
• API: ONVIF, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
• User / Host: Administrator
• Security: Password protection, HTTPS encryption, Security Audit Log, HTTP/HTTPS authentication, TLS 1.1 / 1.2, WSSE for ONVIF
• Client Software: iVMS-4200, Hik-Connect, Hik-Partner-Pro
• Wi-Fi Encryption Mode: WPA-PSK / WPA2-PSK
• Wi-Fi Protocol: IEEE 802.11b / 802.11g / 802.11n
• Frequency Range: 2.412 GHz to 2.472 GHz
• Channel Bandwidth: 20 MHz
• Wireless Range: Up to 50 m depending on actual environment
• Transfer Rate: 802.11b up to 54 Mbps, 802.11g up to 54 Mbps, 802.11n up to 150 Mbps
• Wide Dynamic Range: Digital WDR
• Privacy Mask: 4 programmable polygon privacy masks
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Parameters Switch: Yes
• Image Settings: Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Built-in Microphone: Yes, 1 built-in microphone
• Built-in Speaker: Yes, 1 built-in speaker
• On-Board Storage: microSD / microSDHC / microSDXC card slot up to 512GB
• Reset Key: Yes
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Basic Event: Motion detection with specified target type human, exception
• Event Linkage: Upload to memory card, notify surveillance center, trigger capture, audible warning
• Power Supply: 12 VDC, 0.4A, max. 4.9W
• PoE: IEEE 802.3af, Class 3
• General Function: Heartbeat, Mirror
• Material: Plastic
• Dimensions: 102.9 mm × 65.2 mm × 32.6 mm
• Package Dimensions: 150 mm × 125 mm × 99 mm
• Weight: Approx. 120 g
• With Package Weight: Approx. 430 g
• Operating Conditions: -10°C to 45°C, humidity 95% or less, non-condensing
• Storage Conditions: -10°C to 45°C, humidity 95% or less, non-condensing
• Available Models: DS-2CD2423G2-IW 2.8 mm / DS-2CD2423G2-IW 4 mm
Applications:
• Homes and apartments
• Offices
• Reception areas
• Clinics
• Retail shops
• Cashier areas
• Service counters
• Small business monitoring
• Indoor entrances
• Manager rooms
• Baby room or home monitoring
• Indoor areas requiring two-way audio
• Sites requiring Wi-Fi camera installation
• Locations requiring local microSD recording
Connect Gates Recommendation:
• Recommended for indoor projects that need a smart compact camera with built-in two-way audio and Wi-Fi connectivity.
• The human classification feature makes it more practical than basic indoor cameras because it focuses alerts on human movement.
• The built-in microphone and speaker are useful for reception areas, cashier points, small offices, homes, clinics, and service counters where real-time communication is needed.
• Wi-Fi support gives flexible installation in locations where pulling network cable is difficult, while PoE remains available for more stable wired installations.
• Best suited for customers who need an indoor Hikvision IP camera with Full HD image quality, two-way audio, human detection, microSD storage, Wi-Fi, and simple remote viewing through Hik-Connect.
