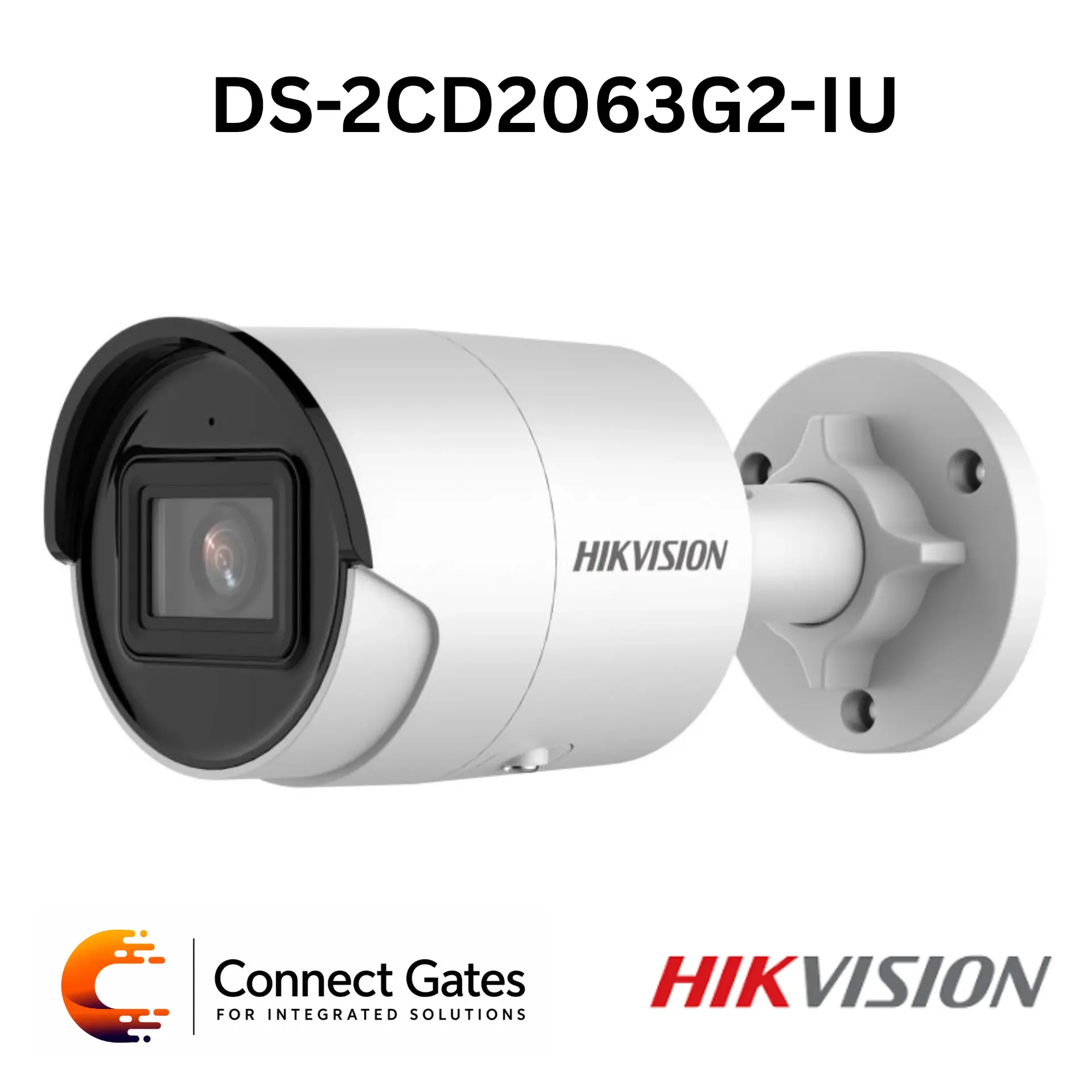

Hikvision DS-2CD2063G2-IU – 6MP AcuSense Fixed Bullet Network Camera with Built-in Microphone, IR, H.265+ & IP67
Overview:
The Hikvision DS-2CD2063G2-IU is a 6MP AcuSense Fixed Bullet Network Camera designed for professional indoor and outdoor surveillance. It provides 6MP high-resolution imaging, human and vehicle classification based on deep learning, 120 dB WDR, H.265+ compression, IR night vision up to 40 m, and built-in microphone for real-time audio security. The camera is also IP67 water and dust resistant, making it suitable for outdoor installations.
Key Features:
• 6MP high-quality imaging with up to 3200 × 1800 resolution
• AcuSense deep learning technology for human and vehicle classification
• Built-in microphone for real-time audio security
• 120 dB WDR for clear imaging against strong backlight
• Efficient H.265+ compression to reduce bandwidth and storage usage
• IR night vision up to 40 m with smart supplement light
• 2.8 mm, 4 mm and 6 mm fixed lens options
• Supports line crossing and intrusion detection with human/vehicle filtering
• Supports face detection
• Supports motion detection with human and vehicle classification
• Supports main stream, sub-stream and third stream
• Supports H.265, H.264, H.265+ and H.264+
• Built-in MicroSD card slot up to 512 GB
• Supports NAS storage and ANR
• Compatible with iVMS-4200, Hik-Connect and Hik-Central
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistance
• Compact bullet design with aluminum alloy body
Technical Specifications:
• Model: DS-2CD2063G2-IU
• Camera Type: 6MP AcuSense Fixed Bullet Network Camera
• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color 0.005 Lux @ F1.6, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm / 6 mm
• 2.8 mm FOV: Horizontal 105°, Vertical 55°, Diagonal 127°
• 4 mm FOV: Horizontal 78°, Vertical 38°, Diagonal 96°
• 6 mm FOV: Horizontal 51°, Vertical 26°, Diagonal 59°
• Lens Mount: M12
• Aperture: F1.6
• DORI 2.8 mm: Detect 76 m, Observe 30 m, Recognize 15 m, Identify 7 m
• DORI 4 mm: Detect 115 m, Observe 45 m, Recognize 23 m, Identify 11 m
• DORI 6 mm: Detect 164 m, Observe 65 m, Recognize 32 m, Identify 16 m
• Supplement Light: IR
• IR Range: Up to 40 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360°
• Main Stream: Up to 3200 × 1800 at 25/30 fps
• Sub Stream: Up to 1280 × 720
• Third Stream: Up to 1920 × 1080 at 10 fps
• Video Compression: H.265, H.264, H.264+, H.265+
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream and sub-stream
• Audio Type: Mono sound
• Built-in Microphone: Yes
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Environment Noise Filtering: Yes
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface Profile S/G/T, ISAPI, SDK, ISUP
• On-board Storage: MicroSD up to 512 GB
• Network Storage: NAS, NFS, SMB/CIFS, ANR
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Basic Event: Motion detection with human/vehicle classification, video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection and face detection
• Power Supply: 12V DC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: Max. 6 W by 12V DC / Max. 7.2 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Aluminum alloy body, plastic IR cover
• Protection: IP67
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 485 g
Applications:
• Outdoor entrances and gates
• Warehouses and factories
• Offices and corridors
• Retail stores
• Parking areas
• Villas and residential buildings
• General indoor and outdoor surveillance
• Sites requiring built-in audio monitoring
• Projects requiring human and vehicle detection
• Compact bullet camera installations
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD2063G2-IU for projects that need 6MP image quality, AcuSense smart detection, built-in microphone, and reliable outdoor protection in a compact bullet camera. It is suitable for gates, corridors, offices, warehouses, parking areas and outdoor locations where clear video, smart alarm filtering and real-time audio support are required.
