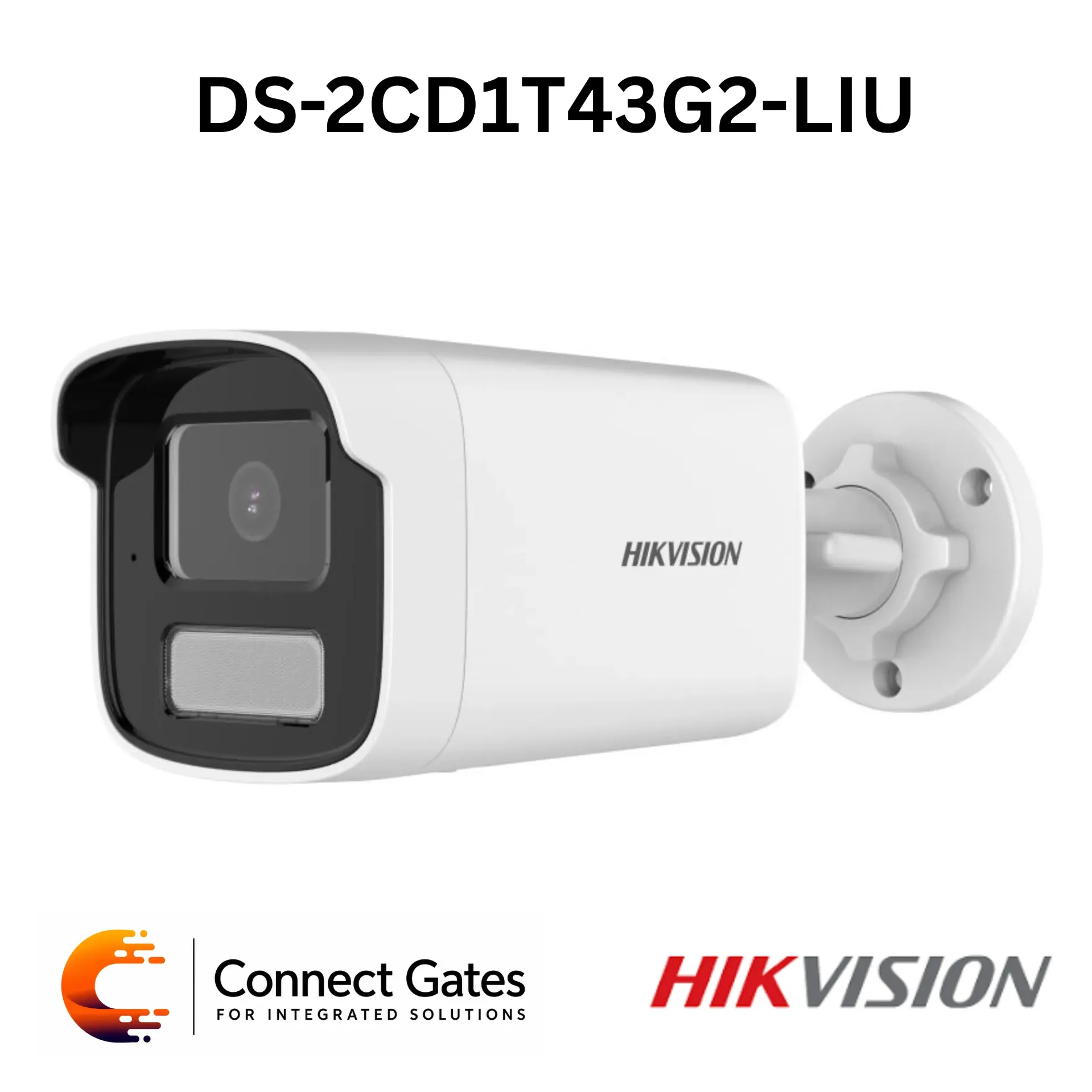

Hikvision DS-2CD1T43G2-LIU – 4MP Smart Hybrid Light Fixed Bullet Network Camera with Built-in Microphone, Human & Vehicle Detection, H.265+ & IP67
Overview:
The Hikvision DS-2CD1T43G2-LIU is a 4MP Fixed Bullet Network Camera designed for reliable indoor and outdoor surveillance. It supports Human and Vehicle Detection, Smart Hybrid Light with IR and white light up to 50 m, built-in microphone for real-time audio security, 120 dB WDR, H.265+ compression, and IP67 water and dust protection. The -F model supports on-board microSD storage up to 512 GB.
Key Features:
• 4MP high-quality imaging with up to 2560 × 1440 resolution
• Human and Vehicle Detection for accurate alarm filtering
• Smart Hybrid Light with IR and white light
• Supplement light range up to 50 m
• Built-in microphone for real-time audio security
• 120 dB WDR for clear imaging in strong backlight scenes
• Efficient H.265+ compression to reduce bandwidth and storage usage
• 4 mm and 6 mm fixed lens options
• Supports BLC, HLC and 3D DNR image enhancement
• Supports motion detection with human and vehicle target filtering
• Supports privacy mask with 4 programmable polygon masks
• Supports main stream and sub-stream
• Supports H.265+, H.265, H.264+ and H.264
• Built-in microSD card slot up to 512 GB on -F model
• Compatible with iVMS-4200 and Hik-Connect
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• Bullet design suitable for professional indoor and outdoor CCTV installations
Technical Specifications:
• Model: DS-2CD1T43G2-LIU
• Camera Type: 4MP Fixed Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color 0.005 Lux @ F1.6, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 4 mm / 6 mm
• 4 mm FOV: Horizontal 78°, Vertical 42°, Diagonal 93°
• 6 mm FOV: Horizontal 49°, Vertical 26°, Diagonal 57°
• Lens Mount: M12
• Aperture: F1.6
• DORI 4 mm: Detect 78 m, Observe 31 m, Recognize 15 m, Identify 7 m
• DORI 6 mm: Detect 128 m, Observe 50 m, Recognize 25 m, Identify 12 m
• Supplement Light: IR and White Light
• Supplement Light Range: Up to 50 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 180°, Rotate 0° to 360°
• Main Stream: Up to 2560 × 1440 at 20 fps
• Sub Stream: Up to 1280 × 720 / 640 × 480 / 640 × 360
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Built-in Microphone: Yes
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Environment Noise Filtering: Yes
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: ONVIF Profile S/T/G, ISAPI, SDK
• On-board Storage: microSD / microSDHC / microSDXC up to 512 GB on -F model
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect
• Basic Event: Motion detection with human/vehicle filtering, video tampering alarm, exception
• Power Supply: 12V DC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: Max. 6 W by 12V DC / Max. 7 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Metal and plastic
• Protection: IP67
• Dimensions: 83.7 mm × 80.7 mm × 205.6 mm
• Weight: Approx. 580 g
Applications:
• Outdoor entrances and gates
• Warehouses and factories
• Parking areas
• Shops and retail areas
• Offices and corridors
• Villas and residential buildings
• Perimeter monitoring points
• Indoor and outdoor surveillance
• Locations requiring built-in audio monitoring
• Projects requiring 4MP image quality and smart detection
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD1T43G2-LIU for projects that need a reliable 4MP bullet IP camera with Smart Hybrid Light, built-in microphone, Human & Vehicle Detection, 120 dB WDR, and IP67 outdoor protection. It is suitable for entrances, warehouses, factories, parking areas and general outdoor monitoring points where strong image quality and smart alarm filtering are required.
