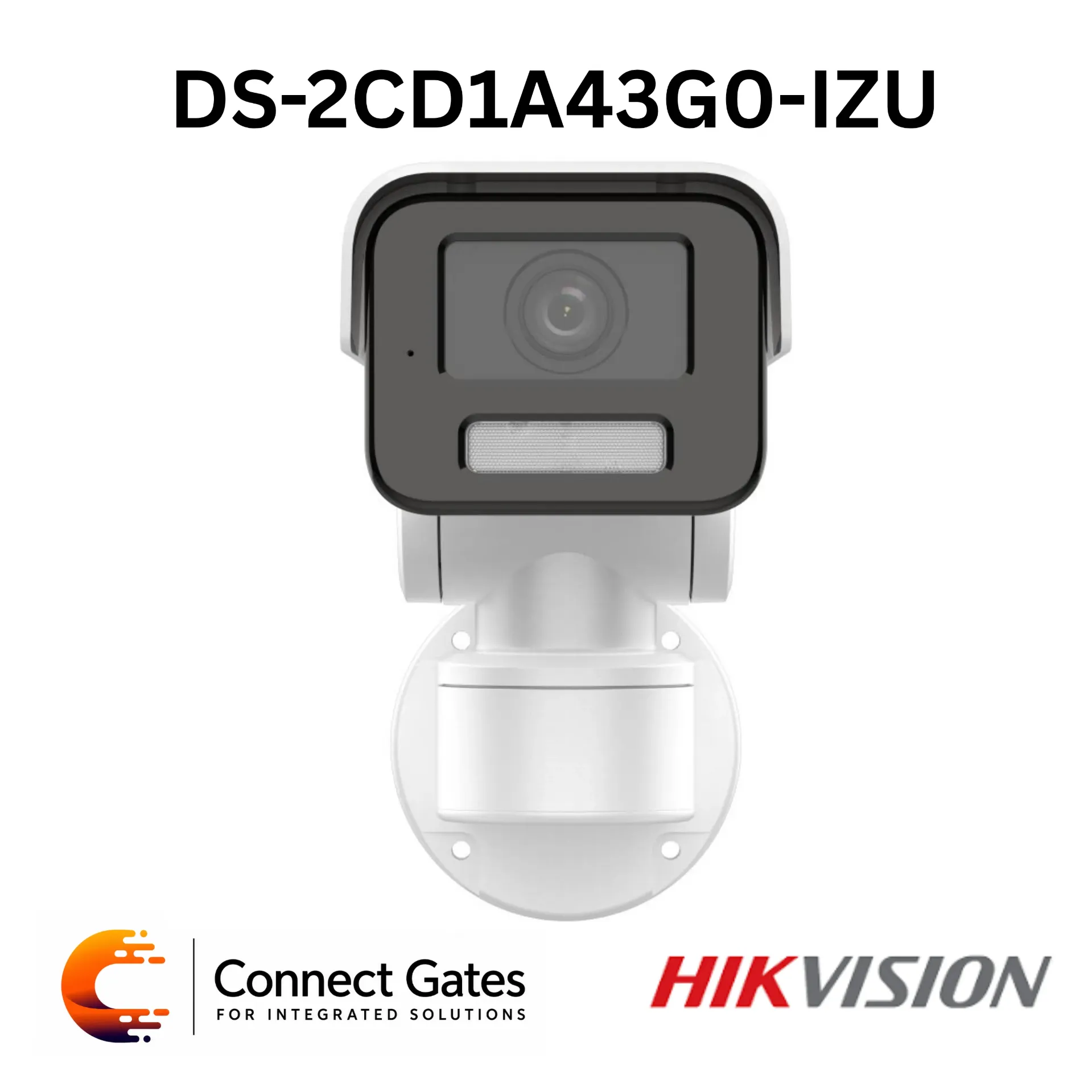

Hikvision DS-2CD1A43G0-IZU – 4MP Varifocal Bullet PT Network Camera with Motorized 2.8–12mm Lens, Pan/Tilt, 120dB WDR, IR 50m, 256GB SD Support & IP66
Overview:
• The Hikvision DS-2CD1A43G0-IZU is a 4MP Varifocal Bullet PT Network Camera designed for flexible indoor and outdoor IP surveillance systems.
• It delivers high-quality 4MP video resolution up to 2560 × 1440, suitable for gates, entrances, parking areas, warehouses, villas, compounds, and perimeter monitoring.
• The camera supports pan, tilt, and zoom ability, allowing wider area coverage compared to standard fixed bullet cameras.
• It features a motorized 2.8–12mm varifocal lens, enabling flexible viewing angle adjustment from wide coverage to focused monitoring.
• The camera supports H.265+ compression technology to reduce bandwidth and storage usage while maintaining strong video quality.
• With 120dB WDR, EXIR 2.0 infrared technology up to 50 meters, built-in microphone, onboard microSD storage up to 256GB, PoE support, and IP66 protection, it is a practical solution for projects requiring adjustable camera direction and reliable outdoor monitoring.
Key Features:
• 4MP Resolution: High-quality imaging with maximum resolution of 2560 × 1440.
• Pan & Tilt Function: Supports camera movement for wider and more flexible area coverage.
• Motorized Varifocal Lens: 2.8–12mm lens for flexible zoom and viewing angle adjustment.
• Bullet PT Design: Suitable for entrances, gates, outdoor corridors, parking areas, and perimeter monitoring.
• H.265+ Compression: Reduces bandwidth and storage consumption efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• EXIR 2.0 IR Technology: Provides infrared night vision up to 50 meters.
• Built-in Microphone: Supports real-time audio security.
• 256GB SD Card Support: Supports onboard microSD / microSDHC / microSDXC card up to 256GB.
• IP66 Protection: Water and dust resistant for outdoor installation.
• 3D DNR: Reduces image noise for clearer video quality.
• Privacy Mask: Supports 4 privacy mask regions.
• PoE Support: Supports IEEE 802.3af PoE for easier network installation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1A43G0-IZU
• Product Type: Varifocal Bullet PT Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Resolution: 4MP
• Min. Illumination: Color: 0.007 Lux @ F1.6, AGC ON; 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -100° to 100°, Tilt: -20° to 45°
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8mm to 12mm
• Field of View: Horizontal 96.7° to 29.7°, Vertical 51.7° to 16.7°, Diagonal 114.3° to 34°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: Max. F1.6
• DORI Wide: Detect 64m, Observe 25m, Recognize 12m, Identify 6m
• DORI Tele: Detect 200m, Observe 75m, Recognize 40m, Identify 20m
• Supplement Light Type: IR
• IR Range: Up to 50m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: 20 fps at 2560 × 1440; up to 25/30 fps at 1920 × 1080 and 1280 × 720
• Sub-Stream: 1280 × 720 / 640 × 480 / 640 × 360 up to 25/30 fps
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Supported
• Built-in Microphone: Supported
• Wide Dynamic Range: 120dB
• SNR: ≥ 52dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 privacy mask regions
• Image Settings: Mirror, saturation, brightness, contrast, sharpness, gain, white balance
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1X, SMTP
• API: ONVIF Profile S / Profile G, ISAPI, SDK
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: Built-in microSD / microSDHC / microSDXC card slot up to 256GB
• Reset Key: Supported
• Basic Events: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP / memory card, notify surveillance center, send email, trigger recording, trigger capture
• Power Supply: 12V DC ±25%, max. 11W
• PoE: IEEE 802.3af, Class 3, max. 12.5W
• Material: Front cover metal, body plastic, bracket plastic
• Dimensions: 197.1 × 105 × 225.4 mm
• Weight: Approx. 900g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP66
Applications:
• Indoor and outdoor IP CCTV systems
• Building entrances and gates
• Parking areas and outdoor corridors
• Warehouses and storage areas
• Villas and residential compounds
• Shops and commercial facilities
• Perimeter surveillance and long-view monitoring
• Projects requiring pan/tilt coverage with adjustable zoom
• Installations requiring built-in audio, SD card backup, PoE, and outdoor protection
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1A43G0-IZU for IP CCTV projects that need a 4MP bullet camera with pan/tilt flexibility and motorized zoom.
• It is suitable for entrances, gates, parking areas, warehouses, villas, outdoor corridors, and perimeter areas where wider camera movement is required.
• The camera offers strong value with 4MP resolution, pan/tilt function, 2.8–12mm motorized varifocal lens, 120dB WDR, IR up to 50m, built-in microphone, 256GB SD card support, and IP66 protection.
• For projects that need flexible direction adjustment without moving to a full PTZ camera, this model is a practical option.
• For projects requiring full 360° PTZ movement, optical zoom range, presets, or auto tracking, Connect Gates recommends choosing a dedicated Hikvision PTZ camera.
