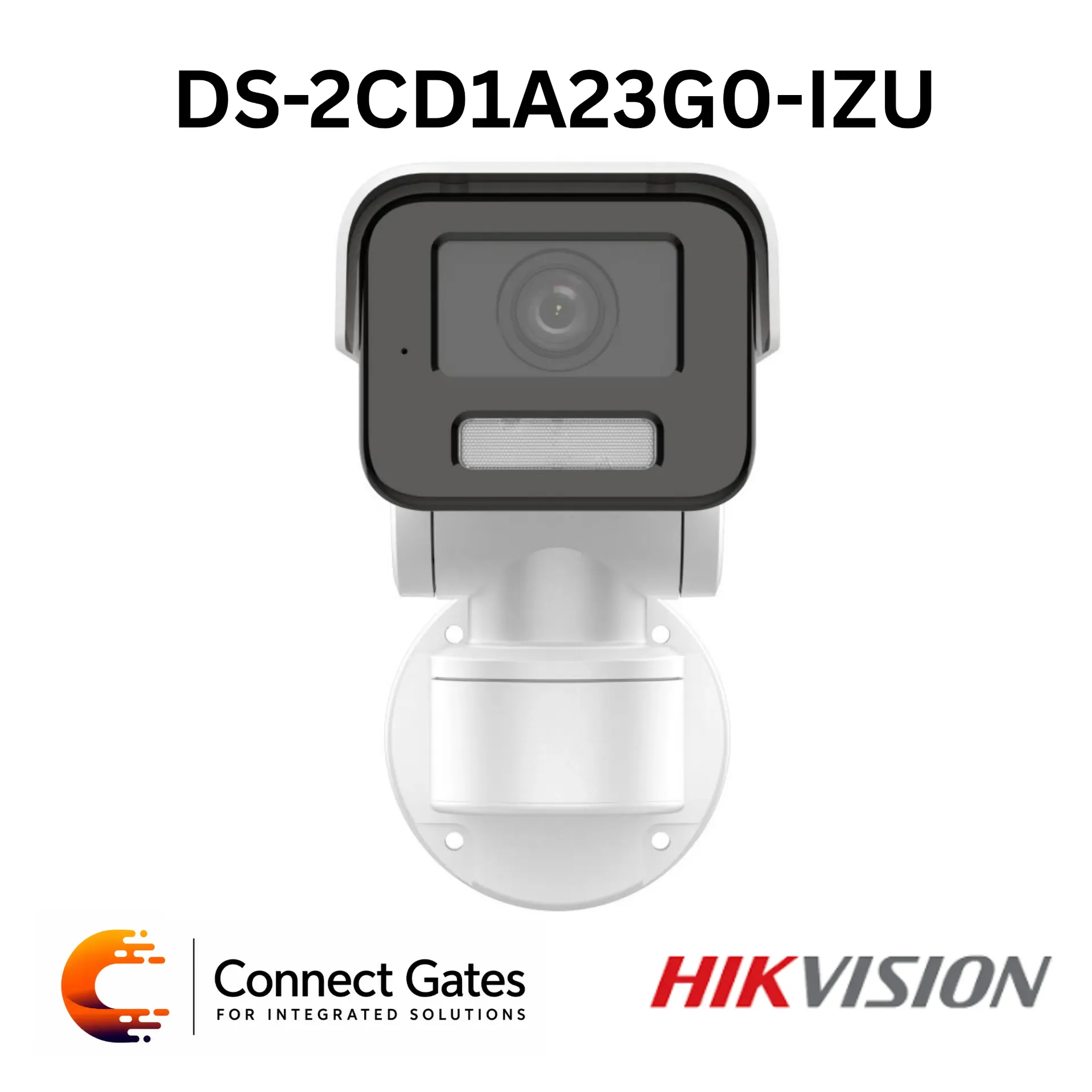

Hikvision DS-2CD1A23G0-IZU – 2MP Varifocal Bullet PT Network Camera with Motorized 2.8–12mm Lens, Pan/Tilt, 50m EXIR 2.0 IR, Built-in Mic, 120dB WDR, H.265+, PoE & IP66
Overview:
• The Hikvision DS-2CD1A23G0-IZU is a 2MP varifocal bullet PT network camera designed for flexible indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• The camera supports pan and tilt adjustment, allowing wider area coverage and more flexible viewing direction compared to standard fixed bullet cameras.
• The motorized varifocal 2.8 to 12 mm lens provides adjustable viewing from wide-angle coverage to focused longer-distance monitoring.
• EXIR 2.0 advanced infrared technology provides long IR night vision up to 50 meters.
• Built-in microphone provides real-time audio security for locations where audio evidence is required.
• 120 dB WDR helps improve image clarity in strong backlight and mixed lighting conditions.
• H.265+ compression helps reduce bandwidth and storage usage while maintaining efficient recording performance.
• With on-board microSD storage up to 256GB, PoE support, IP66 protection, BLC, HLC, 3D DNR, privacy mask, and practical PT bullet design, it is suitable for entrances, gates, yards, warehouses, parking areas, villas, factories, loading areas, and outdoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• PT Bullet Design: Supports pan and tilt movement for flexible area coverage.
• Motorized Varifocal Lens: 2.8 to 12 mm lens allows wide or focused monitoring.
• Wide-to-Tele Coverage: Horizontal FOV from 106.9° to 32.3°.
• 50m EXIR 2.0 IR: Advanced infrared night vision up to 50 m.
• Built-in Microphone: Supports real-time audio security.
• 120dB WDR: Clear imaging in strong backlight scenes.
• H.265+ Compression: Reduces bandwidth and storage usage.
• BLC / HLC / 3D DNR: Enhances image clarity and reduces video noise.
• microSD Storage: Supports local storage up to 256GB.
• Privacy Mask: Supports 4 privacy mask regions.
• ROI Support: Supports 1 fixed region for main stream.
• PoE Support: Power and data through one network cable.
• IP66 Protection: Water and dust resistant for outdoor installation.
• Hik-Connect Support: Enables remote viewing and easier system management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1A23G0-IZU
• Product Type: 2MP Varifocal Bullet PT Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.007 Lux @ F1.6, AGC ON; 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -100° to 100°, Tilt: -20° to 45°
• Lens Type: Varifocal motorized lens
• Lens Range: 2.8 mm to 12 mm
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: Max. F1.6
• Field of View: Horizontal 106.9° to 32.3°, Vertical 56.4° to 18.2°, Diagonal 127.9° to 37°
• DORI – Wide: Detect 44 m, Observe 17 m, Recognize 8 m, Identify 4 m
• DORI – Tele: Detect 136 m, Observe 54 m, Recognize 27 m, Identify 13 m
• Supplement Light Type: IR
• IR Range: Up to 50 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265+ / H.265 / H.264+ / H.264
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR / VBR
• Region of Interest: 1 fixed region for main stream
• Audio Type: Mono sound
• Built-in Microphone: Yes
• Audio Sampling Rate: 8 kHz / 16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Bitrate: 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC-LC
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, HTTP/HTTPS authentication, WSSE and ONVIF digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication
• Simultaneous Live View: Up to 6 channels
• API: ONVIF Profile S / Profile G, ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1X, SMTP
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10 / IE 11 with plug-in; Chrome 57.0+ / Firefox 52.0+ using local service
• Wide Dynamic Range: 120 dB WDR
• SNR: ≥52 dB
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Enhancement: BLC / HLC / 3D DNR
• Image Settings: Mirror, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Privacy Mask: 4 regions of privacy mask
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports microSD / microSDHC / microSDXC card up to 256GB
• Reset Key: Yes
• Basic Event: Motion detection, video tampering alarm, exception
• Event Linkage: Upload to FTP / memory card, notify surveillance center, send email, trigger recording, trigger capture
• Power Supply: 12 VDC ±25%, 0.91A, max. 11W
• PoE: IEEE 802.3af, Class 3, 36V to 57V, 0.34A to 0.21A, max. 12.5W
• Power Interface: Ø5.5 mm coaxial power plug with reverse polarity protection
• Material: Front cover metal, body plastic, bracket plastic
• Dimensions: 197.1 mm × 105 mm × 225.4 mm
• Package Dimensions: 300 mm × 266 mm × 172 mm
• Weight: Approx. 900 g
• With Package Weight: Approx. 1520 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Password Protection, Password Reset via Email
• Language: English, Ukrainian
• Protection Rating: IP66
• Anti-Corrosion Level: No specific protection
• Available Model: DS-2CD1A23G0-IZU 2.8 mm to 12 mm
Applications:
• Outdoor entrances
• Building gates
• Factory gates
• Warehouses
• Loading areas
• Parking areas
• Villas and homes
• Outdoor corridors
• Yards and open areas
• Perimeter monitoring
• Small and medium business CCTV systems
• Areas requiring adjustable viewing angle
• Sites requiring varifocal zoom coverage
• Outdoor points requiring long IR distance
• Locations requiring audio monitoring
• Areas with strong backlight conditions
• Projects requiring local microSD recording
• Projects requiring PoE installation
• Outdoor installations requiring IP66 protection
Connect Gates Recommendation:
• Recommended for projects that need more flexibility than standard fixed bullet cameras, especially where the viewing angle may need adjustment after installation.
• The motorized 2.8 to 12 mm varifocal lens makes it suitable for entrances, gates, yards, warehouses, loading areas, parking points, and focused outdoor monitoring.
• The PT design adds practical pan and tilt adjustment, making it useful for covering larger or changing areas without replacing the camera position.
• 50 m EXIR 2.0 IR makes it suitable for wider outdoor spaces and longer night monitoring compared to standard 30 m IR cameras.
• 120 dB WDR is useful for difficult lighting areas such as gates, open entrances, loading zones, and locations facing sunlight.
• The built-in microphone and 256GB microSD storage add value for audio evidence and backup recording.
• Best suited for customers who need a Hikvision 2MP varifocal PT bullet camera with motorized zoom, pan/tilt flexibility, long IR range, built-in audio, local storage, PoE, IP66 protection, and efficient H.265+ recording.
