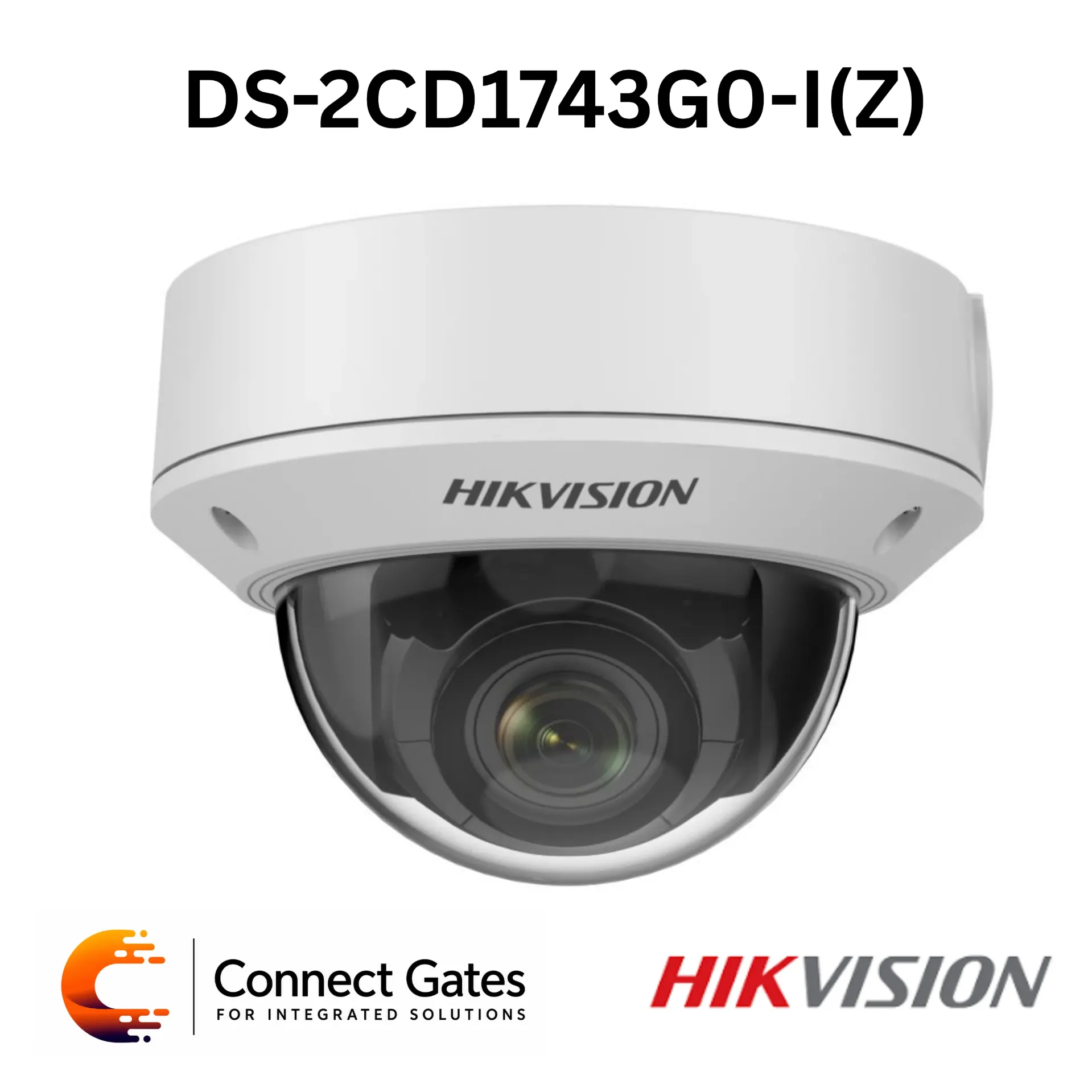

Hikvision DS-2CD1743G0-IZ – 4MP Varifocal Dome Network Camera with Motorized 2.8–12mm Lens, 120dB WDR, EXIR 30m, 256GB SD Support, IP67, IK10 & PoE
Overview:
• The Hikvision DS-2CD1743G0-IZ is a 4MP Varifocal Dome Network Camera designed for flexible indoor and outdoor IP surveillance systems.
• It delivers high-quality 4MP video resolution up to 2560 × 1440, suitable for entrances, corridors, offices, shops, villas, schools, warehouses, and public areas.
• The camera features a motorized 2.8–12mm varifocal lens, allowing easy adjustment of viewing angle and zoom during installation.
• It supports efficient H.265+ compression technology to reduce bandwidth and storage usage while maintaining strong video quality.
• The camera provides clear imaging in strong backlight environments using 120dB WDR, with BLC and 3D DNR image enhancement.
• With EXIR 2.0 infrared technology up to 30 meters, onboard microSD card support up to 256GB, PoE support, metal housing, IP67 weather protection, and IK10 vandal resistance, it is a strong dome camera solution for projects requiring adjustable coverage and durable protection.
Key Features:
• 4MP Resolution: High-quality imaging with maximum resolution of 2560 × 1440.
• Motorized Varifocal Lens: 2.8–12mm lens for flexible zoom and viewing angle adjustment.
• Dome Camera Design: Suitable for entrances, corridors, offices, shops, schools, and public areas.
• H.265+ Compression: Reduces bandwidth and storage consumption efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• EXIR 2.0 IR Technology: Provides infrared night vision up to 30 meters.
• 256GB SD Card Support: Supports onboard microSD card storage up to 256GB.
• IP67 Protection: Water and dust resistant for outdoor installation.
• IK10 Vandal Resistance: Strong vandal-proof dome housing for exposed locations.
• 3D DNR: Reduces image noise for clearer video quality.
• BLC Support: Improves visibility in backlight conditions.
• PoE Support: Supports IEEE 802.3af PoE for easier network installation.
• Audio/Alarm Option: The DS-2CD1743G0-IZS version supports audio input/output and alarm input/output.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1743G0-IZ
• Product Type: Varifocal Dome Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Resolution: 4MP
• Min. Illumination: Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Wide Dynamic Range: 120dB
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 70°, Rotation: 0° to 355°
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8mm to 12mm
• Field of View: Horizontal 102° to 31°, Vertical 54° to 17°, Diagonal 123° to 35°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• IR Range: Up to 30m
• IR Wavelength: 850nm
• Main Stream: 20 fps at 2560 × 1440; up to 25/30 fps at 1920 × 1080 and 1280 × 720
• Sub-Stream: 1280 × 720 / 640 × 480 / 640 × 360 up to 25/30 fps
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• ROI: 1 fixed region for main stream
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• API: Open Network Video Interface, ISAPI
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance
• Day / Night Switch: Auto, Schedule, Day, Night
• Image Enhancement: BLC, 3D DNR
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: Built-in microSD card slot up to 256GB
• Network Storage: microSD / SDHC / SDXC card up to 256GB local storage
• Reset Key: Supported
• Basic Events: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
• Audio Interface: Available in -S model: 1 input and 1 output
• Alarm Interface: Available in -S model: 1 input and 1 output
• Power Supply: 12V DC ±25%, max. 10W
• PoE: IEEE 802.3af, Class 3, max. 11.5W
• Power Interface: Ø5.5mm coaxial power plug
• Camera Material: Metal
• Dimensions: Ø141 × 99.9 mm
• Weight: Approx. 820g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67 / IK10
Applications:
• Indoor and outdoor IP CCTV systems
• Offices and administrative areas
• Shops and retail branches
• Villas and residential buildings
• Schools, clinics, and public areas
• Warehouses and storage areas
• Entrances, corridors, and parking areas
• Projects requiring adjustable dome camera coverage
• Installations requiring vandal-resistant housing, SD card backup, PoE, and reliable outdoor protection
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1743G0-IZ for IP CCTV projects that need a 4MP dome camera with adjustable viewing angle and strong vandal-resistant protection.
• It is suitable for entrances, corridors, schools, offices, shops, villas, parking areas, and public locations where dome design and zoom adjustment are required.
• The camera offers strong value with motorized 2.8–12mm varifocal lens, 4MP resolution, 120dB WDR, EXIR 30m IR, H.265+ compression, 256GB SD card support, IP67, and IK10.
• For projects requiring audio or alarm input/output, Connect Gates recommends selecting the DS-2CD1743G0-IZS version.
• For projects requiring smart human/vehicle detection, Connect Gates recommends choosing an AcuSense dome model.
