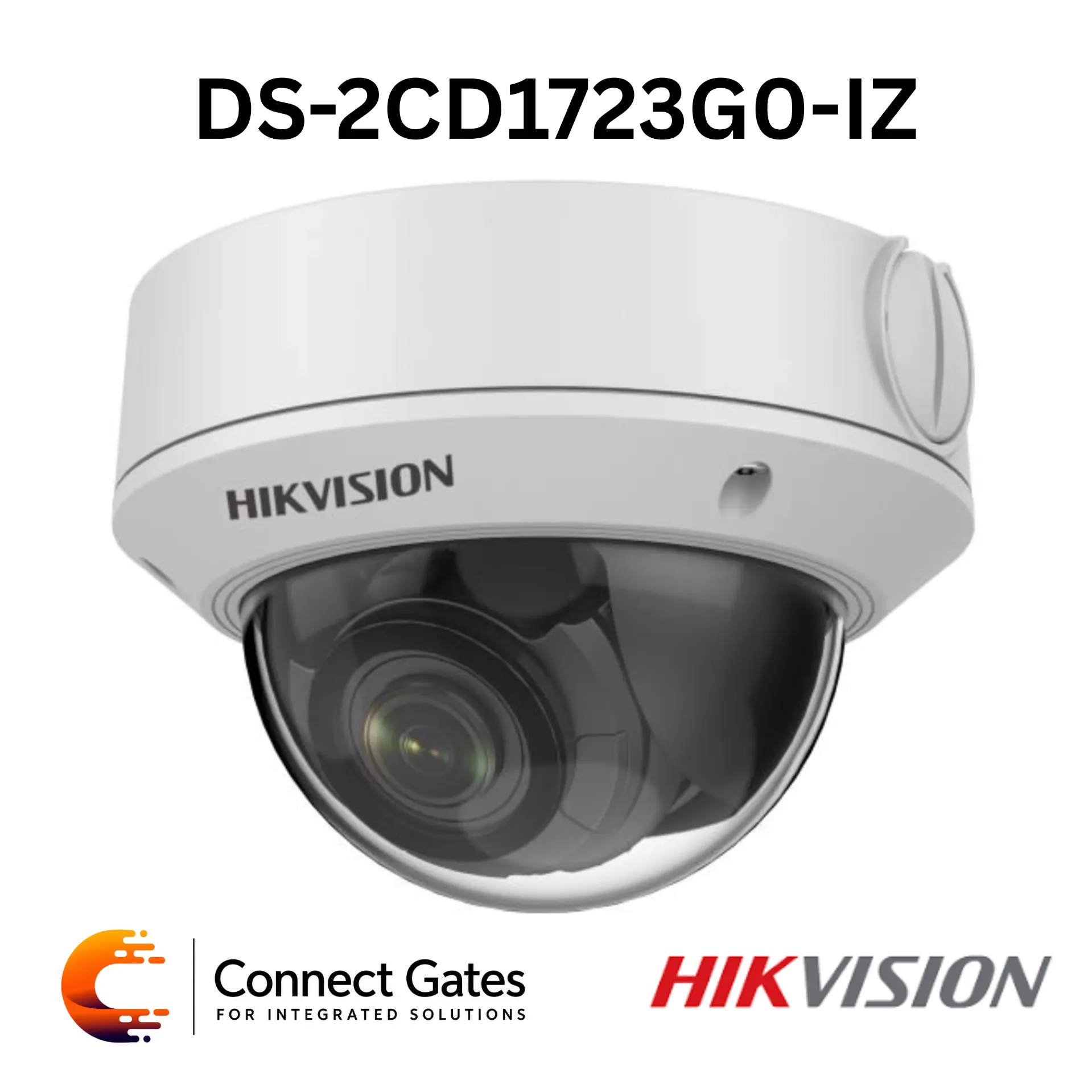

Hikvision DS-2CD1723G0-IZ – 2MP Motorized Varifocal Dome Network Camera with EXIR 2.0, DWDR, H.265+ & IP67/IK10
Overview:
The Hikvision DS-2CD1723G0-IZ is a 2MP Motorized Varifocal Dome Network Camera designed for flexible indoor and outdoor surveillance. It provides Full HD 1920 × 1080 imaging, 2.8–12 mm motorized varifocal lens, EXIR 2.0 infrared technology, IR night vision up to 30 m, DWDR, H.265+ compression, microSD storage up to 256 GB, and durable IP67 weather protection with IK10 vandal resistance.
Key Features:
• 2MP Full HD imaging with up to 1920 × 1080 resolution
• Motorized varifocal lens 2.8–12 mm for easy installation and monitoring
• EXIR 2.0 infrared technology for improved night vision performance
• IR night vision up to 30 m
• Digital WDR for improved imaging in backlight scenes
• Efficient H.265+ compression to reduce bandwidth and storage usage
• Built-in microSD card slot up to 256 GB
• Supports BLC and 3D DNR image enhancement
• Supports main stream and sub-stream
• Supports H.265+, H.265, H.264+ and H.264
• Supports motion detection, video tampering alarm and exception events
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• IK10 vandal-resistant protection
• -S version supports audio input/output and alarm input/output
• Professional dome design suitable for exposed installation areas
Technical Specifications:
• Model: DS-2CD1723G0-IZ
• Camera Type: 2MP Varifocal Dome Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color 0.005 Lux @ F1.6, B/W 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR Cut Filter
• WDR: Digital WDR
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8 mm to 12 mm
• Horizontal FOV: 96° to 36°
• Vertical FOV: 51° to 20°
• Diagonal FOV: 113° to 42°
• Lens Mount: Ø14
• Aperture: F1.6
• Supplement Light: IR
• IR Range: Up to 30 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 355°, Tilt 0° to 70°, Rotate 0° to 355°
• Main Stream: Up to 1920 × 1080 at 25/30 fps
• Sub Stream: Up to 640 × 480 / 640 × 360
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• ROI: 1 fixed region for main stream
• Image Enhancement: BLC, 3D DNR
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface, ISAPI
• On-board Storage: MicroSD card up to 256 GB
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect
• Basic Event: Motion detection, video tampering alarm, exception
• Audio: 1 input / 1 output on -S version
• Alarm: 1 input / 1 output on -S version
• Power Supply: 12V DC ±25% / PoE 802.3af Class 3
• Power Consumption: Max. 10 W by 12V DC / Max. 11.5 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Protection: IP67, IK10
• Dimensions: Ø141 mm × 99.9 mm
• Weight: Approx. 820 g
Applications:
• Offices and administrative buildings
• Shops and retail areas
• Entrances and corridors
• Warehouses and small factories
• Parking areas
• Villas and residential buildings
• Indoor and outdoor surveillance
• Sites requiring motorized lens adjustment
• Locations requiring vandal-resistant dome cameras
• General CCTV points requiring flexible viewing angle
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD1723G0-IZ for projects that need a reliable 2MP dome IP camera with motorized varifocal lens, EXIR night vision, DWDR, and strong IP67/IK10 protection. It is suitable for entrances, corridors, shops, offices, warehouses and outdoor points where flexible lens adjustment and stable image quality are required.
