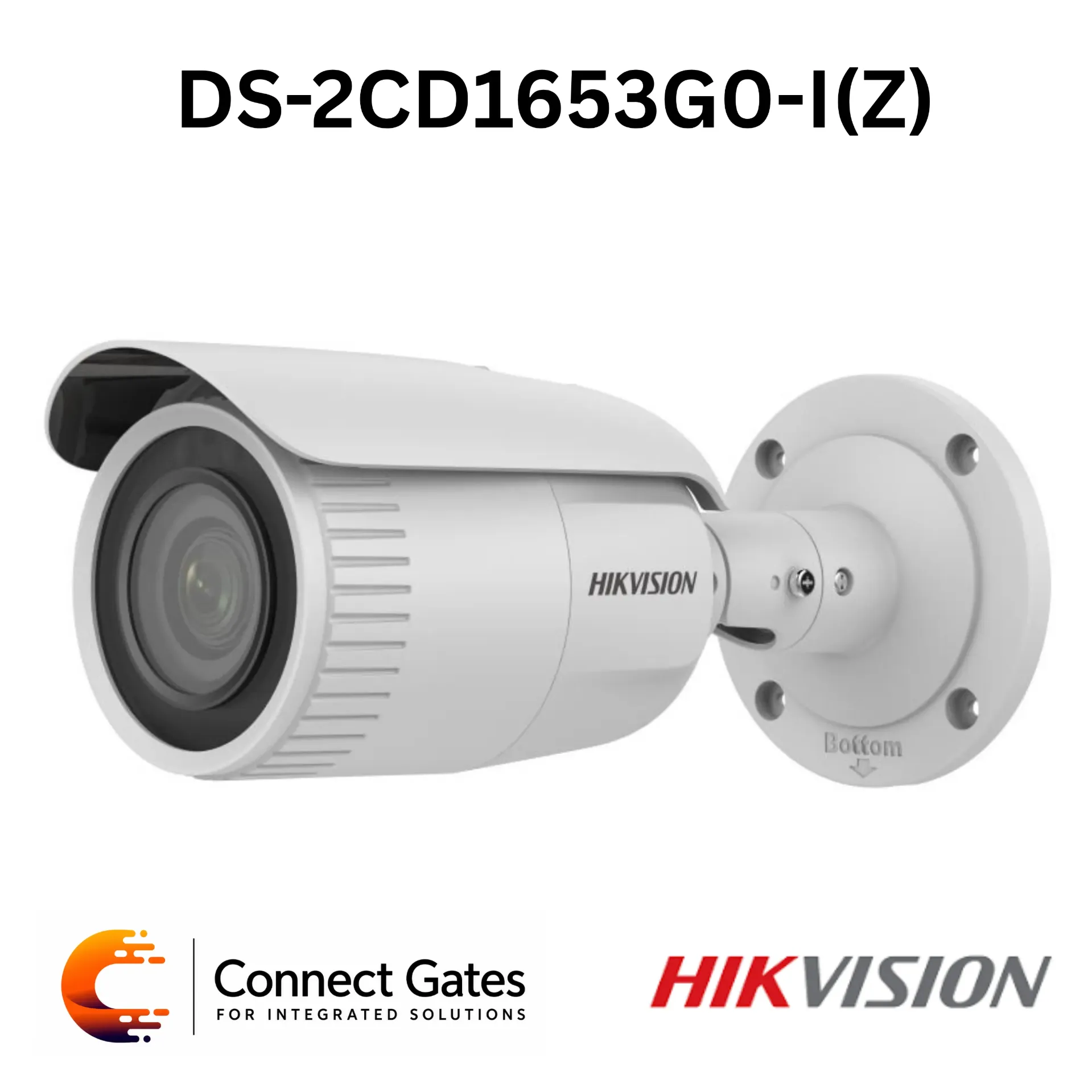

Hikvision DS-2CD1653G0-IZ – 5MP IR Varifocal Network Bullet Camera with Motorized 2.8–12mm Lens, 120dB WDR, IR 30m, 128GB SD Support & IP67
Overview:
• The Hikvision DS-2CD1653G0-IZ is a 5MP IR Varifocal Network Bullet Camera designed for flexible indoor and outdoor IP surveillance systems.
• It delivers high-quality 5MP video resolution up to 2560 × 1920, making it suitable for entrances, gates, parking areas, warehouses, villas, shops, and perimeter monitoring.
• The camera features a 2.8–12mm varifocal lens, giving flexible coverage from wide viewing to more focused monitoring.
• The -Z model supports auto focus, making lens adjustment easier during installation and commissioning.
• It supports H.265+ compression technology to reduce bandwidth and storage usage while maintaining efficient video quality.
• With 120dB WDR, 3D DNR, IR illumination up to 30 meters, onboard microSD storage up to 128GB, PoE support, metal body, and IP67 protection, it is a reliable bullet camera solution for projects requiring adjustable lens coverage.
Key Features:
• 5MP Resolution: High-quality imaging with maximum resolution of 2560 × 1920.
• Varifocal Lens: 2.8–12mm lens for flexible viewing angle adjustment.
• Auto Focus: The -Z model supports auto focus for easier installation.
• Bullet Camera Design: Suitable for outdoor corridors, entrances, gates, parking areas, and perimeter monitoring.
• H.265+ Compression: Reduces bandwidth and storage consumption efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• IR Night Vision: Provides infrared illumination up to 30 meters.
• 128GB SD Card Support: Supports onboard microSD / SDHC / SDXC card up to 128GB.
• IP67 Protection: Water and dust resistant for outdoor installation.
• 3D DNR: Reduces image noise for clearer video quality.
• BLC Support: Improves visibility in backlight conditions.
• ROI Support: Supports one fixed region for main stream and sub-stream.
• PoE Support: Supports IEEE 802.3af PoE for easier network installation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1653G0-IZ
• Product Type: IR Varifocal Network Bullet Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 2560 × 1920
• Resolution: 5MP
• Min. Illumination: Color: 0.01 Lux @ F1.2, AGC ON; 0.02 Lux @ F1.6, AGC ON
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Supported
• Day & Night: IR cut filter
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: 120dB
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 100°, Rotate: 0° to 360°
• Lens Type: Varifocal lens
• Focal Length: 2.8mm to 12mm
• Focus: Auto focus with -Z model, manual focus without -Z model
• Field of View: Horizontal 98° to 28°, Vertical 71° to 21°, Diagonal 130° to 35°
• Lens Mount: Ø14
• Aperture: F1.6
• IR Range: Up to 30m
• IR Wavelength: 850nm
• Main Stream: 12.5/15 fps at 2560 × 1920; 20 fps at 2560 × 1440; up to 25/30 fps at 2304 × 1296, 1920 × 1080, and 1280 × 720
• Sub-Stream: 640 × 480 / 640 × 360 / 320 × 240 up to 25/30 fps
• Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG
• H.264+: Main stream supported
• H.265+: Main stream supported
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• ROI: 1 fixed region for main stream and sub-stream
• Image Enhancement: BLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software and web browser
• Day / Night Switch: Auto, Scheduled, Day, Night
• Network Storage: microSD / SDHC / SDXC up to 128GB, NAS, ANR
• Alarm Triggers: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1X
• API: ONVIF Profile S / Profile G, ISAPI
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: Built-in microSD / SDHC / SDXC slot up to 128GB
• Video Output: 1 Vp-p composite output available without -Z model
• Reset Button: Supported
• Power Supply: 12V DC ±25%
• PoE: IEEE 802.3af, Class 3
• Power Consumption: With -Z model: max. 11W via DC, max. 12.9W via PoE
• Material: Metal camera body and bracket, plastic sunshield
• Dimensions: 105 × 244.4 mm
• Weight: Approx. 700g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67
Applications:
• Indoor and outdoor IP CCTV systems
• Building entrances and gates
• Parking areas and outdoor corridors
• Warehouses and storage areas
• Villas and residential compounds
• Shops and commercial facilities
• Perimeter surveillance and long-view monitoring
• Projects requiring adjustable lens coverage
• Installations requiring varifocal bullet design, SD card backup, PoE, and IP67 outdoor protection
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1653G0-IZ for IP CCTV projects that need 5MP image quality with adjustable viewing angle.
• It is suitable for entrances, gates, warehouses, parking areas, outdoor corridors, villas, shops, and perimeter monitoring where lens flexibility is important.
• The camera offers strong value with 5MP resolution, 2.8–12mm varifocal lens, auto focus in -Z model, 120dB WDR, H.265+ compression, IR up to 30m, 128GB SD card support, and IP67 protection.
• For projects requiring easier installation and fine lens adjustment, Connect Gates recommends selecting the -IZ motorized/auto-focus version.
• For projects requiring smart human/vehicle detection, Connect Gates recommends choosing an AcuSense model.
