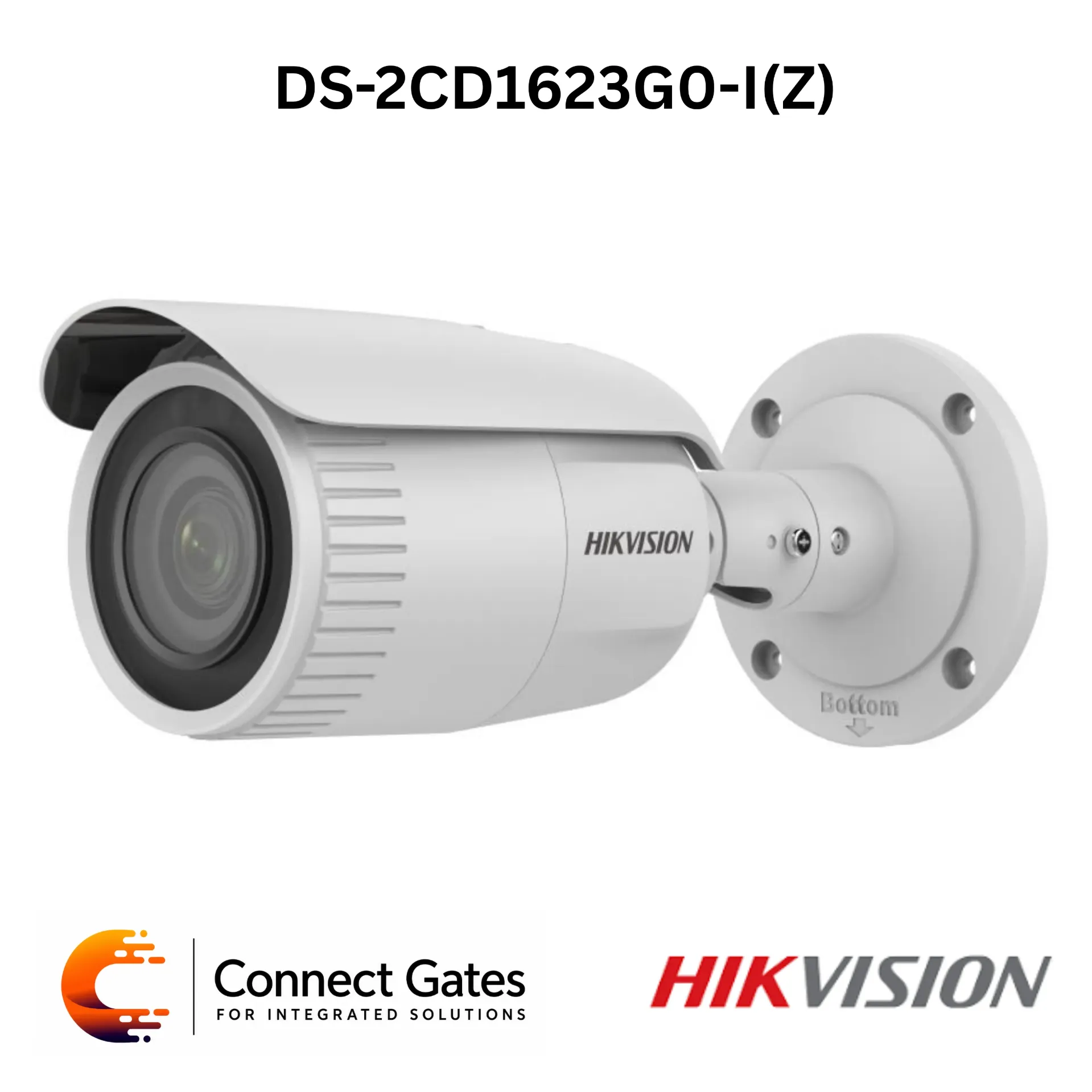

Hikvision DS-2CD1623G0-IZ – 2MP Varifocal Bullet Network Camera with Motorized 2.8–12mm Lens, EXIR 50m, DWDR, 256GB SD Support & IP67
Overview:
• The Hikvision DS-2CD1623G0-IZ is a 2MP Varifocal Bullet Network Camera designed for flexible indoor and outdoor IP surveillance systems.
• It delivers Full HD video resolution up to 1920 × 1080, suitable for general monitoring, entrances, corridors, warehouses, gates, and perimeter areas.
• The camera features a motorized varifocal 2.8–12mm lens, allowing easy adjustment of viewing angle and zoom according to the installation requirement.
• It supports efficient H.265+ compression technology to reduce bandwidth and storage usage while maintaining reliable video quality.
• The camera provides clear imaging in backlight scenes using Digital WDR, with BLC and 3D DNR image enhancement.
• With EXIR 2.0 infrared technology up to 50 meters, onboard microSD card support up to 256GB, PoE support, and IP67 protection, it is a practical solution for projects that need adjustable viewing range and reliable outdoor performance.
Key Features:
• 2MP Resolution: High-quality Full HD imaging with maximum resolution of 1920 × 1080.
• Motorized Varifocal Lens: 2.8–12mm lens for flexible zoom and viewing angle adjustment.
• Bullet Camera Design: Suitable for outdoor perimeter, gates, entrances, corridors, and long-view monitoring.
• H.265+ Compression: Reduces bandwidth and storage consumption efficiently.
• Digital WDR: Improves image clarity in scenes with strong backlight.
• EXIR 2.0 IR Technology: Provides infrared night vision up to 50 meters.
• SD Card Storage: Supports onboard microSD card storage up to 256GB.
• IP67 Protection: Water and dust resistant for outdoor installation.
• 3D DNR: Reduces image noise for clearer video quality.
• BLC Support: Improves visibility in backlight conditions.
• ROI Support: Supports one fixed region of interest for the main stream.
• PoE Support: Supports 802.3af PoE for easier network installation.
• Hik-Connect Support: Compatible with Hik-Connect and iVMS-4200 client software.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1623G0-IZ
• Product Type: Varifocal Bullet Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Resolution: 2MP
• Min. Illumination: Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Wide Dynamic Range: Digital WDR
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8mm to 12mm
• Field of View: Horizontal 96° to 36°, Vertical 51° to 20°, Diagonal 113° to 42°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• IR Wavelength: 850nm
• IR Range: Up to 50m
• Main Stream: 25 fps at 1920 × 1080 / 1280 × 720 at 50Hz; 30 fps at 1920 × 1080 / 1280 × 720 at 60Hz
• Sub-Stream: 640 × 480 / 640 × 360 up to 25/30 fps
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• ROI: 1 fixed region for main stream
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+, Chrome 57.0+, Firefox 52.0+
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance
• Day / Night Switch: Auto, Schedule, Day, Night
• Image Enhancement: BLC, 3D DNR
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: microSD card slot up to 256GB
• Reset Key: Supported
• Basic Events: Motion detection, video tampering alarm, exception
• Power Supply: 12V DC ±25%, max. 11W
• PoE: IEEE 802.3af, Class 3, max. 12.9W
• Dimensions: Ø105 × 244.4 mm
• Weight: Approx. 1035g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67
Applications:
• Indoor and outdoor IP CCTV systems
• Building entrances and gates
• Parking areas and outdoor corridors
• Warehouses and storage areas
• Villas and residential compounds
• Shops and commercial facilities
• Perimeter surveillance and long-view monitoring
• Projects requiring adjustable lens coverage
• Installations requiring SD card backup and PoE connectivity
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1623G0-IZ for projects that need a reliable 2MP bullet camera with flexible viewing angle and long IR range.
• It is suitable for entrances, gates, warehouses, outdoor corridors, parking areas, and perimeter monitoring where zoom adjustment is important during installation.
• The camera offers strong value with motorized 2.8–12mm varifocal lens, EXIR 50m IR, H.265+ compression, DWDR, 256GB SD card support, and IP67 protection.
• For projects that need audio or alarm input/output, Connect Gates recommends checking the DS-2CD1623G0-IZS version.
• For higher image detail, Connect Gates recommends choosing a 4MP or 5MP model depending on the required coverage and project budget.
