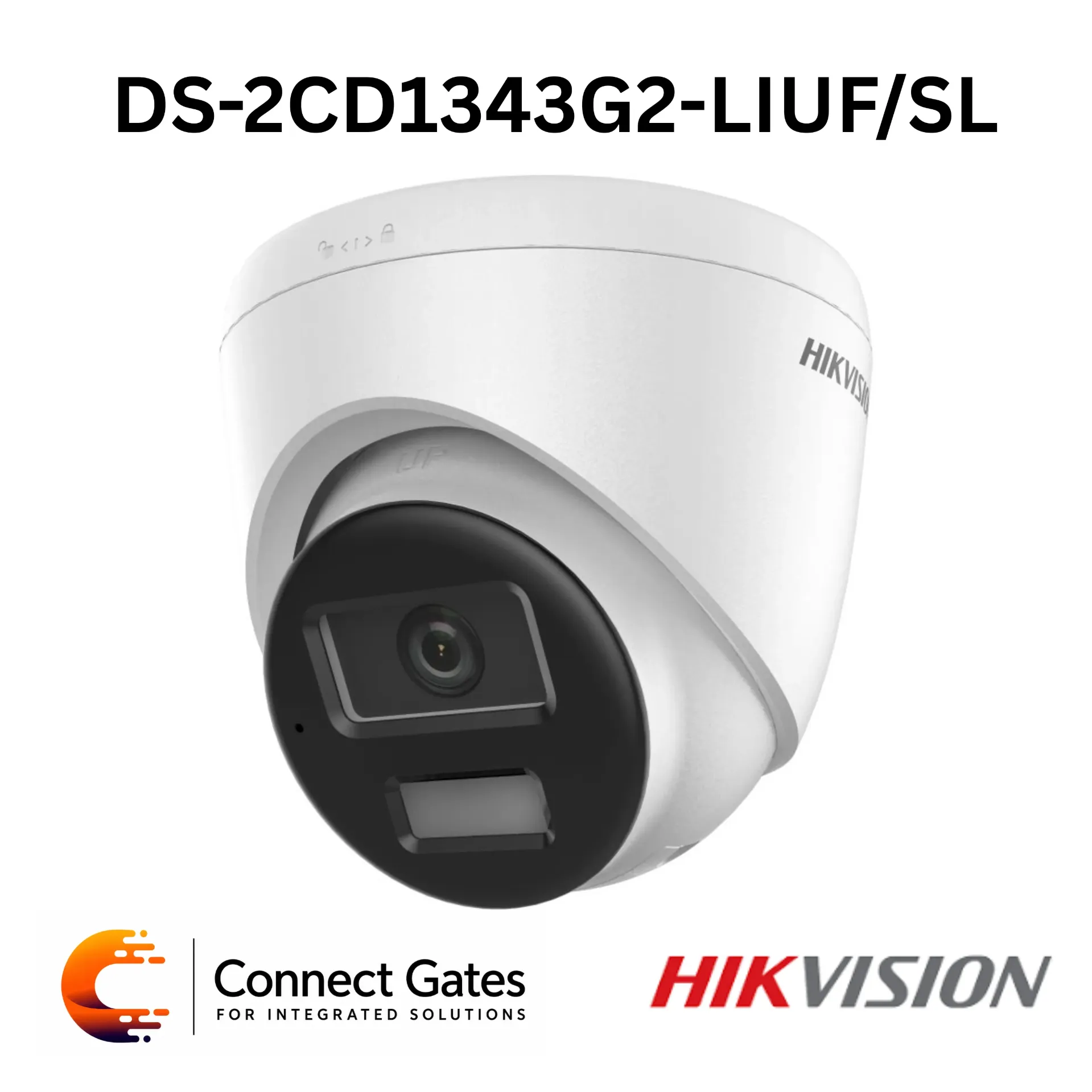

Hikvision DS-2CD1343G2-LIUF/SL – 4MP Smart Hybrid Light Fixed Turret Network Camera with Two-Way Audio, Human & Vehicle Detection, H.265+ & IP67
Overview:
The Hikvision DS-2CD1343G2-LIUF/SL is a 4MP Fixed Turret Network Camera designed for clear indoor and outdoor surveillance. It supports Human and Vehicle Detection, Smart Hybrid Light with IR and white light, H.265+ compression, on-board storage up to 512 GB, and built-in two-way audio for real-time security communication. The camera also includes flashing light warning and IP67 water and dust protection, making it suitable for professional CCTV installations.
Key Features:
• 4MP high-quality imaging with up to 2560 × 1440 resolution
• Human and Vehicle Detection for accurate event filtering
• Smart Hybrid Light technology with IR and white light
• Supplement light range up to 30 m
• Built-in microphone and built-in speaker for two-way audio
• Flashing light warning for active deterrence
• Efficient H.265+ compression to reduce bandwidth and storage usage
• Built-in MicroSD card slot up to 512 GB
• 120 dB WDR for clear images in strong backlight scenes
• Supports BLC, HLC and 3D DNR image enhancement
• 2.8 mm and 4 mm fixed lens options
• Supports motion detection with human and vehicle target filtering
• Supports audible warning and flashing light linkage
• Compatible with iVMS-4200 and Hik-Connect
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• Compact turret design suitable for indoor and outdoor installations
Technical Specifications:
• Model: DS-2CD1343G2-LIUF/SL
• Camera Type: 4MP Fixed Turret Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color 0.005 Lux @ F1.6, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• 2.8 mm FOV: Horizontal 98°, Vertical 54°, Diagonal 114°
• 4 mm FOV: Horizontal 78°, Vertical 42°, Diagonal 93°
• Lens Mount: M12
• Aperture: F1.6
• DORI 2.8 mm: Detect 63 m, Observe 25 m, Recognize 12 m, Identify 6 m
• DORI 4 mm: Detect 78 m, Observe 31 m, Recognize 15 m, Identify 7 m
• Supplement Light: IR and White Light
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 75°, Rotate 0° to 360°
• Main Stream: Up to 2560 × 1440 at 20 fps
• Sub Stream: Up to 1280 × 720
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Built-in Microphone: Yes
• Built-in Speaker: Yes, max sound pressure level 95 dB at 10 cm
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Environment Noise Filtering: Yes
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable rectangle privacy masks
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface Profile S/T/G, ISAPI, SDK
• On-board Storage: MicroSD / MicroSDHC / MicroSDXC up to 512 GB
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect
• Basic Event: Motion detection with human/vehicle filtering, video tampering alarm, exception
• Linkage: FTP/memory card upload, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
• Power Supply: 12V DC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: Max. 8 W by 12V DC / Max. 9.5 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Metal and plastic
• Protection: IP67
• Dimensions: Ø110 mm × 102.7 mm
• Weight: Approx. 340 g
Applications:
• Offices and administrative buildings
• Shops and retail areas
• Entrances and corridors
• Warehouses and factories
• Parking areas
• Villas and residential buildings
• Indoor and outdoor surveillance
• Locations requiring two-way audio
• Sites requiring human and vehicle detection
• Projects requiring visible warning with flashing light
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD1343G2-LIUF/SL for projects that need 4MP image quality, Smart Hybrid Light, two-way audio, and human/vehicle detection in a compact turret camera. It is suitable for entrances, offices, shops, warehouses, residential buildings and outdoor areas where clear video, smart alerts and real-time audio warning are required.
