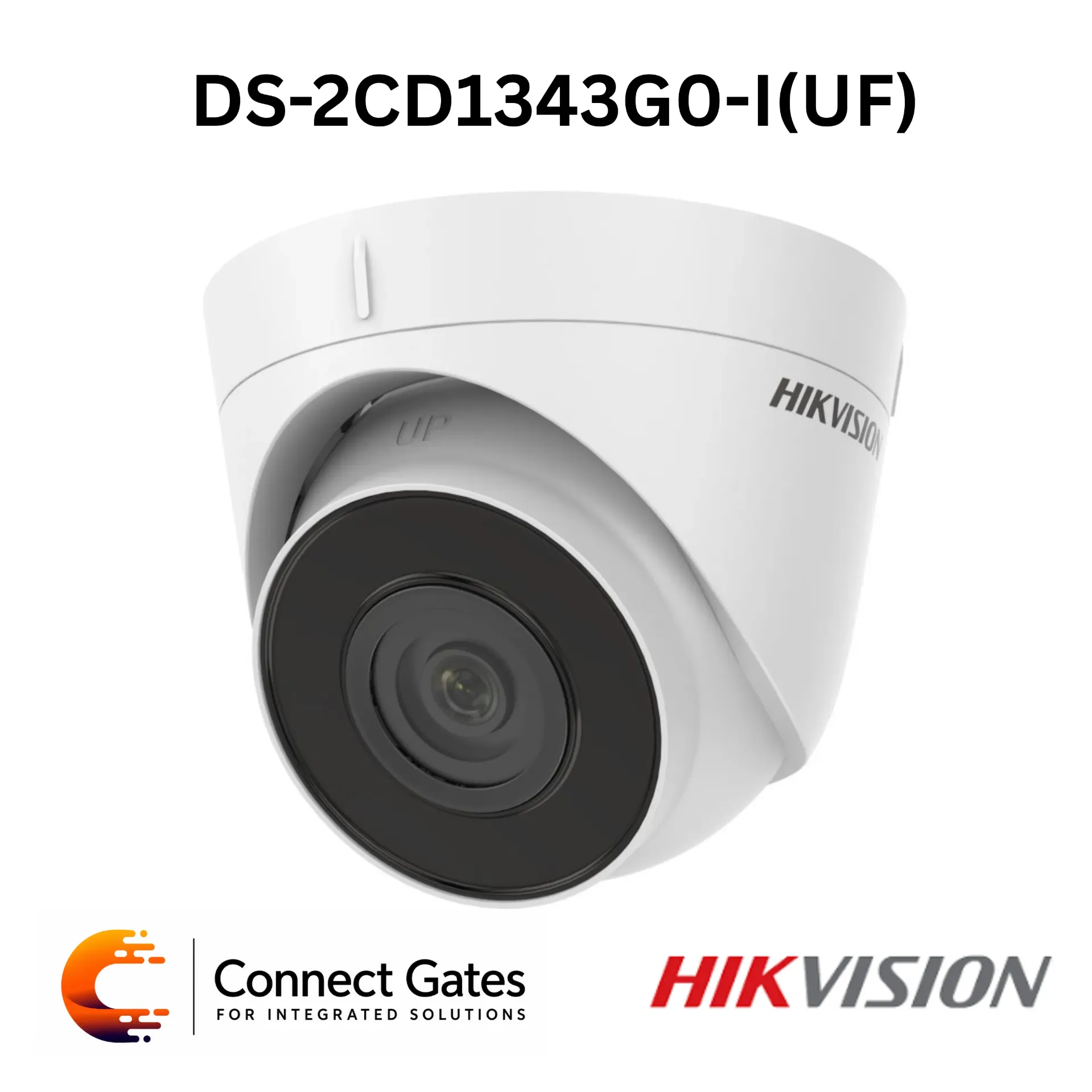

Hikvision DS-2CD1343G0-IUF – 4MP Fixed Turret Network Camera with EXIR 2.0, 30m IR, 120dB WDR, H.265+, PoE & IP67
Overview:
• The Hikvision DS-2CD1343G0-IUF is a 4MP Fixed Turret Network Camera designed for high-quality IP surveillance systems.
• It delivers clear 4MP video resolution up to 2560 × 1440, making it suitable for indoor and outdoor monitoring applications.
• The camera supports efficient H.265+ compression technology to reduce bandwidth and storage usage while maintaining strong image quality.
• It includes 120dB Wide Dynamic Range for clearer images in scenes with strong backlight or difficult lighting conditions.
• The EXIR 2.0 infrared technology provides night vision up to 30 meters, supported by smart IR control for balanced illumination.
• The -IUF version includes a built-in microphone for real-time audio security, onboard microSD card storage up to 256GB, and IP67 protection for water and dust resistance.
Key Features:
• 4MP Resolution: High-quality imaging with maximum resolution of 2560 × 1440.
• Fixed Turret Design: Compact turret camera suitable for indoor and outdoor CCTV installations.
• H.265+ Compression: Reduces bandwidth and storage consumption efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• EXIR 2.0 IR Technology: Provides infrared night vision up to 30 meters.
• Built-in Microphone: Supports real-time audio security in the -IUF model.
• MicroSD Storage: Supports onboard microSD card storage up to 256GB in the -IUF model.
• IP67 Protection: Water and dust resistant for outdoor installation.
• 3D DNR: Reduces image noise for clearer video quality.
• ROI Support: Supports one fixed region of interest for the main stream.
• Flexible Lens Options: Available with 2.8mm or 4mm fixed lens options.
• PoE Support: Supports 802.3af PoE for easier network installation.
• Hik-Connect Support: Compatible with Hik-Connect and iVMS-4200 client software.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1343G0-IUF
• Product Type: Fixed Turret Network Camera
• Image Sensor: 1/3" progressive scan CMOS
• Max. Resolution: 2560 × 1440
• Resolution: 4MP
• Min. Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Lens Type: Fixed focal length
• Lens Options: 2.8mm / 4mm
• 2.8mm FOV: Horizontal 98.0°, Vertical 53.1°, Diagonal 114.7°
• 4mm FOV: Horizontal 78.7°, Vertical 43.1°, Diagonal 92.3°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• Supplement Light Type: IR
• IR Range: Up to 30m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: 20 fps at 2560 × 1440; up to 25/30 fps at 1920 × 1080 and 1280 × 720
• Sub-Stream: 640 × 480 / 640 × 360 up to 25/30 fps
• Video Compression: Main stream: H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• ROI: 1 fixed region for main stream
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC
• Audio Bitrate: 64 Kbps G.711, 16 Kbps G.722.1, 16 Kbps G.726, 32–160 Kbps MP2L2, 16–64 Kbps AAC
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Supported
• Built-in Microphone: Supported
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+, Chrome 57.0+, Firefox 52.0+
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance
• Day / Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range: 120dB
• Image Enhancement: BLC, 3D DNR
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: microSD card slot up to 256GB
• Reset Key: Supported
• Basic Events: Motion detection, video tampering, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
• Power Supply: 12V DC ±25%, max. 5W
• PoE: IEEE 802.3af, Class 3, max. 6.5W
• Dimensions: Ø110 × 85.3 mm
• Weight: Approx. 320g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection: IP67
Applications:
• Indoor and outdoor IP CCTV systems
• Shops and retail stores
• Offices and reception areas
• Villas and residential buildings
• Warehouses and storage areas
• Schools and clinics
• Entrances, corridors, and parking areas
• Projects requiring video with built-in audio recording
• Installations requiring local SD card backup and PoE connectivity
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1343G0-IUF for projects that need a reliable 4MP IP turret camera with audio and outdoor protection.
• It is suitable for shops, offices, villas, entrances, warehouses, and general surveillance areas where clear image quality and built-in audio are important.
• The camera offers strong value with 4MP resolution, H.265+ compression, 120dB WDR, EXIR 30m night vision, built-in microphone, microSD support, and IP67 protection.
• For best performance, Connect Gates recommends using PoE switches or NVR PoE ports with Cat6 cabling and selecting the lens size according to the required viewing angle.
• For wider coverage, the 2.8mm version is recommended; for more focused viewing, the 4mm version is more suitable.
