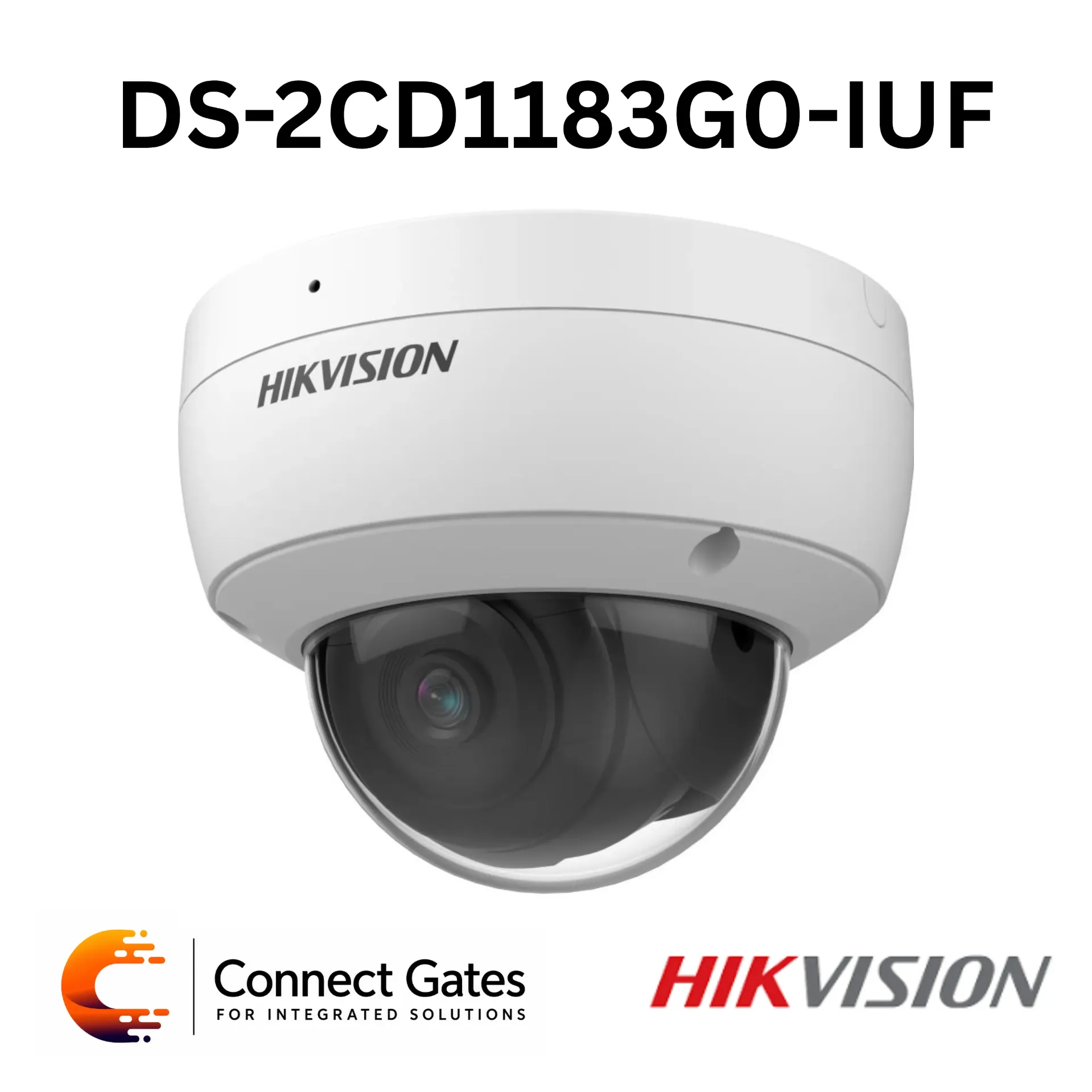

Hikvision DS-2CD1183G0-IUF – 8MP 4K Built-in Mic Fixed Dome Network Camera with EXIR 2.0, H.265+, 120 dB WDR & IP67/IK10
Overview:
The Hikvision DS-2CD1183G0-IUF is an 8MP 4K Fixed Dome Network Camera designed for high-resolution indoor and outdoor surveillance. It provides 4K image quality, built-in microphone for real-time audio security, EXIR 2.0 infrared technology, IR night vision up to 30 m, 120 dB WDR, H.265+ compression, on-board storage up to 256 GB, and durable IP67 weather protection with IK10 vandal resistance.
Key Features:
• 8MP 4K high-quality imaging with up to 3840 × 2160 resolution
• Built-in microphone for real-time audio security
• EXIR 2.0 infrared technology for improved night vision performance
• IR night vision up to 30 m
• 120 dB WDR for clear imaging in strong backlight scenes
• Efficient H.265+ compression to reduce bandwidth and storage usage
• 2.8 mm and 4 mm fixed lens options
• Supports on-board microSD storage up to 256 GB
• Supports BLC, HLC and 3D DNR image enhancement
• Supports privacy mask with 4 regions
• Supports motion detection, video tampering alarm and exception events
• Supports main stream and sub-stream
• Compatible with iVMS-4200 and Hik-Connect
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• IK10 vandal-resistant protection
• Compact fixed dome design suitable for professional installations
Technical Specifications:
• Model: DS-2CD1183G0-IUF
• Camera Type: 4K Built-in Mic Fixed Dome Network Camera
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color 0.01 Lux @ F2.0, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• 2.8 mm FOV: Horizontal 108°, Vertical 60°, Diagonal 127°
• 4 mm FOV: Horizontal 86°, Vertical 46°, Diagonal 102°
• Lens Mount: M12
• Aperture: F2.0
• DORI 2.8 mm: Detect 81 m, Observe 32 m, Recognize 16 m, Identify 8 m
• DORI 4 mm: Detect 106 m, Observe 42 m, Recognize 21 m, Identify 11 m
• Supplement Light: IR
• IR Range: Up to 30 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 355°, Tilt 0° to 75°
• Main Stream: Up to 3840 × 2160 at 12.5/15 fps
• Sub Stream: Up to 1280 × 720
• Video Compression: H.265+, H.264+, H.265, MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Built-in Microphone: Yes
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC
• Environment Noise Filtering: Yes
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Privacy Mask: 4 regions
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: ONVIF Profile S/G, ISAPI, SDK
• On-board Storage: MicroSD card up to 256 GB
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect
• Basic Event: Motion detection, video tampering alarm, exception
• Power Supply: 12V DC ±25% / PoE 802.3af Class 3
• Power Consumption: Max. 5 W by 12V DC / Max. 6.5 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Metal and plastic
• Protection: IP67, IK10
• Dimensions: Ø121.4 mm × 92.2 mm
• Weight: Approx. 550 g
Applications:
• Offices and administrative buildings
• Entrances and corridors
• Shops and retail areas
• Warehouses and factories
• Schools and public buildings
• Parking areas
• Villas and residential buildings
• Indoor and outdoor surveillance
• Locations requiring built-in audio monitoring
• Projects requiring vandal-resistant dome cameras
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD1183G0-IUF for projects that need 8MP 4K image quality, built-in audio monitoring, EXIR night vision, and strong IP67/IK10 protection in a compact dome camera. It is suitable for entrances, corridors, offices, shops, warehouses and outdoor points where clear image details and reliable protection are required.
