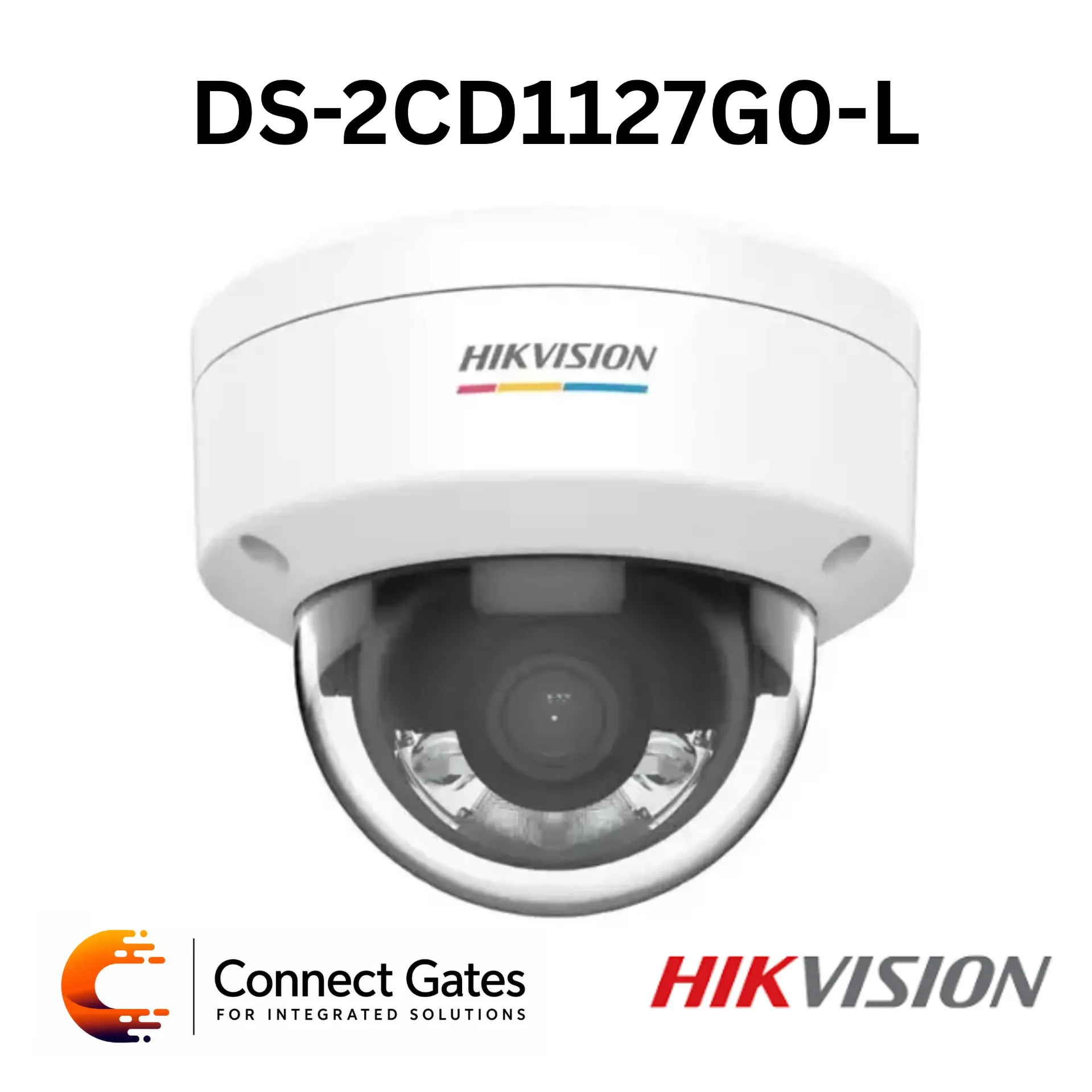

Hikvision DS-2CD1127G0-L – 2MP ColorVu Fixed Dome Network Camera with 24/7 Color Imaging, F1.0 Lens, 30m White Light, H.265+, PoE, IP67 & IK08
Overview:
• The Hikvision DS-2CD1127G0-L is a 2MP ColorVu fixed dome network camera designed for indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• ColorVu technology provides 24/7 vivid colorful imaging using an F1.0 super-aperture lens and high-performance sensor.
• The F1.0 lens collects more light to produce brighter and clearer images in low-light scenes.
• White light supplement provides full-color night monitoring up to 30 meters.
• H.265+ compression helps reduce bandwidth and storage usage while maintaining efficient recording performance.
• The -LUF version supports built-in microphone and local microSD / microSDHC / microSDXC storage up to 256GB.
• With PoE support, IP67 water and dust resistance, IK08 vandal resistance, Digital WDR, BLC, HLC, 3D DNR, privacy mask, and dome design, it is suitable for entrances, corridors, offices, shops, clinics, villas, schools, parking areas, and public indoor/outdoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• ColorVu Technology: Provides 24/7 colorful imaging in low-light environments.
• F1.0 Super-Aperture Lens: Collects more light for brighter night images.
• Excellent Low-Light Performance: Suitable for weak-light scenes where color details are important.
• 30m White Light Range: Supports full-color night monitoring up to 30 m.
• Fixed Dome Design: Discreet and protected design for indoor and outdoor installation.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image clarity in challenging lighting conditions.
• BLC / HLC / 3D DNR: Enhances image quality and reduces video noise.
• microSD Storage Option: The -LUF version supports local storage up to 256GB.
• Built-in Microphone Option: The -LUF version supports real-time audio security.
• PoE Support: Power and data through one network cable.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• IK08 Vandal Resistance: Provides better physical protection for exposed areas.
• Hik-Connect Support: Enables remote viewing and easier system management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1127G0-L / DS-2CD1127G0-LUF
• Product Type: 2MP ColorVu Fixed Dome Network Camera
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color Imaging
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field – 2.8 mm: 1.5 m to infinity
• Depth of Field – 4 mm: 2.1 m to infinity
• Field of View – 2.8 mm: Horizontal 105°, Vertical 56°, Diagonal 125°
• Field of View – 4 mm: Horizontal 83°, Vertical 46°, Diagonal 97°
• DORI – 2.8 mm: Detect 44 m, Observe 17 m, Recognize 9 m, Identify 4 m
• DORI – 4 mm: Detect 53 m, Observe 21 m, Recognize 10 m, Identify 5 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 1280 × 720 / 640 × 480; 60Hz: 30fps at 1280 × 720 / 640 × 480
• Video Compression – Main Stream: H.265+ / H.265 / H.264+ / H.264
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR / VBR
• Region of Interest: 1 fixed region for main stream
• Audio Type: -LUF version supports mono sound
• Audio Compression: -LUF version supports G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Bitrate: -LUF version supports 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC-LC
• Audio Sampling Rate: -LUF version supports 8 kHz / 16 kHz
• Environment Noise Filtering: -LUF version supports environment noise filtering
• Wide Dynamic Range: Digital WDR
• SNR: ≥52 dB
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Enhancement: BLC / HLC / 3D DNR
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance, Mirror
• Privacy Mask: 4 programmable polygon privacy masks
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• On-Board Storage: -LUF version supports microSD / microSDHC / microSDXC card up to 256GB
• Built-in Microphone: -LUF version supports built-in microphone
• Reset Key: -LUF version supports reset key
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, HTTP / HTTPS authentication, WSSE, RTP / RTSP over HTTPS, security audit log, TLS 1.2, host authentication
• Simultaneous Live View: Up to 6 channels
• API: ONVIF Profile S, ISAPI, SDK; Profile G supported on -LUF model
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1X, SMTP
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10 / IE 11 with plug-in; Chrome 57.0+ / Firefox 52.0+ using local service
• Basic Event: Motion detection, video tampering alarm, exception
• Event Linkage: Upload to FTP / memory card on -LUF version, notify surveillance center, send email, trigger recording on -LUF version, trigger capture
• Power Supply: 12 VDC ±25%, 0.4A, max. 5W
• PoE: IEEE 802.3af, Class 3, max. 6.5W
• Power Interface: Ø5.5 mm coaxial power plug
• Material: Base: Aluminum Alloy; Cover: Plastic
• Dimensions: Ø121.5 mm × 97.6 mm
• Package Dimensions: 150 mm × 150 mm × 141 mm
• Weight: Approx. 500 g
• With Package Weight: Approx. 700 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Heartbeat, Anti-Flicker, Password Protection, Password Reset via Email
• Language: English, Ukrainian
• Protection Rating: IP67
• Vandal Resistance: IK08
• Anti-Corrosion Level: No specific protection
• Available Models: DS-2CD1127G0-L 2.8 mm / 4 mm and DS-2CD1127G0-LUF 2.8 mm / 4 mm
Applications:
• Indoor entrances
• Outdoor entrances
• Offices
• Retail shops
• Clinics
• Villas and homes
• Corridors
• Reception areas
• Schools and admin areas
• Parking entrances
• Public indoor areas
• Small warehouses
• Small business IP CCTV systems
• Outdoor points requiring 24/7 colorful imaging
• Locations requiring excellent low-light performance
• Projects requiring ColorVu camera installation
• Locations requiring optional audio monitoring on -LUF version
• Small systems requiring optional local microSD recording on -LUF version
• Projects requiring vandal-resistant dome camera installation
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need full-color night monitoring in a protected dome design.
• ColorVu technology is especially useful for entrances, corridors, reception areas, shops, villas, parking points, and outdoor areas where color details are important at night.
• The F1.0 lens and high-performance sensor make it a strong option for low-light scenes that need clearer and brighter images.
• The 30 m white light range provides practical full-color night coverage for entrances, corridors, small warehouses, and external monitoring points.
• IP67 and IK08 protection make it suitable for indoor/outdoor areas where the camera needs environmental protection and better physical resistance.
• The -LUF version adds value when audio monitoring or local microSD backup recording is required.
• Best suited for customers who need a Hikvision ColorVu IP dome camera with Full HD resolution, 24/7 color imaging, PoE, IP67 outdoor protection, IK08 vandal resistance, and efficient H.265+ recording.
