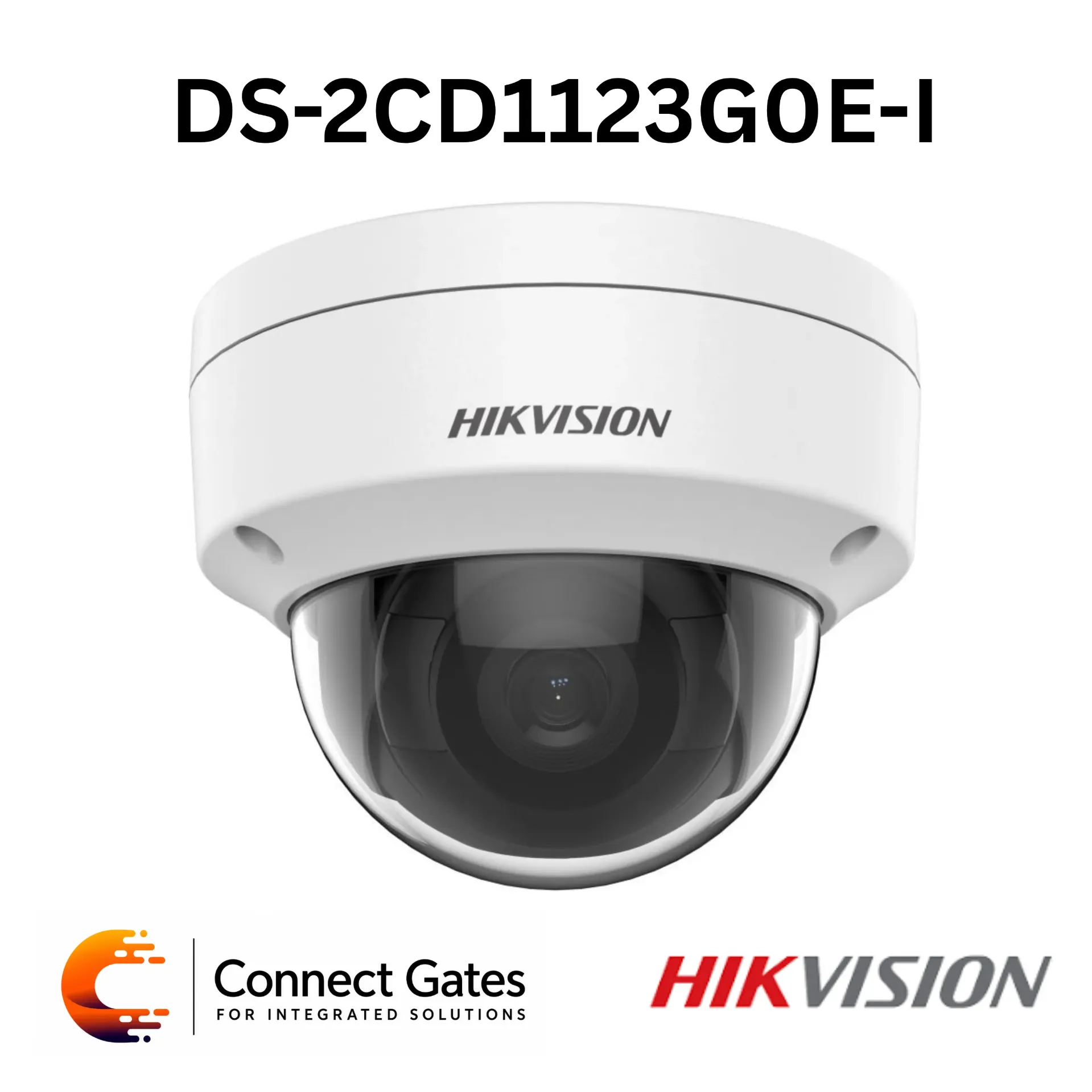

Hikvision DS-2CD1123G0E-I – 2MP Fixed Dome Network Camera with EXIR 2.0, 30m IR, H.265+, Digital WDR, IP67 & IK10
Overview:
• The Hikvision DS-2CD1123G0E-I is a 2MP fixed dome network camera designed for reliable indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• EXIR 2.0 advanced infrared technology provides long-range IR performance up to 30 meters for clear night monitoring.
• Digital WDR helps improve image clarity in strong backlight and mixed lighting conditions.
• The camera supports efficient H.265+ compression technology to reduce bandwidth and storage usage.
• With IP67 water and dust resistance and IK10 vandal resistance, it is suitable for areas that need stronger physical protection than standard dome cameras.
• The fixed dome design is suitable for offices, corridors, entrances, shops, clinics, warehouses, schools, villas, and exposed indoor/outdoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• Fixed Dome Design: Practical and discreet camera shape for indoor and outdoor installation.
• EXIR 2.0 Technology: Advanced infrared performance for better night monitoring.
• 30m IR Night Vision: IR supplement light range up to 30 m.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image quality against strong backlight.
• BLC & 3D DNR: Enhances image clarity and reduces video noise.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• Wide Viewing Angle: 2.8 mm lens provides 112.1° horizontal field of view.
• ROI Support: Supports 1 fixed region for the main stream.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• IK10 Vandal Resistance: Stronger physical protection for exposed areas.
• Hik-Connect Support: Enables remote viewing and easier system management.
• PoE Support: Power and data through one network cable.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1123G0E-I
• Product Type: 2MP Fixed Dome Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Focus: Fixed
• Aperture: F2.0
• Field of View – 2.8 mm: Horizontal 112.1°, Vertical 60.0°, Diagonal 132.2°
• Field of View – 4 mm: Horizontal 90.2°, Vertical 48.6°, Diagonal 107.6°
• Supplement Light Type: IR
• IR Range: Up to 30 m
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265 / H.264 / H.264+ / H.265+
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Region of Interest: 1 fixed region for main stream
• Wide Dynamic Range: Digital WDR
• Image Enhancement: BLC / 3D DNR
• Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
• Day/Night Switch: Day / Night / Auto / Schedule
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+ with plug-in; Chrome 57.0+ / Firefox 52.0+ plug-in-free live view and local service
• Basic Event: Motion detection, video tampering alarm, exception
• Event Linkage: Upload to FTP, notify surveillance center, send email
• Power Supply: 12 VDC ±25%, 0.4A, max. 5W
• PoE: IEEE 802.3af, Class 3, 36V to 57V, 0.2A to 0.15A, max. 6.5W
• Material: Metal & Plastic
• Dimensions: Ø110 mm × 82.4 mm
• Package Dimensions: 134 mm × 134 mm × 108 mm
• Weight: Approx. 410 g
• With Package Weight: Approx. 610 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Language: English, Ukrainian
• Protection Rating: IP67
• Vandal Resistance: IK10
• Anti-Corrosion Level: No specific protection
• Available Models: DS-2CD1123G0E-I 2.8 mm / DS-2CD1123G0E-I 4 mm
Applications:
• Indoor entrances
• Outdoor entrances
• Offices
• Retail shops
• Clinics
• Villas and homes
• Corridors
• Reception areas
• Small warehouses
• Schools and admin areas
• Parking entrances
• Public indoor areas
• Small business IP CCTV systems
• Areas requiring vandal-resistant dome camera installation
• Outdoor points requiring IP67 protection
• Projects requiring 30 m IR night monitoring
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need a stronger dome camera with both outdoor protection and vandal resistance.
• EXIR 2.0 with 30 m IR makes it suitable for entrances, corridors, shops, offices, warehouses, villas, and outdoor monitoring points.
• IK10 protection makes it a better option for public or semi-public areas where the camera may be exposed to physical contact or tampering.
• Digital WDR helps improve image visibility in backlight areas such as doors, glass fronts, reception entrances, and mixed-light locations.
• Best suited for customers who need a Hikvision IP dome camera with Full HD resolution, 30 m night vision, PoE, IP67 outdoor protection, IK10 vandal resistance, and efficient H.265+ recording performance.
