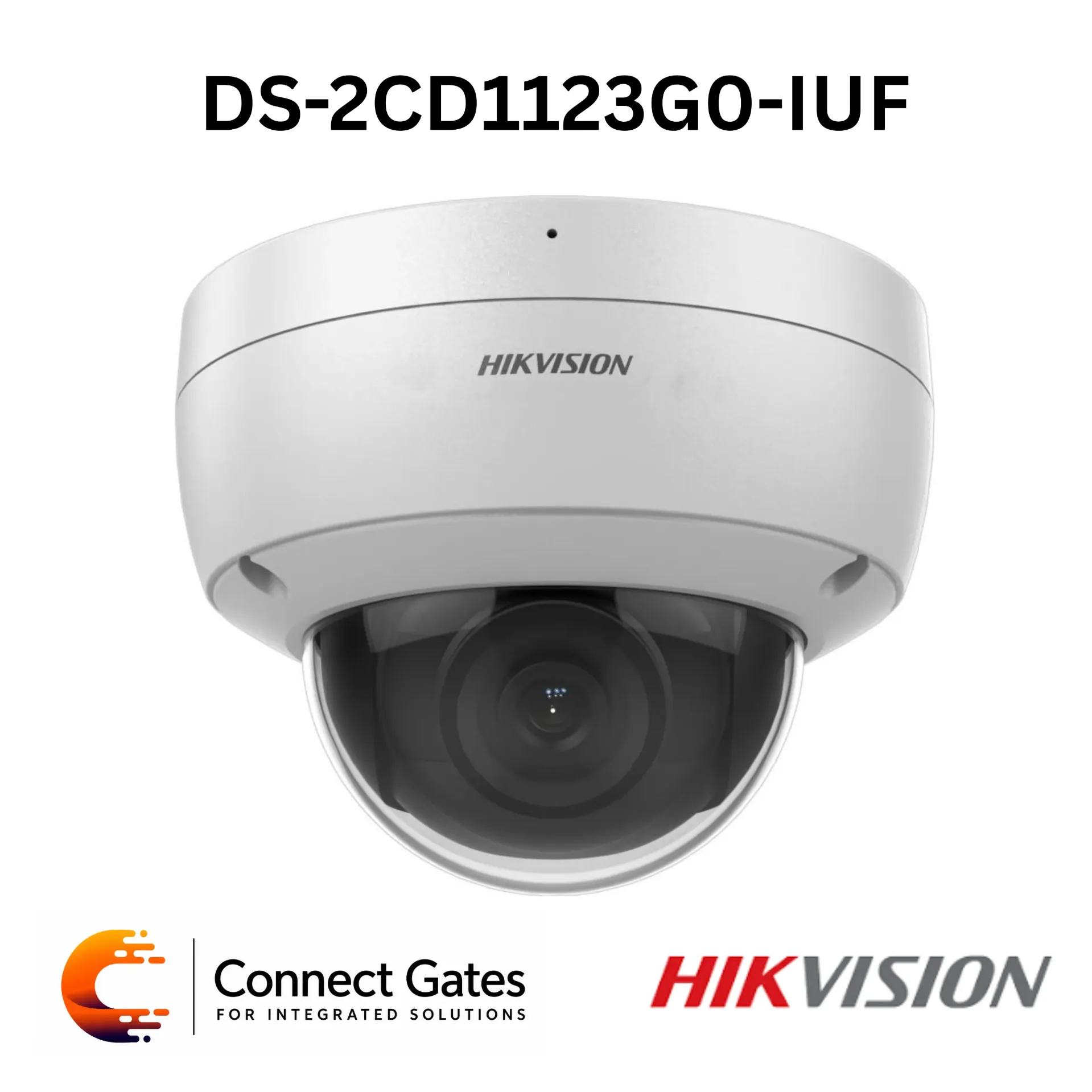

Hikvision DS-2CD1123G0-IUF – 2MP Built-in Mic Fixed Dome Network Camera with EXIR 2.0, 30m IR, 256GB microSD, H.265+, Digital WDR, IP67 & IK10
Overview:
• The Hikvision DS-2CD1123G0-IUF is a 2MP built-in microphone fixed dome network camera designed for indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• EXIR 2.0 advanced infrared technology provides long-range IR performance up to 30 meters for clear night monitoring.
• Digital WDR helps improve image clarity in strong backlight and mixed lighting conditions.
• The camera supports efficient H.265+ compression technology to reduce bandwidth and storage usage.
• The built-in microphone provides real-time audio security for locations where audio evidence is required.
• It supports local microSD / SDHC / SDXC card storage up to 256GB.
• With IP67 water and dust resistance, IK10 vandal resistance, PoE support, metal/plastic housing, and compact dome design, it is suitable for entrances, corridors, offices, shops, clinics, villas, warehouses, and public indoor/outdoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• Built-in Microphone: Supports real-time audio security.
• EXIR 2.0 Technology: Advanced infrared performance for better night monitoring.
• 30m IR Night Vision: IR range up to 30 m.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image quality against strong backlight.
• BLC / 3D DNR: Enhances image clarity and reduces video noise.
• microSD Storage: Supports local storage up to 256GB.
• Fixed Dome Design: Discreet and durable design for indoor and outdoor installation.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• ROI Support: Supports 1 fixed region for main stream.
• PoE Support: Power and data through one network cable.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• IK10 Vandal Resistance: Stronger physical protection for exposed areas.
• Hik-Connect Support: Enables remote viewing and easier system management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1123G0-IUF
• Product Type: 2MP Built-in Mic Fixed Dome Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Focus: Fixed
• Aperture: F2.0
• Field of View – 2.8 mm: Horizontal 112.1°, Vertical 60.0°, Diagonal 132.2°
• Field of View – 4 mm: Horizontal 90.2°, Vertical 48.6°, Diagonal 107.6°
• IR Wavelength: 850 nm
• IR Range: Up to 30 m
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265 / H.264
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• H.264+ Support: Main stream supports
• H.265+ Support: Main stream supports
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Region of Interest: 1 fixed region for main stream
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC
• Audio Bitrate: 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC
• Audio Sampling Rate: 8 kHz / 16 kHz
• Environment Noise Filtering: Yes
• Built-in Microphone: Yes
• Wide Dynamic Range: Digital WDR
• Image Enhancement: BLC / 3D DNR
• Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
• Day/Night Switch: Day / Night / Auto / Schedule
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports microSD card up to 256GB
• Network Storage: microSD / SDHC / SDXC card up to 256GB local storage
• Hardware Reset: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+ with plug-in; Chrome 57.0+ / Firefox 52.0+ plug-in-free live view and local service
• Basic Event: Motion detection, video tampering alarm, exception
• Event Linkage: Upload to FTP / memory card, notify surveillance center, send email, trigger recording, trigger capture
• Camera Material: Metal & Plastic
• Dimensions: Ø120 mm × 92.2 mm
• Package Dimensions: 134 mm × 134 mm × 108 mm
• Weight: Approx. 410 g
• With Package Weight: Approx. 610 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Firmware Version: V5.5.120
• Power Supply: 12 VDC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: 12 VDC: max. 5W; PoE: max. 6.5W
• Power Interface: Ø5.5 mm coaxial power plug
• Protection Rating: IP67
• Vandal Resistance: IK10
• Available Model: DS-2CD1123G0-IUF
Applications:
• Indoor entrances
• Outdoor entrances
• Offices
• Retail shops
• Clinics
• Villas and homes
• Corridors
• Reception areas
• Small warehouses
• Schools and admin areas
• Public indoor areas
• Parking entrances
• Small business IP CCTV systems
• Locations requiring audio monitoring
• Areas requiring vandal-resistant dome camera installation
• Outdoor points requiring IP67 protection
• Projects requiring local microSD recording
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need a durable dome camera with built-in audio and local storage support.
• The built-in microphone adds value for entrances, reception areas, cashier points, corridors, clinics, and offices where audio evidence is important.
• EXIR 2.0 with 30 m IR makes it suitable for entrances, corridors, shops, warehouses, villas, and outdoor monitoring points.
• IP67 and IK10 protection make it a strong choice for public or semi-public areas where the camera may be exposed to weather, dust, or physical tampering.
• The 256GB microSD storage support is useful for backup recording or small standalone camera installations.
• Best suited for customers who need a Hikvision IP dome camera with Full HD resolution, built-in microphone, 30 m night vision, PoE, microSD storage, IP67 outdoor protection, IK10 vandal resistance, and efficient H.265+ recording.
