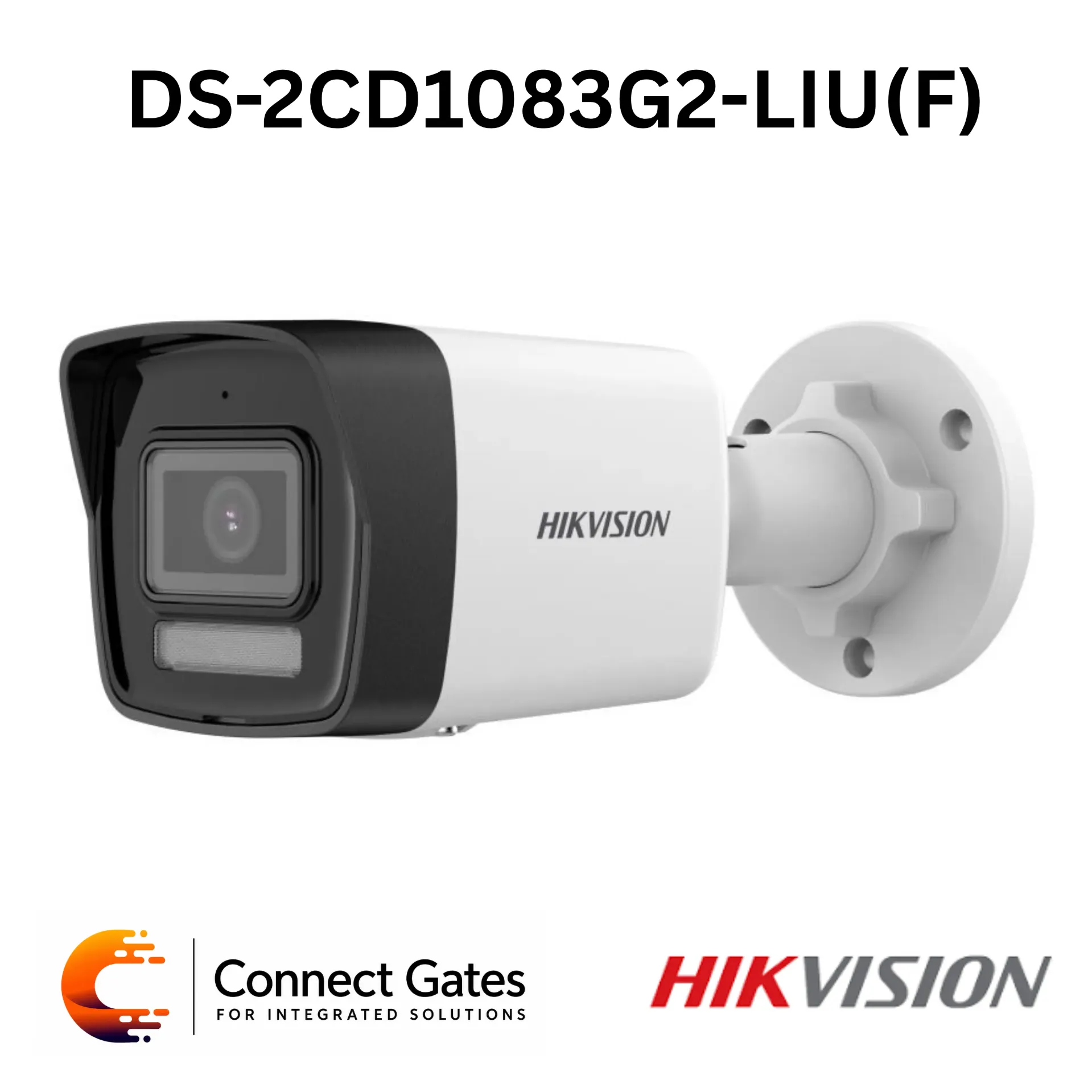

Hikvision DS-2CD1083G2H-LIU – 8MP Smart Hybrid Light Fixed Bullet Network Camera with Human/Vehicle Detection, Built-in Microphone, 120dB WDR, 512GB SD Support & IP67
Overview:
• The Hikvision DS-2CD1083G2H-LIU is an 8MP Smart Hybrid Light Fixed Bullet Network Camera designed for high-resolution indoor and outdoor IP surveillance systems.
• It delivers high-quality 8MP video resolution up to 3840 × 2160, making it suitable for projects that require detailed monitoring in entrances, gates, parking areas, warehouses, villas, and outdoor corridors.
• The camera supports Smart Hybrid Light technology with IR and white light illumination up to 30 meters.
• It supports human and vehicle detection to improve alarm accuracy and reduce false alerts from irrelevant motion.
• The built-in microphone provides real-time audio security, making it suitable for locations where both video and audio monitoring are required.
• With H.265+ compression, 120dB WDR, optional onboard microSD storage up to 512GB in the -F model, PoE support, IP67 weather protection, and 2.8mm / 4mm lens options, it is a strong bullet camera solution for smart outdoor CCTV projects.
Key Features:
• 8MP / 4K Resolution: High-quality imaging with maximum resolution of 3840 × 2160.
• Smart Hybrid Light: Supports IR and white light illumination up to 30 meters.
• Human and Vehicle Detection: Supports alarm triggering by specified target types.
• Built-in Microphone: Provides real-time audio security.
• H.265+ Compression: Reduces bandwidth and storage usage efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• 512GB SD Card Support: Supports onboard microSD / microSDHC / microSDXC card up to 512GB in the -F model.
• IP67 Protection: Water and dust resistant for outdoor installation.
• Privacy Mask: Supports 4 programmable polygon privacy masks.
• Flexible Lens Options: Available with 2.8mm or 4mm fixed lens options.
• PoE Support: Supports IEEE 802.3af PoE for easier network installation.
• Compact Bullet Design: Suitable for outdoor monitoring, entrances, gates, and perimeter areas.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1083G2H-LIU
• Product Type: Smart Hybrid Light Fixed Bullet Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Resolution: 8MP / 4K
• Min. Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: Fixed focal lens
• Lens Options: 2.8mm / 4mm
• 2.8mm FOV: Horizontal 113°, Vertical 62°, Diagonal 134°
• 4mm FOV: Horizontal 90°, Vertical 49°, Diagonal 108°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• DORI 2.8mm: Detect 79m, Observe 31m, Recognize 15m, Identify 7m
• DORI 4mm: Detect 102m, Observe 40m, Recognize 20m, Identify 10m
• Supplement Light Type: IR and White Light
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: 12.5 fps at 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720 at 50Hz; 15 fps at the same resolutions at 60Hz
• Sub-Stream: 1280 × 720 / 640 × 480 / 640 × 360 up to 12.5 fps at 50Hz or 15 fps at 60Hz
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Supported
• Built-in Microphone: Supported
• Wide Dynamic Range: 120dB
• SNR: ≥ 52dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• API: ONVIF Profile S / Profile T, Profile G supported in -F model, ISAPI, SDK
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: microSD / microSDHC / microSDXC card up to 512GB in -F model
• Basic Events: Motion detection with human and vehicle target classification, video tampering alarm, exception
• Power Supply: 12V DC ±25%, max. 5W
• PoE: IEEE 802.3af, Class 3, max. 6.5W
• Material: Metal and Plastic
• Dimensions: 170.8 × 66 × 69.1 mm
• Weight: Approx. 285g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67
Applications:
• High-resolution indoor and outdoor IP CCTV systems
• Building entrances and gates
• Shops and retail stores
• Offices and reception areas
• Villas and residential buildings
• Warehouses and storage areas
• Parking areas and outdoor corridors
• Perimeter surveillance and long-view monitoring
• Projects requiring human and vehicle detection
• Installations requiring 8MP bullet camera coverage with built-in audio and Smart Hybrid Light
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1083G2H-LIU for IP CCTV projects that need 8MP bullet camera coverage with smart human/vehicle detection and built-in audio.
• It is suitable for gates, entrances, parking areas, warehouses, villas, shops, and outdoor corridors where high image detail and accurate detection are important.
• The camera offers strong value with 8MP resolution, Smart Hybrid Light, human/vehicle detection, built-in microphone, 120dB WDR, H.265+ compression, and IP67 protection.
• For wider scenes, Connect Gates recommends the 2.8mm lens; for narrower and more focused monitoring, the 4mm lens is more suitable.
• For projects requiring onboard recording, Connect Gates recommends confirming the -F model to ensure microSD card support up to 512GB.
