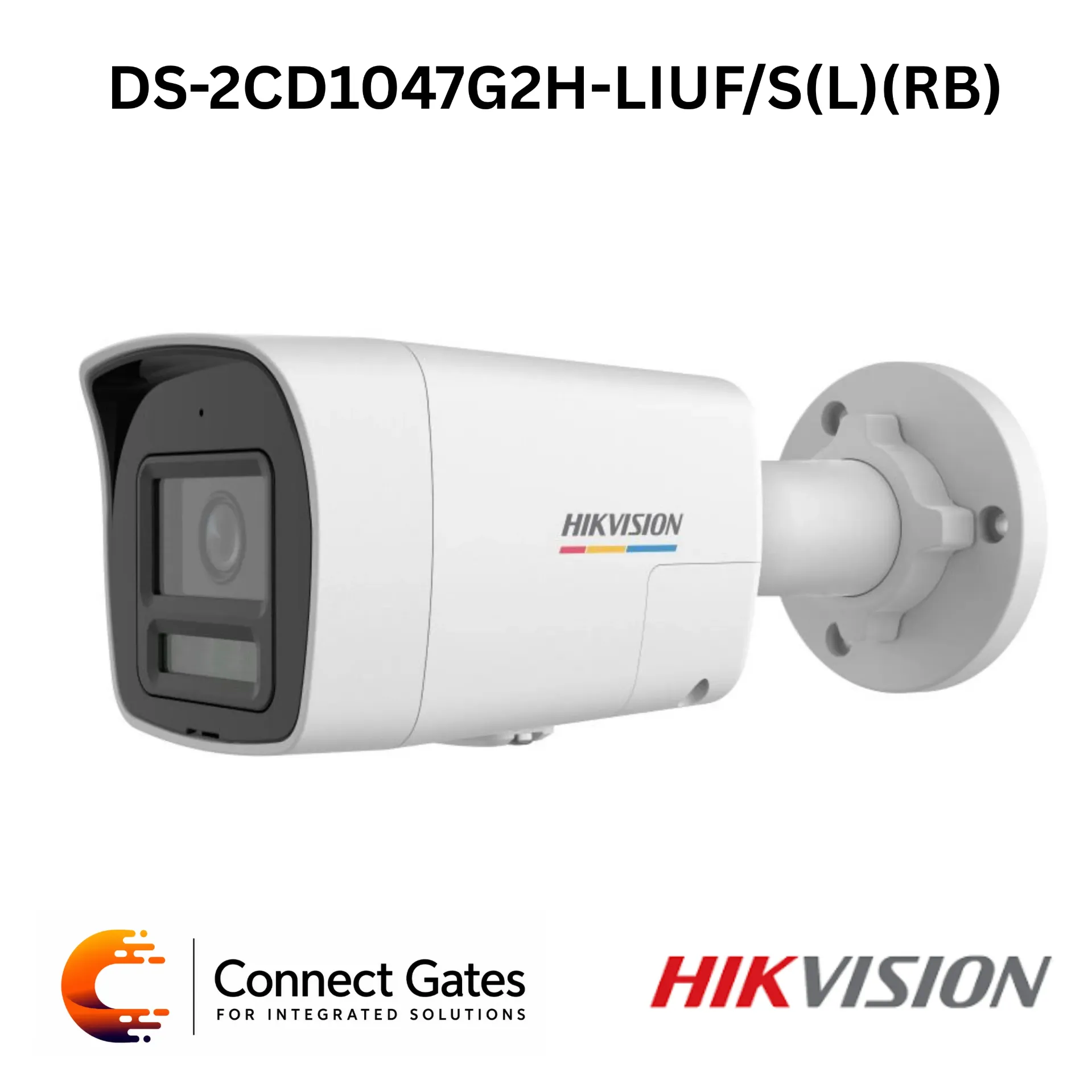

Hikvision DS-2CD1047G2H-LIUF/SL – 4MP ColorVu Smart Hybrid Light Fixed Bullet Network Camera with Person/Vehicle Detection, Two-Way Audio, Strobe Alarm, 512GB SD Support & IP67
Overview:
• The Hikvision DS-2CD1047G2H-LIUF/SL is a 4MP ColorVu Fixed Bullet Network Camera designed for smart outdoor and indoor IP surveillance systems.
• It delivers high-quality 4MP video resolution up to 2560 × 1440 with 24/7 colorful imaging using ColorVu technology and F1.0 aperture.
• The camera supports Smart Hybrid Light technology using IR and white light, with supplement light range up to 30 meters.
• It supports person and vehicle detection to improve alarm accuracy and reduce false alarms from irrelevant motion.
• The camera provides real-time security through built-in two-way audio, built-in microphone, built-in speaker, and strobe light alarm.
• With H.265+ compression, 120dB WDR, onboard microSD card storage up to 512GB, PoE support, IP67 protection, and 2.8mm / 4mm lens options, it is a strong bullet camera solution for smart perimeter and outdoor surveillance projects.
Key Features:
• 4MP Resolution: High-quality imaging with maximum resolution of 2560 × 1440.
• Bullet Camera Design: Suitable for outdoor perimeter, entrances, corridors, gates, and long-view monitoring.
• ColorVu Technology: Provides 24/7 colorful imaging for better detail in low-light scenes.
• Smart Hybrid Light: Supports IR and white light illumination up to 30 meters.
• Person and Vehicle Detection: Supports alarm triggering by specified target types.
• Two-Way Audio: Built-in microphone and built-in speaker for real-time communication.
• Strobe Light Alarm: Provides active visual warning through built-in flashing light.
• H.265+ Compression: Reduces bandwidth and storage usage efficiently.
• 120dB WDR: Improves image clarity in strong backlight environments.
• 512GB SD Card Support: Supports onboard microSD / microSDHC / microSDXC card up to 512GB.
• IP67 Protection: Water and dust resistant for outdoor installation.
• Privacy Mask: Supports 4 programmable polygon privacy masks.
• Flexible Lens Options: Available with 2.8mm or 4mm fixed lens options.
• PoE Support: Supports IEEE 802.3af PoE for easier network installation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1047G2H-LIUF/SL
• Product Type: ColorVu Smart Hybrid Light Fixed Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Resolution: 4MP
• Min. Illumination: Color: 0.001 Lux @ F1.0, AGC ON; 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 355°
• Lens Type: Fixed focal lens
• Lens Options: 2.8mm / 4mm
• 2.8mm FOV: Horizontal 96°, Vertical 52°, Diagonal 114°
• 4mm FOV: Horizontal 80°, Vertical 43°, Diagonal 93°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• DORI 2.8mm: Detect 63m, Observe 25m, Recognize 12m, Identify 6m
• DORI 4mm: Detect 77m, Observe 30m, Recognize 15m, Identify 7m
• Supplement Light Type: IR and White Light
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: 20 fps at 2560 × 1440; up to 25 fps at 1920 × 1080 / 1280 × 720 at 50Hz; up to 24 fps at 1920 × 1080 / 1280 × 720 at 60Hz
• Sub-Stream: 1280 × 720 / 640 × 480 / 640 × 360 up to 25 fps at 50Hz or 24 fps at 60Hz
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• Bit Rate Control: CBR / VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Supported
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker: 1 built-in speaker, max. sound pressure level 98dB at 10cm
• Wide Dynamic Range: 120dB
• SNR: ≥ 52dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
• API: ONVIF Profile S / G / T, ISAPI, SDK
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users, 3 levels: administrator, operator, user
• Client Software: iVMS-4200, Hik-Connect
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Onboard Storage: microSD / microSDHC / microSDXC card up to 512GB
• Basic Events: Motion detection with person and vehicle target classification, video tampering alarm, exception
• Linkage: Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture
• Flashing Light: White Light for /SL model
• Power Supply: 12V DC ±25%, max. 7.2W
• PoE: IEEE 802.3af, Class 3, max. 8.7W
• Material: Front cover metal, body plastic, bracket plastic
• Dimensions: 179 × 69.1 × 67.4 mm
• Weight: Approx. 320g
• Operating Conditions: -30°C to +60°C, humidity 95% or less
• Protection Rating: IP67
Applications:
• Smart indoor and outdoor IP CCTV systems
• Building entrances and gates
• Shops and retail stores
• Offices and reception areas
• Villas and residential buildings
• Warehouses and storage areas
• Parking areas and outdoor corridors
• Perimeter surveillance and long-view monitoring
• Projects requiring 24/7 full-color video
• Sites requiring person and vehicle detection, two-way audio, strobe warning, and local SD card backup
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-2CD1047G2H-LIUF/SL for projects that need a smart bullet camera with full-color night monitoring, active deterrence, and reliable outdoor protection.
• It is suitable for gates, entrances, parking areas, warehouses, villas, shops, and outdoor corridors where bullet camera direction and visibility are preferred.
• The camera offers strong value with 4MP ColorVu imaging, Smart Hybrid Light, person and vehicle detection, two-way audio, strobe light alarm, 512GB SD card support, and IP67 protection.
• For wider scenes, Connect Gates recommends the 2.8mm lens; for narrower and more focused monitoring, the 4mm lens is more suitable.
• For locations where white light or strobe warning may disturb people at night, Connect Gates recommends reviewing the camera angle and alarm settings before installation.
