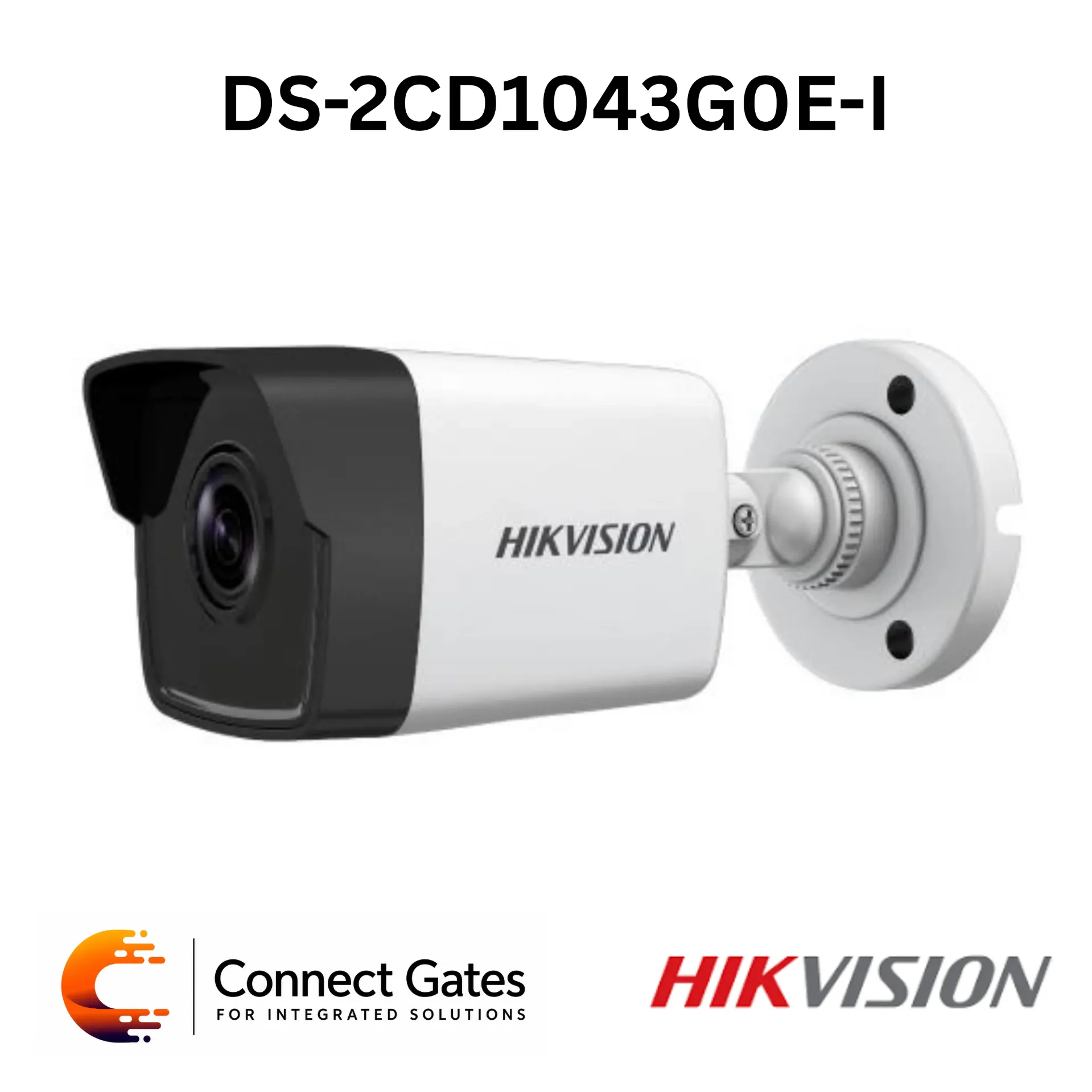

Hikvision DS-2CD1043G0-I – 4MP Fixed Bullet Network Camera with EXIR 2.0, 30m IR, 120dB WDR, H.265+, PoE & IP67
Overview:
• The Hikvision DS-2CD1043G0-I is a 4MP fixed bullet network camera designed for indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 2560 × 1440 resolution, providing clearer image detail than standard 2MP cameras.
• EXIR 2.0 advanced infrared technology provides long-range IR performance up to 30 meters for reliable night monitoring.
• 120 dB WDR helps deliver clearer imaging even in strong backlight conditions.
• The camera supports efficient H.265+ compression technology to reduce bandwidth and storage usage.
• The -UF version supports a built-in microphone, local microSD storage up to 256GB, and reset key.
• With PoE support, IP67 protection, metal/plastic housing, BLC, 3D DNR, privacy mask, and practical bullet design, it is suitable for entrances, gates, shops, offices, villas, warehouses, parking areas, corridors, and outdoor monitoring points.
Key Features:
• 4MP High-Quality Imaging: Provides 2560 × 1440 resolution for detailed video monitoring.
• Fixed Bullet Design: Suitable for focused indoor and outdoor monitoring points.
• EXIR 2.0 Technology: Advanced infrared performance for clearer night monitoring.
• 30m IR Night Vision: IR supplement range up to 30 m.
• 120dB WDR: Clear imaging even with strong backlighting.
• H.265+ Compression: Reduces bandwidth and storage usage.
• BLC / 3D DNR: Enhances image clarity and reduces video noise.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• microSD Storage Option: The -UF version supports local storage up to 256GB.
• Built-in Microphone Option: The -UF version supports real-time audio security.
• ROI Support: Supports 1 fixed region for main stream.
• PoE Support: Power and data through one network cable.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• Hik-Connect Support: Enables remote viewing and easier system management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1043G0-I / DS-2CD1043G0-IUF
• Product Type: 4MP Fixed Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440
• Minimum Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Lens Type: Fixed focal length
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• Field of View – 2.8 mm: Horizontal 98.0°, Vertical 53.1°, Diagonal 114.7°
• Field of View – 4 mm: Horizontal 78.7°, Vertical 43.1°, Diagonal 92.3°
• Supplement Light Type: IR
• IR Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 20fps at 2560 × 1440; 25fps at 1920 × 1080 / 1280 × 720
• Main Stream – 60Hz: 20fps at 2560 × 1440; 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265 / H.264 / H.264+ / H.265+
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Region of Interest: 1 fixed region for main stream
• Audio Compression: -UF version supports G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC
• Audio Bitrate: -UF version supports 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC
• Audio Sampling Rate: -UF version supports 8 kHz / 16 kHz
• Environment Noise Filtering: -UF version supports environment noise filtering
• Built-in Microphone: -UF version supports built-in microphone
• Wide Dynamic Range: 120 dB WDR
• Image Enhancement: BLC / 3D DNR
• Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
• Day/Night Switch: Auto / Schedule / Day / Night
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• On-Board Storage: -UF version supports microSD card up to 256GB
• Reset Key: -UF version supports reset key
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+ with plug-in; Chrome 57.0+ / Firefox 52.0+ plug-in-free live view and local service
• Basic Event: Motion detection, video tampering, exception
• Event Linkage: Upload to FTP, notify surveillance center, send email; -UF also supports upload to memory card, trigger recording, and trigger capture
• Power Supply: 12 VDC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: 12 VDC: max. 5W; PoE: max. 6.5W
• Power Interface: Ø5.5 mm coaxial power plug
• Material: Metal & Plastic
• Dimensions: 177.6 mm × 66.2 mm × 67.8 mm
• Package Dimensions: 216 mm × 121 mm × 118 mm
• Weight: Approx. 270 g
• With Package Weight: Approx. 490 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Protection Rating: IP67
• Available Models: DS-2CD1043G0-I 2.8 mm / DS-2CD1043G0-I 4 mm
Applications:
• Outdoor entrances
• Building gates
• Retail shops
• Offices
• Villas and homes
• Clinics
• Small warehouses
• Parking entrances
• Corridors
• Reception areas
• Small business IP CCTV systems
• Outdoor points requiring 4MP image detail
• Locations with strong backlight conditions
• Projects requiring EXIR 2.0 night monitoring
• Projects requiring PoE installation
• Locations requiring optional audio monitoring on -UF version
• Small systems requiring optional local microSD storage on -UF version
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need better image detail than 2MP bullet cameras.
• The 4MP resolution makes it suitable for entrances, gates, shops, warehouses, villas, parking points, and outdoor monitoring areas where clearer details are required.
• 120 dB WDR is especially useful for backlight scenes such as gates, glass entrances, reception doors, and areas facing sunlight.
• EXIR 2.0 with 30 m IR gives reliable night monitoring for outdoor and low-light areas.
• H.265+ compression helps reduce storage and bandwidth usage, making it practical for cost-effective IP CCTV systems.
• The -UF version adds value when audio monitoring or local microSD backup recording is required.
• Best suited for customers who need a Hikvision 4MP IP bullet camera with strong WDR, 30 m IR, PoE, IP67 outdoor protection, and efficient recording performance.
