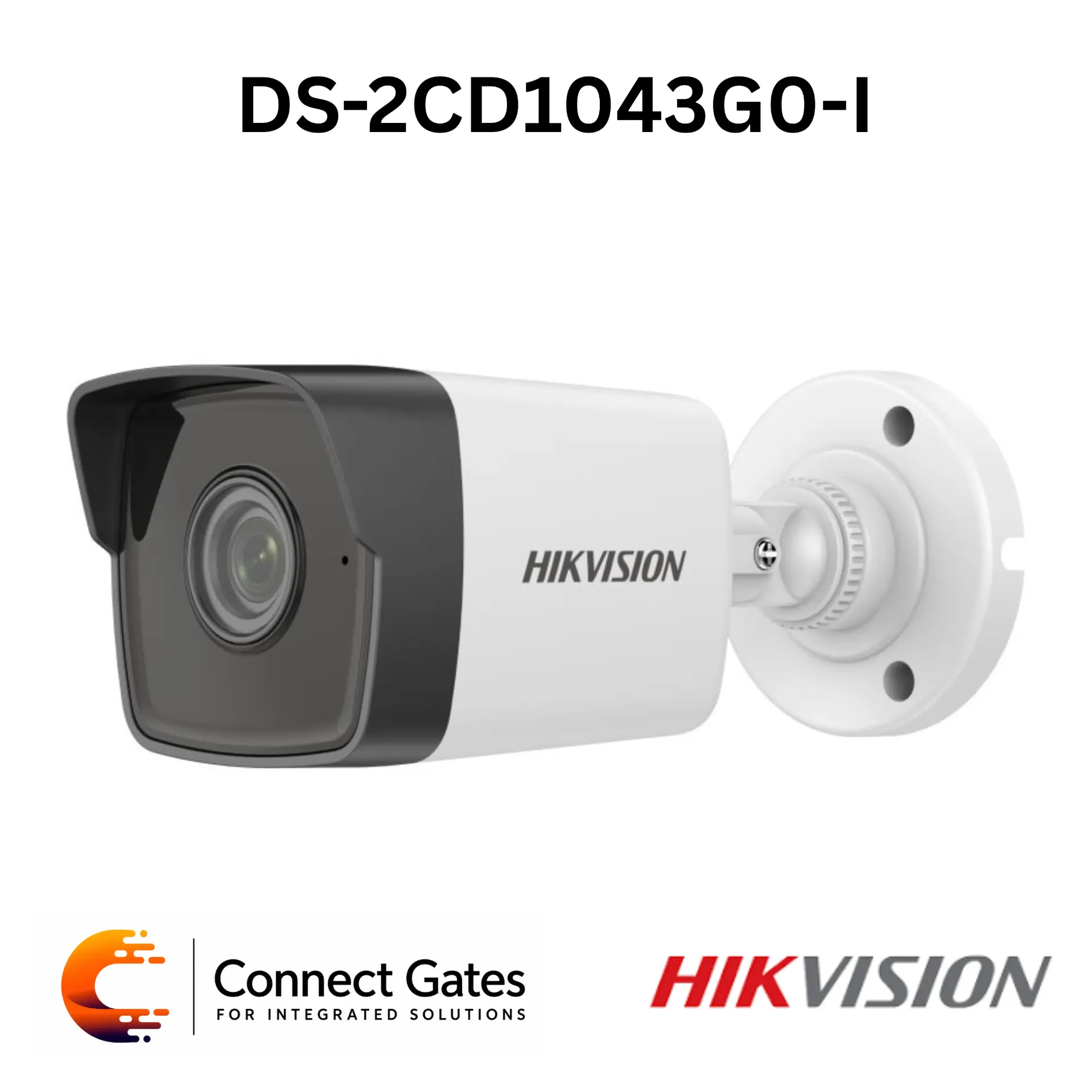

Hikvision DS-2CD1043G0-I – 4MP Fixed Bullet Network Camera with EXIR 2.0, 120 dB WDR, H.265+ & IP67
Overview:
The Hikvision DS-2CD1043G0-I is a 4MP Fixed Bullet Network Camera designed for indoor and outdoor surveillance. It provides 4MP high-quality imaging, 120 dB WDR for strong backlight scenes, EXIR 2.0 infrared technology with IR range up to 30 m, H.265+ compression, and IP67 water and dust protection. The -UF version also supports built-in microphone and microSD storage up to 256 GB.
Key Features:
• 4MP high-quality imaging with up to 2560 × 1440 resolution
• EXIR 2.0 infrared technology for improved night vision performance
• IR night vision up to 30 m
• 120 dB WDR for clear imaging in strong backlight
• Efficient H.265+ compression to reduce bandwidth and storage usage
• 2.8 mm and 4 mm fixed lens options
• Supports BLC and 3D DNR image enhancement
• Supports motion detection, video tampering and exception alerts
• Supports main stream and sub-stream
• Supports H.265, H.264, H.265+ and H.264+
• Built-in microphone available in -UF version
• MicroSD card storage up to 256 GB available in -UF version
• Compatible with iVMS-4200 and Hik-Connect
• Supports 12V DC and PoE 802.3af
• IP67 water and dust resistant
• Compact bullet design suitable for indoor and outdoor installation
Technical Specifications:
• Model: DS-2CD1043G0-I
• Camera Type: 4MP Fixed Bullet Network Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color 0.01 Lux @ F2.0, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• 2.8 mm FOV: Horizontal 98°, Vertical 53.1°, Diagonal 114.7°
• 4 mm FOV: Horizontal 78.7°, Vertical 43.1°, Diagonal 92.3°
• Lens Mount: M12
• Aperture: F2.0
• Supplement Light: IR
• IR Range: Up to 30 m
• IR Wavelength: 850 nm
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 180°, Rotate 0° to 360°
• Main Stream: Up to 2560 × 1440 at 20 fps
• Sub Stream: Up to 640 × 480 / 640 × 360
• Video Compression: H.265, H.264, H.264+, H.265+
• Video Bit Rate: 32 Kbps to 8 Mbps
• ROI: 1 fixed region for main stream
• Audio Compression: Supported in -UF version
• Built-in Microphone: Available in -UF version
• Environment Noise Filtering: Available in -UF version
• WDR: 120 dB
• Image Enhancement: BLC, 3D DNR
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface, ISAPI
• On-board Storage: MicroSD up to 256 GB in -UF version
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Client Software: iVMS-4200, Hik-Connect
• Basic Event: Motion detection, video tampering, exception
• Power Supply: 12V DC ±25% / PoE IEEE 802.3af Class 3
• Power Consumption: Max. 5 W by 12V DC / Max. 6.5 W by PoE
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Material: Metal and plastic
• Protection: IP67
• Dimensions: 177.6 mm × 66.2 mm × 67.8 mm
• Weight: Approx. 270 g
Applications:
• Shops and retail areas
• Offices and corridors
• Residential buildings and villas
• Warehouses and small factories
• Outdoor entrances and gates
• Parking areas
• General indoor and outdoor surveillance
• Projects requiring compact bullet cameras
• Sites requiring clear image quality with WDR
• Installations requiring reliable IP67 protection
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD1043G0-I for projects that need a reliable 4MP bullet IP camera with EXIR night vision, 120 dB WDR, H.265+ compression, and IP67 outdoor protection. It is a practical choice for shops, offices, entrances, villas, warehouses and general surveillance points where stable image quality and cost-effective performance are required.
