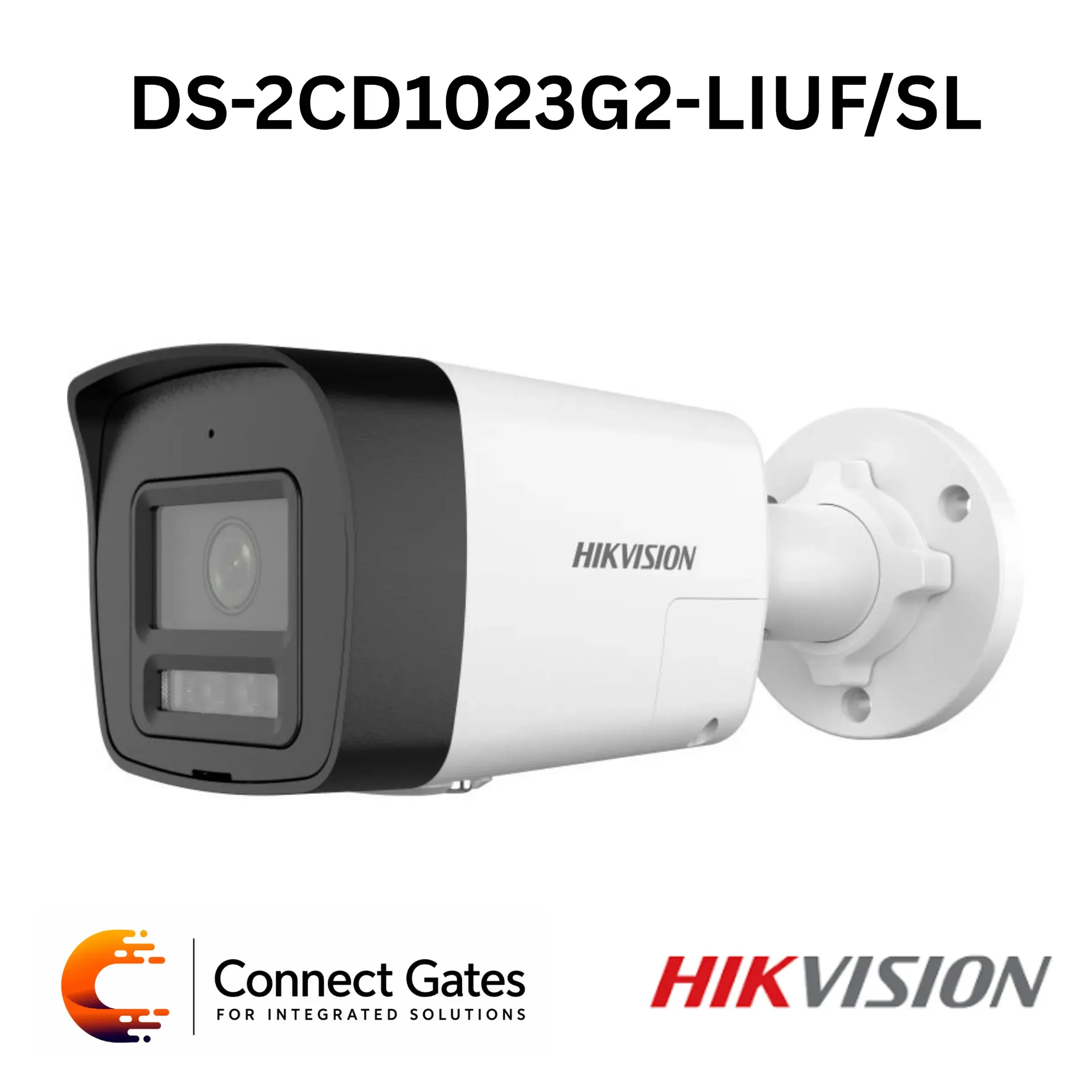

Hikvision DS-2CD1023G2-LIUF/SL – 2MP Smart Hybrid Light Fixed Bullet Network Camera with Human & Vehicle Detection, Two-Way Audio, 512GB microSD, 30m IR/White Light & IP67
Overview:
• The Hikvision DS-2CD1023G2-LIUF/SL is a 2MP Smart Hybrid Light fixed bullet network camera designed for advanced indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• The camera supports Human and Vehicle Detection, helping reduce false alarms by focusing on important security targets.
• Smart Hybrid Light technology combines IR and white light illumination for flexible night monitoring up to 30 meters.
• Built-in two-way audio provides real-time security communication through the built-in microphone and speaker.
• The camera supports on-board storage up to 512GB using microSD / microSDHC / microSDXC card.
• Event linkage supports audible warning and flashing light, making it suitable for active deterrence applications.
• With H.265+ compression, PoE, IP67 protection, Digital WDR, 3D DNR, and metal/plastic housing, it is suitable for entrances, gates, shops, villas, warehouses, parking areas, and outdoor monitoring points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• Human & Vehicle Detection: Supports alarm triggering by specified target types: human and vehicle.
• Smart Hybrid Light: Uses IR and white light for flexible night monitoring.
• 30m Supplement Light Range: Provides illumination up to 30 m.
• Built-in Two-Way Audio: Includes built-in microphone and speaker for real-time audio communication.
• Flashing Light Support: Provides visual deterrence through flashing light event linkage.
• Audible Warning: Supports audible warning through event linkage.
• microSD Storage: Supports on-board storage up to 512GB.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image clarity in challenging lighting conditions.
• BLC / HLC / 3D DNR: Enhances image quality and reduces noise.
• Privacy Mask: Supports 4 programmable polygon privacy masks.
• PoE Support: Power and data through one network cable.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1023G2-LIUF/SL
• Product Type: 2MP Smart Hybrid Light Fixed Bullet Network Camera
• Image Sensor: 1/2.9" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Field of View – 2.8 mm: Horizontal 103°, Vertical 56°, Diagonal 121°
• Field of View – 4 mm: Horizontal 83°, Vertical 44°, Diagonal 99°
• DORI – 2.8 mm: Detect 45 m, Observe 18 m, Recognize 9 m, Identify 4 m
• DORI – 4 mm: Detect 56 m, Observe 22 m, Recognize 11 m, Identify 5 m
• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265+ / H.265 / H.264+ / H.264
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR / VBR
• Region of Interest: 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz / 16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Bitrate: 64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC-LC
• Wide Dynamic Range: Digital WDR
• SNR: ≥52 dB
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Enhancement: BLC / HLC / 3D DNR
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Privacy Mask: 4 programmable polygon privacy masks
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• On-Board Storage: microSD / microSDHC / microSDXC card slot up to 512GB
• Built-in Microphone: Yes, 1 built-in microphone
• Built-in Speaker: Yes, max. power consumption 1.5W, max. sound pressure level 95 dB at 10 cm
• Reset Key: Yes
• Security: Password protection, complicated password, watermark, HTTP authentication, ONVIF authentication, security audit log, host authentication
• Simultaneous Live View: Up to 6 channels
• API: ONVIF Profile S / Profile T / Profile G, ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10 / IE 11 with plug-in; Chrome 57.0+ / Firefox 52.0+ / Edge 89+ using local service
• Basic Event: Motion detection with human and vehicle target types, video tampering alarm, exception
• Event Linkage: Upload to FTP / memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
• Flashing Light: Yes
• Power Supply: 12 VDC ±25%, 0.62A, max. 7.5W
• PoE: IEEE 802.3af, Class 3, max. 9W
• Material: Metal & Plastic
• Dimensions: 179 mm × 67.4 mm × 69.1 mm
• Package Dimensions: 216 mm × 121 mm × 118 mm
• Weight: Approx. 315 g
• With Package Weight: Approx. 520 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Heartbeat, Anti-Banding, Mirror, Password Protection, Password Reset via Email
• Language: English, Ukrainian
• Protection Rating: IP67
• Anti-Corrosion Level: No specific protection
• Available Models: DS-2CD1023G2-LIUF/SL 2.8 mm / DS-2CD1023G2-LIUF/SL 4 mm
Applications:
• Outdoor entrances
• Building gates
• Shops and retail stores
• Offices
• Villas and homes
• Clinics
• Small warehouses
• Parking entrances
• Corridors
• Reception areas
• Small business IP CCTV systems
• Areas requiring human and vehicle detection
• Locations requiring two-way audio
• Sites requiring local microSD recording
• Outdoor points requiring Smart Hybrid Light
• Projects requiring active deterrence with flashing light and audible warning
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need smarter detection and stronger deterrence features than standard 2MP bullet cameras.
• Human and Vehicle Detection makes it practical for entrances, gates, parking areas, shops, warehouses, villas, and outdoor monitoring points where false alarms need to be reduced.
• Smart Hybrid Light provides flexible night monitoring by using IR and white light according to the security requirement.
• The built-in microphone and speaker add value for sites that need two-way communication or audio warning, such as gates, reception entrances, service points, and small business entrances.
• On-board storage up to 512GB is useful for backup recording or small standalone camera installations.
• Best suited for customers who need a Hikvision IP bullet camera with Full HD resolution, smart human/vehicle detection, two-way audio, flashing light deterrence, microSD storage, PoE, IP67 outdoor protection, and efficient H.265+ recording.
