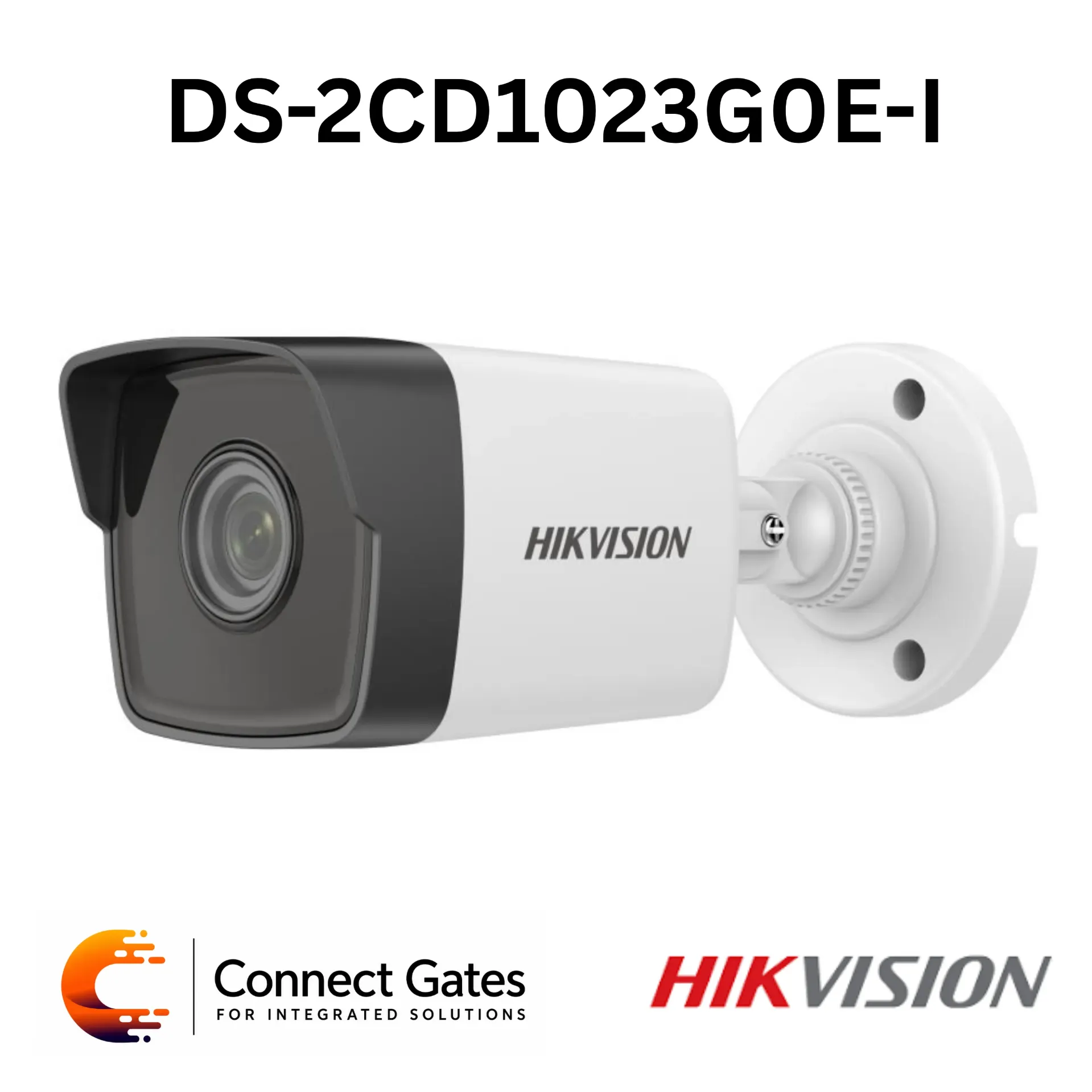

Hikvision DS-2CD1023G0E-I – 2MP Fixed Bullet Network Camera with EXIR 2.0, 30m IR, H.265+, Digital WDR & IP67
Overview:
• The Hikvision DS-2CD1023G0E-I is a 2MP fixed bullet network camera designed for reliable indoor and outdoor IP surveillance.
• It delivers high-quality imaging with 1920 × 1080 Full HD resolution.
• EXIR 2.0 advanced infrared technology provides long-range IR performance up to 30 meters for clear night monitoring.
• Digital WDR helps improve image clarity in strong backlight and mixed lighting conditions.
• The camera supports efficient H.265+ compression technology to reduce bandwidth and storage usage.
• With IP67 water and dust resistance, it is suitable for entrances, building gates, shops, offices, villas, warehouses, parking areas, and outdoor monitoring points.
• The fixed bullet design is practical for directional surveillance where the camera needs to clearly focus on entrances, corridors, gates, and perimeter points.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• Fixed Bullet Design: Suitable for focused indoor and outdoor monitoring points.
• EXIR 2.0 Technology: Advanced infrared performance for better night monitoring.
• 30m IR Night Vision: IR supplement light range up to 30 m.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image quality against strong backlight.
• BLC & 3D DNR: Enhances image clarity and reduces video noise.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• Wide Viewing Angle: 2.8 mm lens provides 112.1° horizontal field of view.
• ROI Support: Supports 1 fixed region for the main stream.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• Hik-Connect Support: Enables remote viewing and easier system management.
• PoE Support: Power and data through one network cable.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1023G0E-I
• Product Type: 2MP Fixed Bullet Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• Field of View – 2.8 mm: Horizontal 112.1°, Vertical 60.0°, Diagonal 132.2°
• Field of View – 4 mm: Horizontal 90.2°, Vertical 48.6°, Diagonal 107.6°
• Supplement Light Type: IR
• IR Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265 / H.264 / H.264+ / H.265+
• Video Compression – Sub-Stream: H.265 / H.264 / MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Region of Interest: 1 fixed region for main stream
• Wide Dynamic Range: Digital WDR
• SNR: ≥52 dB
• Image Enhancement: BLC / 3D DNR
• Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
• Day/Night Switch: Day / Night / Auto / Schedule
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10+ with plug-in; Chrome 57.0+ / Firefox 52.0+ plug-in free live view and local service
• Basic Event: Motion detection, video tampering alarm, exception
• Event Linkage: Upload to FTP, notify surveillance center, send email
• Power Supply: 12 VDC ±25%, 0.4A, max. 5W
• PoE: IEEE 802.3af, Class 3, 36V to 57V, 0.2A to 0.15A, max. 6.5W
• Dimensions: 177.6 mm × 66.2 mm × 67.8 mm
• Package Dimensions: 216 mm × 121 mm × 118 mm
• Weight: Approx. 270 g
• With Package Weight: Approx. 490 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Language: English, Ukrainian
• Protection Rating: IP67
• Available Models: DS-2CD1023G0E-I 2.8 mm / DS-2CD1023G0E-I 4 mm
Applications:
• Outdoor entrances
• Building gates
• Retail shops
• Offices
• Villas and homes
• Clinics
• Small warehouses
• Parking entrances
• Corridors
• Reception areas
• Small business IP CCTV systems
• Outdoor points requiring IP67 protection
• Areas requiring 30 m IR night monitoring
• Sites requiring focused bullet camera coverage
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need a reliable 2MP bullet camera with strong night vision and outdoor protection.
• EXIR 2.0 with 30 m IR makes it suitable for entrances, gates, corridors, shops, offices, small warehouses, villas, and outdoor monitoring points.
• Digital WDR helps improve image visibility in backlight areas such as doors, glass fronts, entrances, and mixed-light locations.
• H.265+ compression helps reduce storage and bandwidth usage, making it practical for cost-effective IP camera systems.
• Best suited for customers who need a Hikvision IP bullet camera with Full HD resolution, 30 m night vision, PoE, IP67 outdoor protection, and efficient recording performance.
