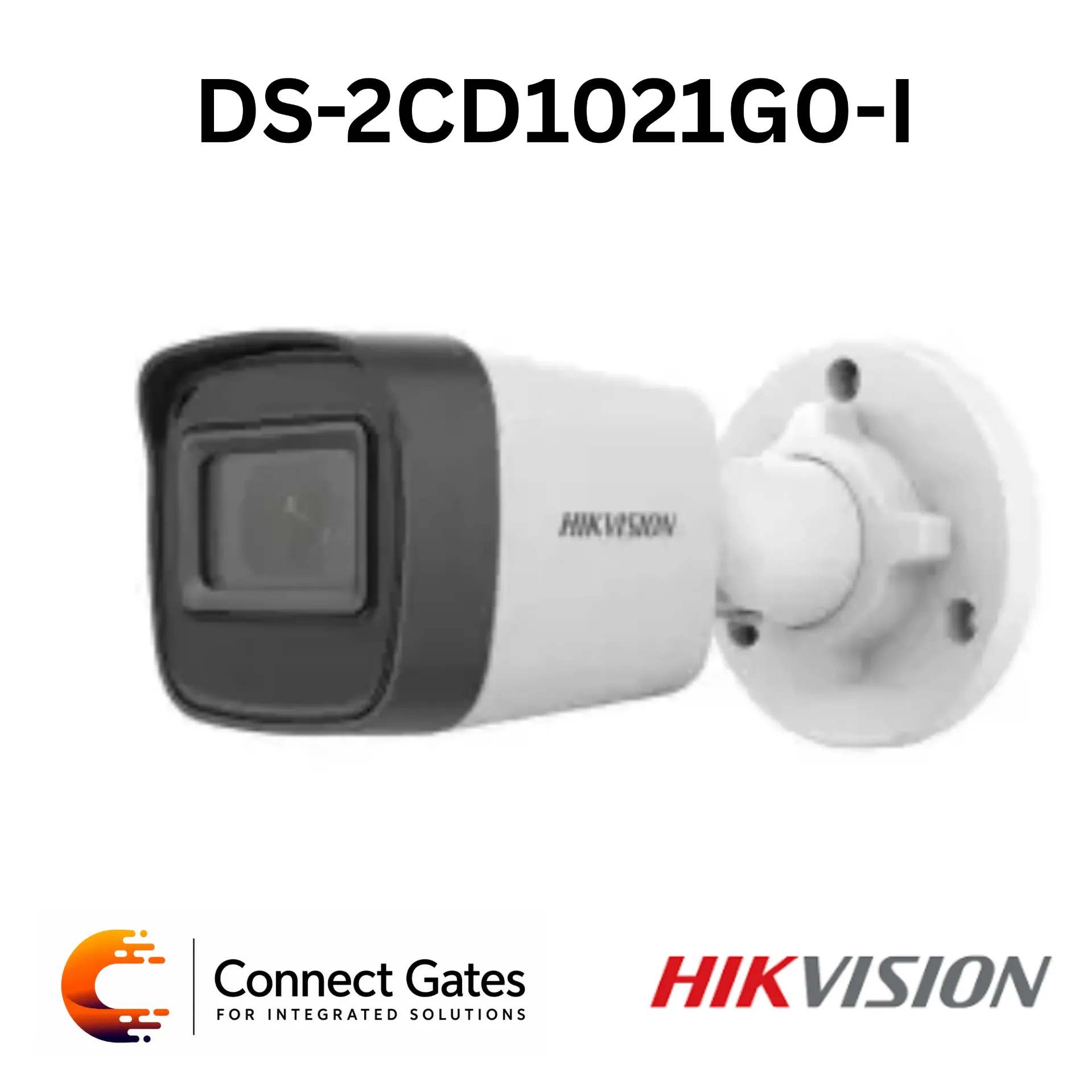

Hikvision DS-2CD1021G0-I – 2MP Fixed Bullet Network Camera with Human Detection, 30m IR, PoE & IP67
Overview:
• The Hikvision DS-2CD1021G0-I is a 2MP fixed bullet network camera designed for reliable IP surveillance in indoor and outdoor installations.
• It delivers high-quality imaging with 1920 × 1080 resolution for clear Full HD monitoring.
• The camera supports Human Detection, helping reduce false alarms by focusing on human-related motion events.
• IR illumination provides up to 30 meters night vision for low-light and night monitoring.
• The camera supports H.265+ / H.265 / H.264+ / H.264 video compression, helping reduce bandwidth and storage usage.
• Power over Ethernet makes installation easier by allowing power and data transmission through a single network cable.
• With IP67 protection, it is suitable for outdoor entrances, shops, villas, warehouses, offices, and general IP CCTV installations.
Key Features:
• 2MP Full HD Imaging: Provides 1920 × 1080 resolution for clear video monitoring.
• Human Detection: Supports alarm triggering by specified target type, focusing on human detection.
• 30m IR Night Vision: IR supplement light range up to 30 m for night monitoring.
• Fixed Lens Options: Available with 2.8 mm and 4 mm fixed lens options.
• PoE Support: Easy installation using Power over Ethernet.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• H.265+ Compression: Reduces bandwidth and storage usage.
• Digital WDR: Improves image clarity in challenging lighting conditions.
• BLC / HLC / 3D DNR: Enhances image quality and reduces noise.
• Smart Supplement Light: Helps optimize IR performance at night.
• Up to 6 Live View Channels: Supports simultaneous live view up to 6 channels.
• Hik-Connect Support: Enables remote viewing and easier system management.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CD1021G0-I
• Product Type: 2MP Fixed Bullet Network Camera
• Image Sensor: 1/2.9" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.01 Lux @ F2.2, AGC ON; B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.2
• Field of View – 2.8 mm: Horizontal 94°, Vertical 51°, Diagonal 112°
• Field of View – 4 mm: Horizontal 80°, Vertical 44°, Diagonal 94°
• DORI – 2.8 mm: Detect 48 m, Observe 19 m, Recognize 9 m, Identify 4 m
• DORI – 4 mm: Detect 55 m, Observe 22 m, Recognize 11 m, Identify 5 m
• Supplement Light Type: IR
• IR Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720
• Sub-Stream: 50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360
• Video Compression – Main Stream: H.265+ / H.265 / H.264+ / H.264
• Video Compression – Sub-Stream: H.265 / H.264
• Video Bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR / VBR
• Wide Dynamic Range: Digital WDR
• SNR: ≥52 dB
• Day/Night Switch: Day / Night / Auto / Schedule
• Image Enhancement: BLC / HLC / 3D DNR
• Image Settings: Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Ethernet Interface: 1 × RJ45 10M / 100M self-adaptive Ethernet port
• Security: Password protection, complicated password, watermark, HTTP authentication, security audit log, host authentication
• Simultaneous Live View: Up to 6 channels
• API: ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv4, UDP, QoS
• Users: Up to 32 users
• User Levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect
• Web Browser: IE 10 / IE 11 with plug-in; Chrome 57.0+ / Firefox 52.0+ using local service
• Basic Event: Motion detection with human target type, exception
• Event Linkage: Notify surveillance center
• Power Supply: 12 VDC ±25%, 0.41A, max. 5W
• PoE: IEEE 802.3af, Class 3, max. 6.5W
• Material: Plastic + Metal
• Dimensions: 138.8 mm × 60.9 mm × 57.9 mm
• Weight: Approx. 200 g
• Package Dimensions: 163 mm × 75 mm × 75 mm
• With Package Weight: Approx. 286 g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• Storage Conditions: -30°C to 60°C, humidity 95% or less, non-condensing
• General Functions: Heartbeat, Anti-Banding, Mirror, Password Protection, Password Reset via Email
• Language: English, Thailand
• Protection Rating: IP67
• Anti-Corrosion Level: No specific protection
• Available Models: DS-2CD1021G0-I 2.8 mm / DS-2CD1021G0-I 4 mm
Applications:
• Outdoor entrances
• Building gates
• Shops and retail stores
• Offices
• Villas and homes
• Clinics
• Small warehouses
• Parking entrances
• Corridors
• Small business IP CCTV systems
• Areas requiring human detection
• Outdoor points requiring IP67 protection
• Projects requiring PoE installation
Connect Gates Recommendation:
• Recommended for small and medium IP CCTV projects that need a reliable 2MP bullet camera with PoE and outdoor protection.
• Human Detection makes it more practical than basic motion-only cameras because it helps reduce false alarms from irrelevant movement.
• The 30 m IR range is suitable for entrances, gates, shops, offices, small warehouses, and outdoor monitoring points.
• PoE support simplifies installation because power and data can run through one network cable.
• Best suited for customers who need a cost-effective Hikvision IP camera with Full HD resolution, human detection, night vision, IP67 protection, and easy network installation.
