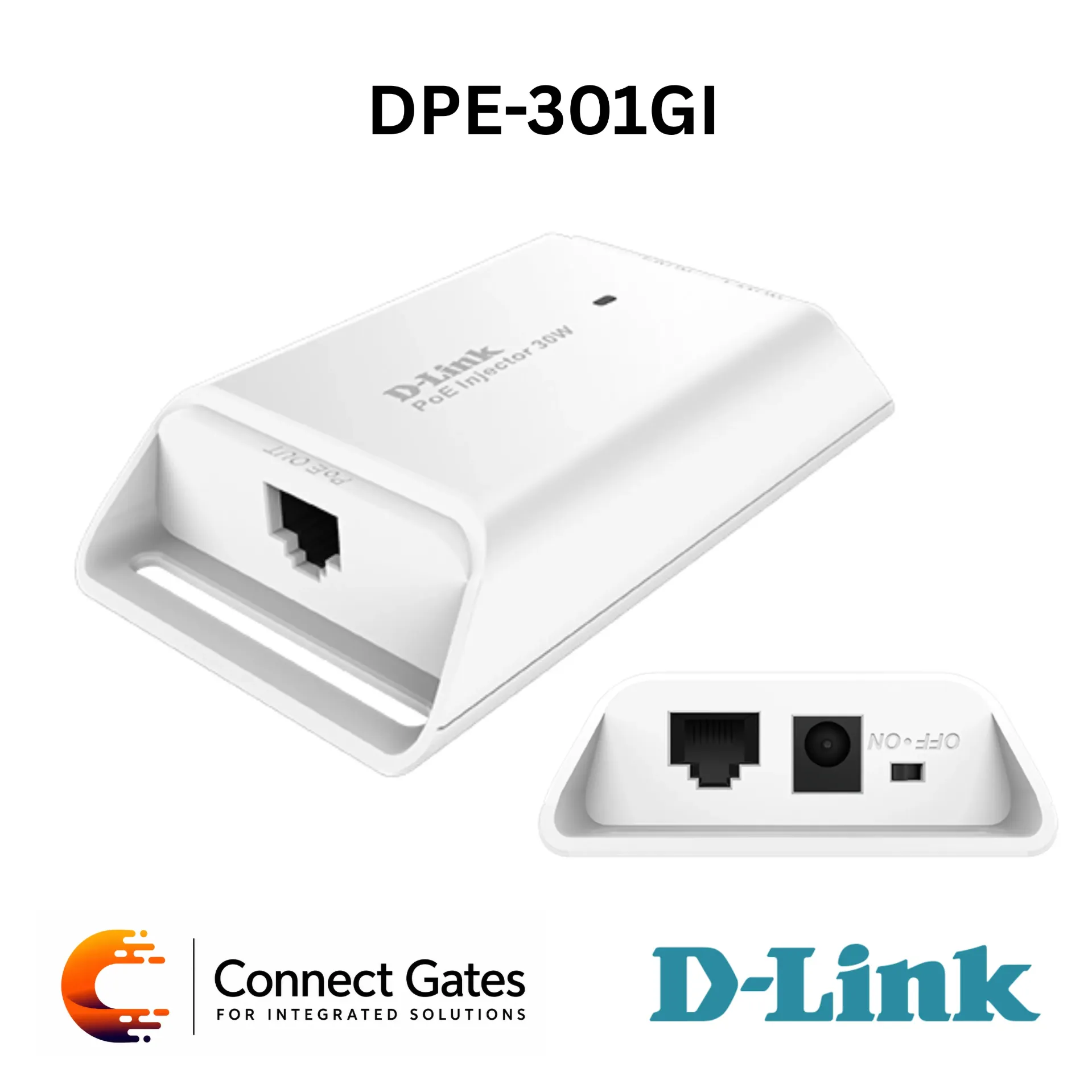

D-Link DPE-301GI – 1-Port Gigabit PoE Injector with 30W PoE+ Output, 54V Power Adapter, 10/100/1000Mbps RJ45 & Plug-and-Play Installation

• The D-Link DPE-301GI is a 1-Port Gigabit PoE Injector designed to combine electrical power and Gigabit network data over a single Ethernet cable.

• It allows regular non-PoE switches or routers to power remote PoE-capable devices such as IP cameras, PTZ cameras, wireless access points, and other PoE devices.

• The injector supports IEEE 802.3af PoE and IEEE 802.3at PoE+, delivering up to 30W of power for compatible PoE devices.

• It supports 10/100/1000Mbps Gigabit Ethernet, making it suitable for high-bandwidth network devices and surveillance applications.

• The DPE-301GI provides one data input RJ45 port and one PoE + data output RJ45 port, with auto-negotiation and half / full-duplex support.

• It is plug-and-play, requires no software, includes power and link LED indicators, and comes with a 54V / 0.6A power adapter.

• 1-Port Gigabit PoE Injector.

• Combines power and data over one Ethernet cable.

• 1 × Gigabit data input RJ45 port.

• 1 × Gigabit PoE + data output RJ45 port.

• Supports 10/100/1000Mbps Ethernet.

• Supports IEEE 802.3af PoE.

• Supports IEEE 802.3at PoE+.

• Delivers up to 30W output power.

• Output: 0.6A at 54V.

• Includes 54V / 0.6A power adapter.

• Plug-and-play installation.

• No software required.

• Auto-negotiation on Ethernet ports.

• Supports half / full-duplex.

• Overcurrent protection.

• Automatically regulates power output to protect connected devices.

• Compatible with standard PoE devices.

• Suitable for PoE IP cameras, PTZ cameras, access points, and remote PoE installations.

• Product Type: 1-Port Gigabit PoE Injector

• Brand: D-Link

• Model: DPE-301GI

• Data Input Port: 1 × 10/100/1000BASE-T RJ45 Port

• PoE + Data Output Port: 1 × 10/100/1000BASE-T RJ45 Port

• Duplex Support: Half / Full-Duplex

• Data Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• PoE Output Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

• PoE Output Power: Up to 30W

• Output Current / Voltage: 0.6A at 54V

• Power Adapter: 54V / 0.6A, Replaceable AC Plug

• Maximum Power Consumption: 32.4W

• Maximum Cable Distance: Up to 100m as per IEEE 802.3u specifications

• LED Indicators: Power, Link

• Protection: Overcurrent Protection, Short Circuit Protection

• Dimensions: 109.8 × 62.2 × 24.5 mm

• Weight: 70g

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -30°C to 70°C

• Operating Humidity: 5% to 95%, Non-Condensing

• Storage Humidity: 5% to 95%, Non-Condensing

• Certifications: CE, FCC, VCCI, RCM, RoHS, BSMI

• Powering PoE IP cameras from a non-PoE switch.

• PTZ camera and speed dome camera installations.

• Wireless access point installations in ceilings, walls, corridors, and remote areas.

• CCTV systems where a nearby power outlet is unavailable.

• Small office, villa, warehouse, shop, and surveillance network projects.

• Network installations requiring Gigabit data and PoE power over one cable.

• Using with a PoE splitter to power selected non-PoE devices.

• Remote PoE device deployment without replacing existing non-PoE network equipment.

• Recommended for projects where a non-PoE switch needs to power one PoE device over Ethernet cable.

• Suitable for IP cameras, PTZ cameras, access points, routers, and remote PoE devices requiring up to 30W.

• Best used when the client needs Gigabit data, IEEE 802.3af/at PoE+ support, simple plug-and-play installation, and up to 100m cable distance without installing a local power outlet.
