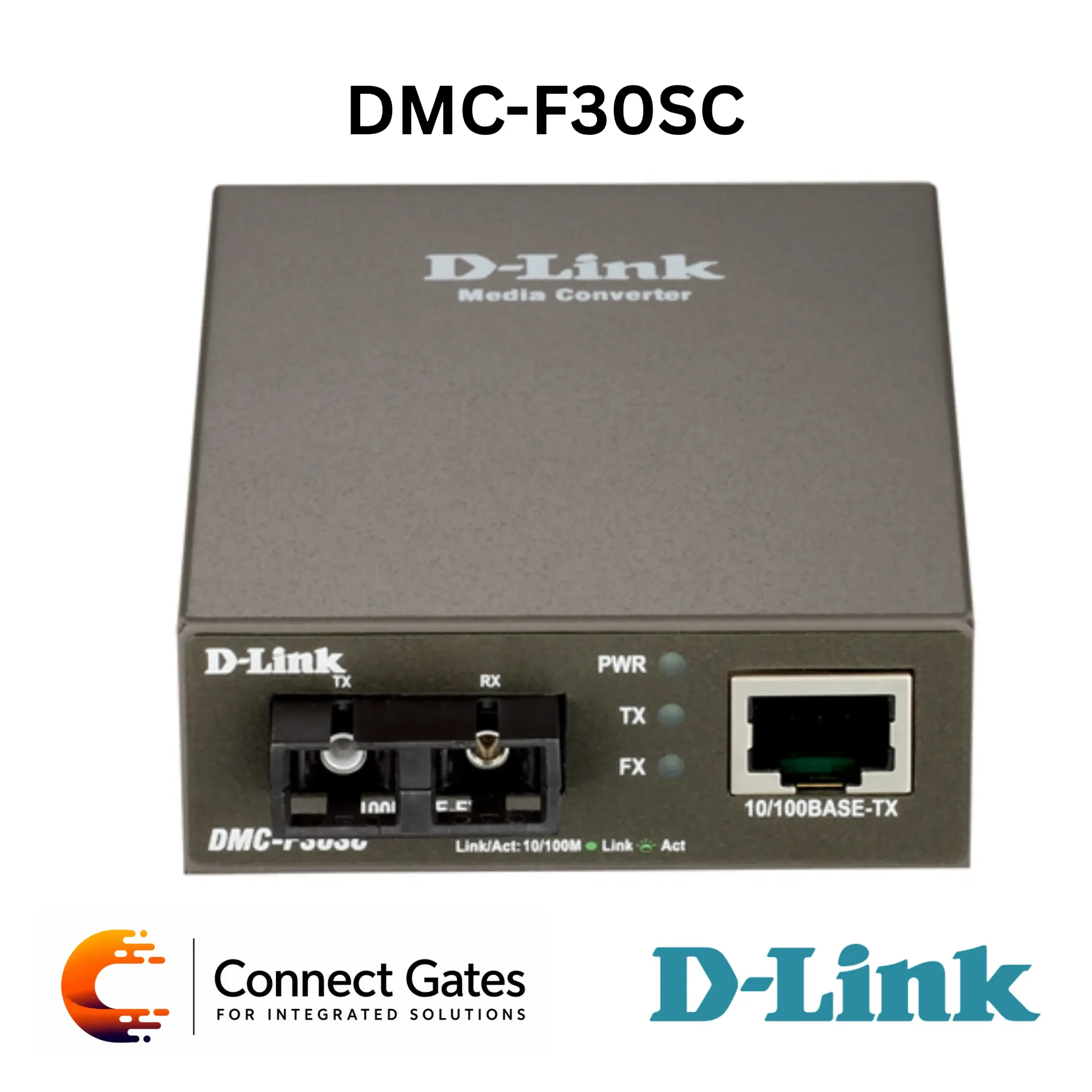

D-Link DMC-F30SC – 10/100BASE-TX to 100BASE-FX SC Single-Mode Standalone Media Converter, 30km Fiber Distance, Auto MDI/MDIX & Plug-and-Play Design

• The D-Link DMC-F30SC is a Standalone Media Converter designed to convert a 10/100BASE-TX Ethernet connection into a 100BASE-FX SC single-mode fiber connection.

• It is suitable for extending Ethernet networks over fiber where copper cable distance is limited, supporting fiber transmission up to 30km.

• The converter has a compact standalone form factor, making it suitable for installation in telecom cabinets, distribution boxes, offices, and limited-space network points.

• It supports 10/100 Mbps half/full-duplex operation, Auto MDI/MDIX, Auto-Negotiation, wire-speed reception and transmission, and cut-through forwarding for low-latency performance.

• The DMC-F30SC is a simple plug-and-play fiber conversion solution for long-distance point-to-point network links and fiber backbone extensions.

• Standalone media converter

• Converts 10/100BASE-TX to 100BASE-FX

• SC single-mode fiber interface

• Fiber distance up to 30km

• 1 × 10/100 Mbps RJ45 LAN port

• Auto MDI/MDIX support

• Auto-Negotiation support

• Half / full-duplex at 10/100 Mbps

• Cut-through forwarding mode

• Low latency operation

• Wire-speed reception and transmission

• Compact standalone design

• Plug-and-play installation

• 5V / 1A external power adapter

• Suitable for long-distance fiber network extension

• Brand: D-Link

• Model: DMC-F30SC

• Product Type: Standalone Media Converter

• Conversion Type: 10/100BASE-TX to 100BASE-FX

• Fiber Type: Single-Mode Fiber

• Fiber Connector: SC

• Maximum Fiber Distance: 30km

• Installation: Standalone / Plug and Play

• Application: Ethernet to Fiber Conversion, Long Distance Network Extension, Telecom Cabinets, Distribution Boxes

• Copper Port: 1 × 10/100 Mbps RJ45 Port

• Fiber Port: 1 × 100BASE-FX SC Single-Mode Fiber Port

• LAN Speed: 10/100 Mbps

• Auto MDI/MDIX: Supported

• Auto-Negotiation: Supported

• Duplex Mode: Half / Full-Duplex at 10/100 Mbps

• Fast Ethernet Standard: IEEE 802.3u

• Flow Control: IEEE 802.3x

• Back Pressure: Supported at Half-Duplex Operation

• Wire-Speed Reception and Transmission: Supported

• Forwarding Mode: Cut-Through

• Packet Buffer Memory: 128Kbits

• Switching Capacity: 2Gbps

• 10 Mbps: 14,880pps

• 100 Mbps: 148,800pps

• External Power Adapter: Switching 5V / 1A Level V Power Adapter

• ErP Compliance: Supported

• Maximum Power Consumption at 240V: DC 1.42W / AC 2.21W

• Standby Power Consumption at 240V: DC 0.94W / AC 1.58W

• Maximum Heat Dissipation: 7.54BTU/h

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -10°C to 70°C

• Operating Humidity: 10% to 90%

• Storage Humidity: 5% to 90%

• MTBF: 482,583 Hours

• EMI: CE Class A, FCC Class A, VCCI Class A, BSMI Class A

• Safety: LVD, UL / cUL

• Ethernet to fiber conversion

• Single-mode fiber network extension

• Office network fiber uplinks

• Telecom cabinet installations

• Distribution box installations

• Long-distance network links up to 30km

• CCTV and data network fiber backbone

• Point-to-point fiber connectivity

• Space-saving standalone fiber conversion

• Connect Gates recommends the D-Link DMC-F30SC for projects that require reliable 10/100 Mbps Ethernet to single-mode fiber conversion over long distances.

• It is suitable for extending network connections up to 30km over fiber where copper cabling distance is not enough.

• The SC single-mode interface, Auto MDI/MDIX, Auto-Negotiation, and plug-and-play operation make it practical for quick deployment.

• For proper installation, Connect Gates recommends checking the fiber type, SC connector compatibility, fiber distance, media converter power location, and required network speed before deployment.
