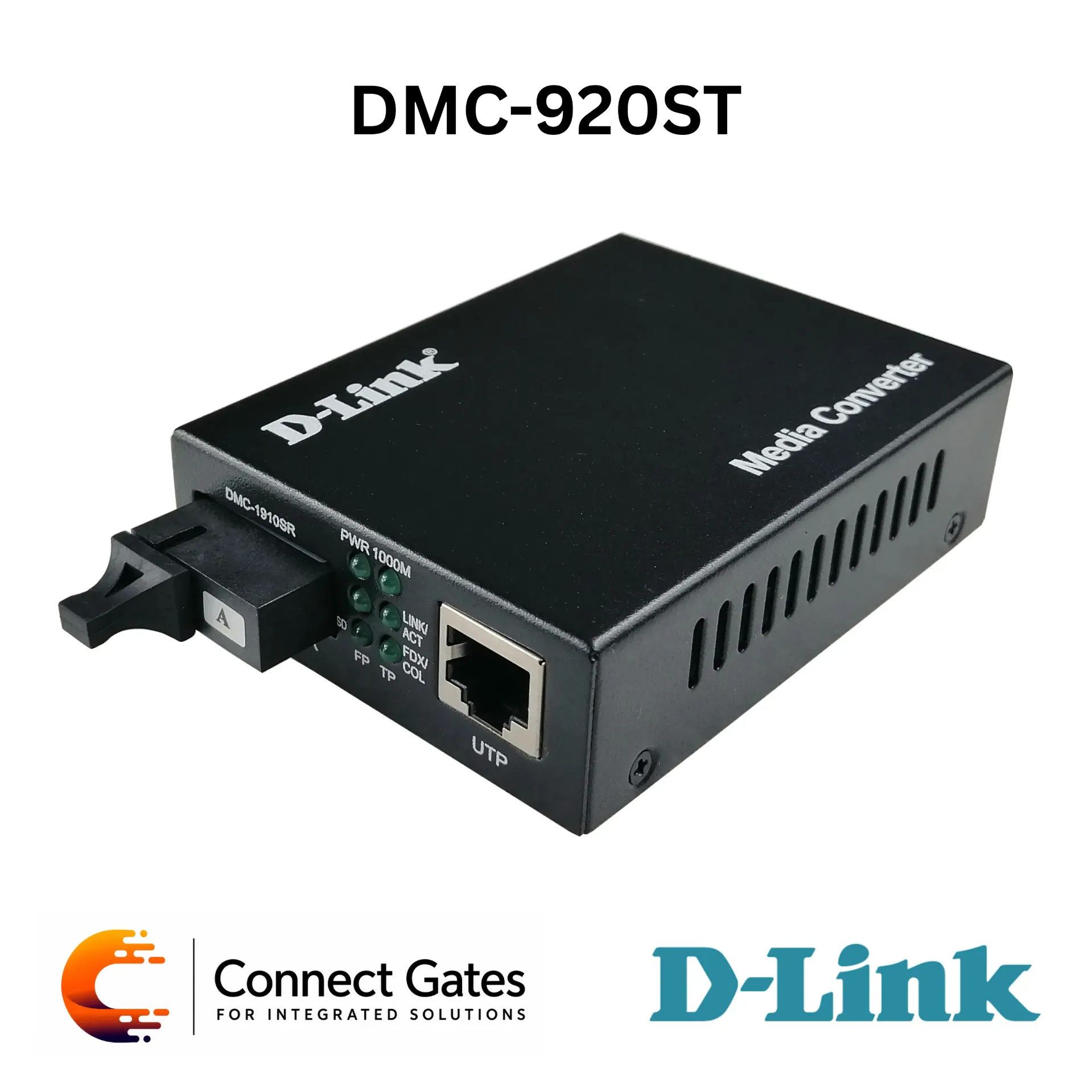

D-Link DMC-920ST – 10/100BASE-TX to 100BASE-SX/LX Bi-Directional SC Single-Mode Media Converter, 20km Fiber Distance, TX 1550nm / RX 1310nm

• The D-Link DMC-920ST is a Fast Ethernet bi-directional media converter designed to convert 10/100BASE-TX copper Ethernet to 100BASE-SX/LX single-mode fiber.

• It provides 1 × 10/100BASE-TX RJ45 port and 1 × 100BASE-SX/LX bi-directional SC fiber port.

• The converter supports single-mode fiber optic cable with SC connector and transmission distance up to 20km.

• The DMC-920ST uses TX 1550nm / RX 1310nm wavelength operation, making it suitable for single-fiber bi-directional links when paired with the opposite wavelength model.

• It supports Half-Duplex / Full-Duplex operation, Auto-MDI/MDIX, store-and-forward transmission, and full wire-speed forwarding rate.

• Fast Ethernet bi-directional media converter

• 10/100BASE-TX copper to 100BASE-SX/LX fiber conversion

• 1 × RJ45 copper port

• 1 × bi-directional SC fiber port

• Single-mode fiber support

• Fiber distance up to 20km

• TX 1550nm / RX 1310nm wavelength

• Auto-MDI/MDIX support

• Half-Duplex / Full-Duplex operation

• Store-and-forward transmission

• Full wire-speed forwarding rate

• Plug-and-Play operation

• Can be used standalone or mounted in DMC-1014 chassis

• Brand: D-Link

• Model: DMC-920ST

• Product Type: Fast Ethernet Bi-Directional Media Converter

• Conversion Type: 10/100BASE-TX to 100BASE-SX/LX

• Fiber Type: Single-Mode Fiber

• Fiber Connector: Bi-Directional SC

• Maximum Fiber Distance: 20km

• Application: Fast Ethernet Fiber Extension, Single-Fiber Copper-to-Fiber Conversion, Long-Distance Network Connectivity

• Copper Port: 1 × 10/100BASE-TX RJ45 Port

• Fiber Port: 1 × 100BASE-SX/LX Bi-Directional SC Port

• Media Exchange Interface: Auto-MDI/MDIX

• Ethernet: IEEE 802.3 for 10BASE-T/F

• Fast Ethernet: IEEE 802.3u for 100BASE-TX/FX

• 10BASE-T: 2-Pair Cat.3 / Cat.4 / Cat.5 / Cat.5e UTP up to 100m

• 10/100BASE-TX: 2-Pair Cat.5 / Cat.5e UTP up to 100m

• 100BASE-SX/LX: Single-Mode Fiber Optic Cable with SC Connector up to 20km

• Transmission Wavelength: TX 1550nm

• Receiving Wavelength: RX 1310nm

• Supported Fiber Cable Length: Up to 20km

• Duplex Mode: Half-Duplex / Full-Duplex

• Transmission Mode: Store-and-Forward

• Forwarding Rate: Full Wire-Speed Forwarding Rate

• Plug-and-Play: Supported

• Power Input: 5V / 1A External Power Adapter

• Dimensions: 95 × 70 × 26mm

• Chassis Support: Compatible with DMC-1014 Media Converter Chassis

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -20°C to 70°C

• Operating Humidity: 5% to 90% RH, Non-Condensing

• EMI Certifications: FCC, CE, VCCI

• Fast Ethernet copper-to-fiber conversion

• Single-fiber bi-directional network extension

• Building-to-building fiber links up to 20km

• CCTV and data network fiber backbone

• Factory, warehouse, and office network expansion

• Telecom room and network cabinet installations

• Long-distance fiber connection where one fiber core is available

• Connect Gates recommends the D-Link DMC-920ST for projects requiring single-fiber Fast Ethernet conversion up to 20km.

• It is suitable for CCTV networks, office networks, factories, warehouses, and building-to-building connections where fiber cores are limited.

• The TX 1550nm / RX 1310nm wavelength should be matched with the opposite-end compatible model to ensure correct bi-directional communication.

• Before installation, Connect Gates recommends checking single-mode fiber availability, SC connector type, required distance, wavelength pairing, RJ45 port speed, power availability, and whether standalone or DMC-1014 chassis mounting is required.
