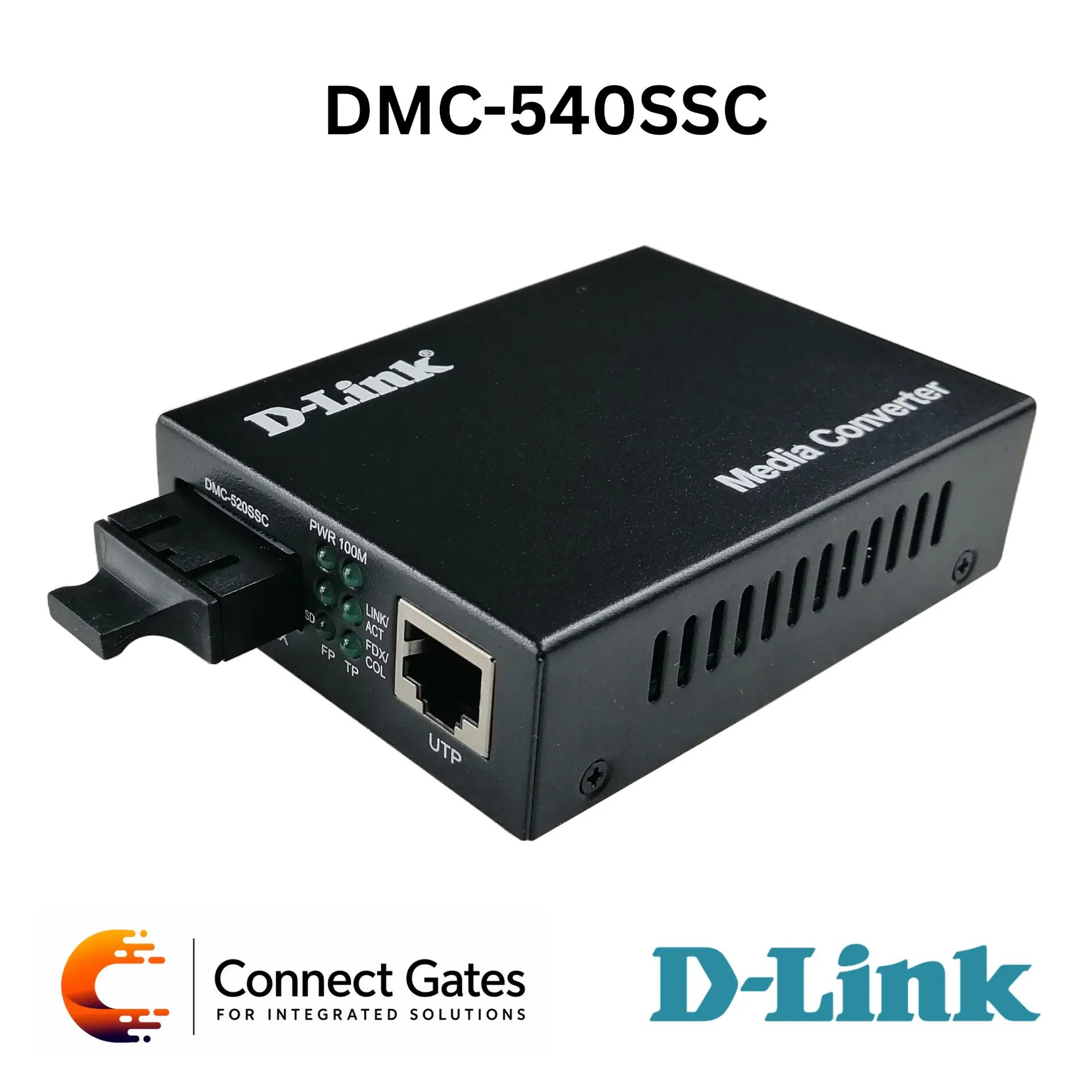

D-Link DMC-540SSC – Fast Ethernet Single-Mode SC Media Converter with 10/100BASE-TX to 100BASE-FX, 40km Fiber Distance & 1310nm Wavelength

• The D-Link DMC-540SSC is a Fast Ethernet Media Converter designed to convert 10/100BASE-TX copper Ethernet connections into 100BASE-FX fiber optic connections.

• It is suitable for extending network connectivity over long distances using single-mode fiber optic cable.

• The device supports SC fiber connectivity with a maximum fiber transmission distance of up to 40 km.

• It provides plug-and-play installation, making it easy to deploy without additional software configuration.

• The DMC-540SSC can be used as a standalone media converter or installed inside the D-Link DMC-1014 Media Converter Chassis for rack-mounted multi-converter applications.

• It is ideal for connecting remote network points, security systems, control rooms, factory networks, and enterprise fiber backbone extensions.

• Fast Ethernet copper-to-fiber media conversion.

• Converts 10/100BASE-TX RJ-45 Ethernet to 100BASE-FX fiber optic connection.

• Single-mode fiber support for long-distance transmission up to 40 km.

• SC fiber connector for stable fiber connectivity.

• 1310 nm fiber wavelength.

• Supports half-duplex and full-duplex operation.

• Auto-MDI/MDIX support for easier Ethernet cable connection.

• Store-and-forward transmission mode.

• Full wire-speed forwarding rate for stable data transfer.

• Plug-and-play operation with no additional software required.

• Can operate standalone or be mounted inside the DMC-1014 chassis.

• Compact design suitable for cabinets, racks, and network rooms.

• Product Type: Fast Ethernet Media Converter

• Brand: D-Link

• Model: DMC-540SSC

• Copper Port: 1 × 10/100BASE-TX RJ-45 port

• Fiber Port: 1 × 100BASE-FX SC port

• Fiber Type: Single-mode fiber optic cable

• Fiber Connector: SC

• Maximum Fiber Distance: Up to 40 km

• Fiber Wavelength: 1310 nm

• Ethernet Standards: IEEE 802.3 10BASE-T/F, IEEE 802.3u 100BASE-TX/FX

• Duplex Mode: Half-duplex / Full-duplex

• Media Exchange Interface: Auto-MDI/MDIX

• Transmission Mode: Store-and-forward

• Forwarding Rate: Full wire-speed forwarding rate

• Copper Cable Support: Cat. 3/4/5/5e UTP for 10BASE-T up to 100 m, Cat. 5/5e UTP for 10/100BASE-TX up to 100 m

• Power Input: 5 V / 1 A external power adapter

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 70°C

• Humidity: 5% to 90% RH, non-condensing

• Dimensions: 95 × 70 × 26 mm

• Certifications: FCC, CE, VCCI

• Extending Ethernet networks over single-mode fiber links.

• CCTV and security network fiber backbone connections.

• Factory, warehouse, and industrial network extensions.

• Connecting remote buildings or network cabinets.

• Control room and data room network integration.

• Long-distance fiber connectivity for access control, IP cameras, and low-current systems.

• Recommended for projects that require stable Fast Ethernet fiber extension over long distances up to 40 km.

• Suitable for CCTV, access control, industrial, and enterprise networks where copper cable distance is not enough.

• Best used with proper single-mode fiber cable, SC termination, and professional testing to ensure stable performance.
