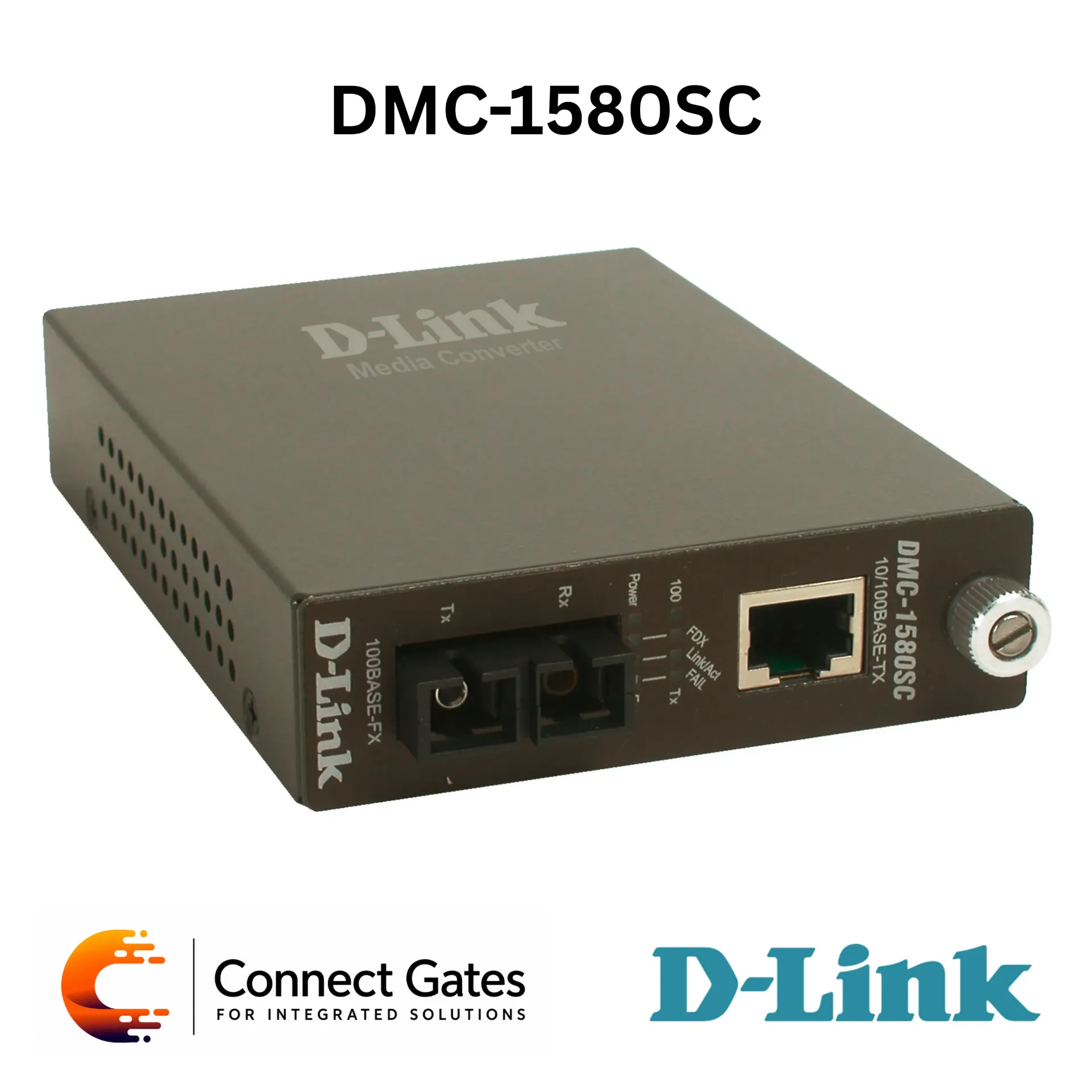

D-Link DMC-1580SC – 10/100BASE-TX to 100BASE-FX SC Single-Mode Smart Media Converter, 80km Fiber Distance, LLCF/LLR, Link Pass Through & Chassis Support
Overview:
• The D-Link DMC-1580SC is a Smart Media Converter designed to convert 10/100BASE-TX Fast Ethernet twisted-pair signals into 100BASE-FX single-mode fiber signals.
• It supports single-mode fiber using an SC connector, with a maximum fiber cable distance up to 80km, making it suitable for long-distance network extension.
• The converter provides intelligent functions including LLCF, LLR, Link Pass Through, store-and-forward mechanism, back-pressure, and IEEE 802.3x Flow Control.
• It includes Auto-Negotiation of speed and duplex mode on the 100BASE-TX port, plus Auto MDI/MDIX for easier installation.
• The DMC-1580SC can be used as a standalone media converter or installed inside a compatible chassis, where it supports hot-swappable operation and management through the Intelligent Chassis System.
Key Features:
• Smart media converter
• 10/100BASE-TX to 100BASE-FX conversion
• SC single-mode fiber interface
• Fiber distance up to 80km
• One-channel media conversion
• Auto-negotiation on 100BASE-TX port
• Auto MDI/MDIX on 100BASE-TX port
• Link Pass Through support
• LLCF and LLR support
• Store-and-forward mechanism
• Back-pressure support
• IEEE 802.3x Flow Control
• Full wire-speed forwarding rate
• Front panel status LEDs
• Standalone or chassis installation
• Hot-swappable when used with chassis
• Manageable through Intelligent Chassis System
Technical Specifications:
General:
• Brand: D-Link
• Model: DMC-1580SC
• Product Type: Smart Media Converter
• Conversion Type: 10/100BASE-TX to 100BASE-FX
• Fiber Type: Single-Mode Fiber
• Fiber Connector: SC
• Maximum Fiber Distance: 80km
• Installation: Standalone / Chassis Installation
• Management: Manageable through Intelligent Chassis System
• Application: Long-Distance Fiber Extension, Ethernet to Fiber Conversion, Smart Chassis-Based Media Conversion
Network Interface:
• Copper Port: 1 × RJ45 10/100BASE-TX Port
• Fiber Port: 1 × 100BASE-FX SC Single-Mode Fiber Port
• Copper Speed: 10/100Mbps
• Fiber Speed: 100Mbps
• Auto MDI/MDIX: Supported on 100BASE-TX Port
• Auto-Negotiation: Speed and Duplex Mode on 100BASE-TX Port
Media Converter Features:
• Link Pass Through: Supported
• LLCF / LLR: Supported
• Duplex Mode Configuration: Sliding Switch for Fixed Half / Full Duplex Modes
• Forced / Auto-Negotiation Mode: Sliding Switch Supported
• Speed Setting: Sliding Switch Supported
• LLCF / LLR Setting: Sliding Switch Supported
• Transmission Method: Store-and-Forward
• Back Pressure: Supported
• Flow Control: IEEE 802.3x Compliant
• Forwarding Rate: Full Wire-Speed Forwarding Rate
LED Indicators:
• Power: Supported
• Speed: For Twisted-Pair Port
• Full Duplex / Collision: For Twisted-Pair and Fiber Ports
• LINK / ACT: For Twisted-Pair and Fiber Ports
• Fail: For Twisted-Pair and Fiber Ports
Power Specifications:
• AC Input: 7.5V / 1.5A External Power Adapter
• Maximum Power Consumption: 7.2W
Physical Specifications:
• Dimensions: 120 × 88 × 25mm
• Weight: 305g
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -25°C to 70°C
• Operating Humidity: 10% to 90% Non-Condensing
Fiber Specifications:
• Fiber Wavelength: 1550nm
• Fiber Mode: Single-Mode
• Fiber Distance: Up to 80km
Certifications:
• EMI: FCC Class A, CE Class A, VCCI Class A
Applications:
• Long-distance Ethernet to fiber conversion
• Single-mode fiber network extension up to 80km
• Building-to-building fiber links
• Telecom and ISP fiber networks
• CCTV and data fiber backbone
• Smart chassis-based media converter systems
• Industrial and enterprise network links
• Switch-to-switch long-distance fiber connection
• Remote site network extension
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DMC-1580SC for projects that require long-distance Fast Ethernet to single-mode fiber conversion up to 80km.
• It is suitable for professional fiber links where smart functions such as LLCF, LLR, Link Pass Through, and chassis management are required.
• The SC single-mode fiber interface, 1550nm wavelength, hot-swappable chassis support, and Intelligent Chassis System management make it practical for advanced network infrastructure projects.
• For proper installation, Connect Gates recommends checking the fiber distance, fiber type, SC connector compatibility, chassis requirement, LLCF/LLR settings, and power location before deployment.
