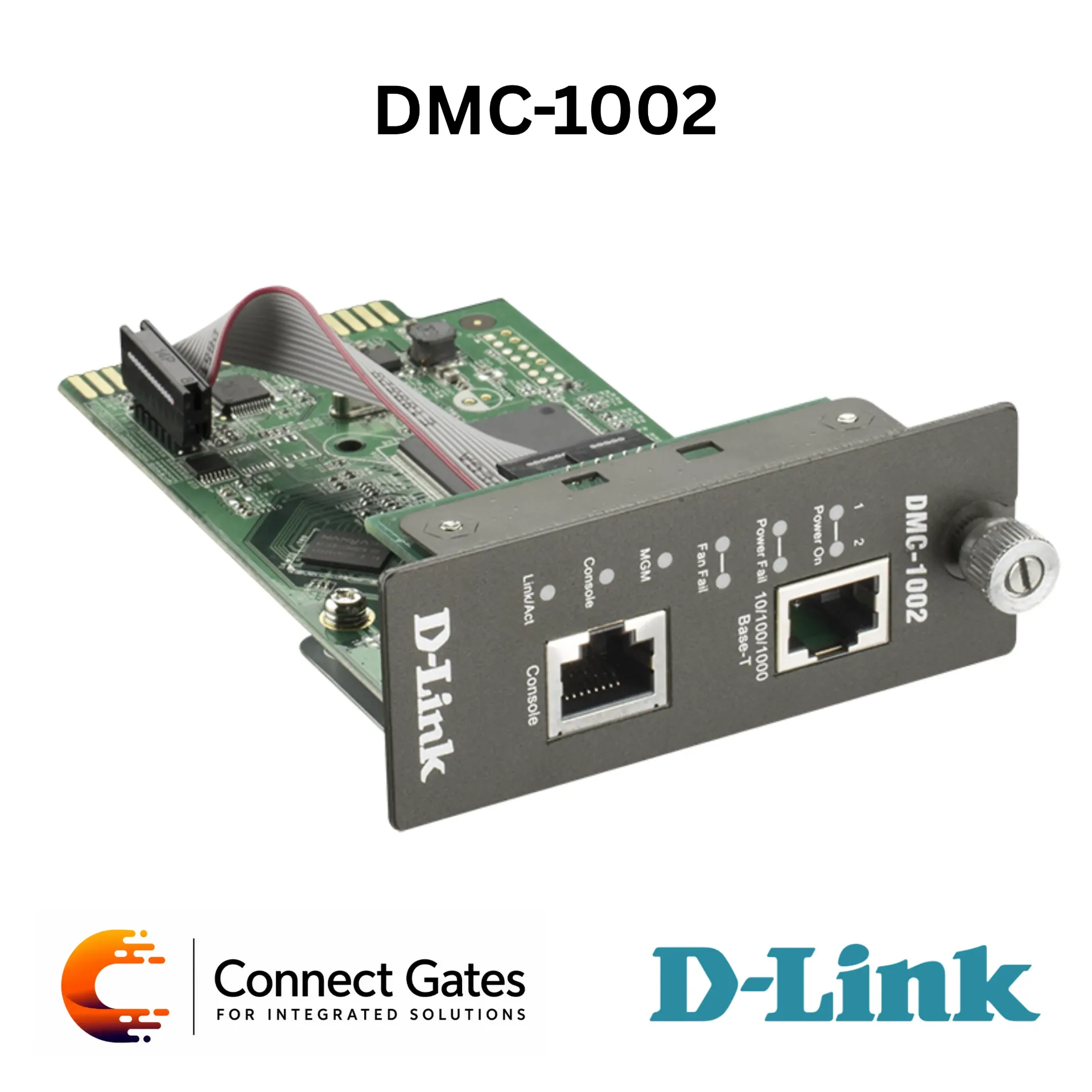

D-Link DMC-1002 – Management Module for DMC-1000 Media Converter Chassis with SNMP, Web Management, Console Port & Real-Time Monitoring

• The D-Link DMC-1002 is an optional management module designed for the D-Link DMC-1000 Media Converter Chassis.

• It provides SNMP-based and web-based management for all media converter and power supply modules installed inside the chassis.

• The module includes a 10/100Mbps Fast Ethernet management port for network access and an RS-232 console port for local configuration.

• It supports real-time monitoring of link status, speed, duplex status, power supply status, fan status, and media converter module status.

• The DMC-1002 also supports alarms and traps for events such as power failure, fan failure, module insertion, module removal, port link down, and port link up, helping administrators monitor chassis health efficiently.

• Management module for DMC-1000 chassis

• SNMP-based management

• Web-based management

• 10/100Mbps Fast Ethernet management port

• RS-232 console port

• Real-time monitoring of media converters

• Real-time monitoring of chassis power supplies

• Real-time link, speed, and duplex status display

• Built-in SNMP v1 agent

• MIB-II and enterprise MIB support

• Console, Telnet, TFTP, and HTTP support

• Supports firmware upgrade through TFTP and web

• Supports configuration upload and download

• Supports factory reset and remote reboot

• Password protection against unauthorized access

• Supports LLCF, LLR, port enable, and auto-negotiation settings for Smart Media Converter modules

• Brand: D-Link

• Model: DMC-1002

• Product Type: Management Module

• Compatible Chassis: DMC-1000 Media Converter Chassis

• Management Type: SNMP-Based and Web-Based Management

• Processor: 32-Bit High-Performance RISC Microprocessor

• Operating System: Real-Time Operating System

• Application: Management of Media Converter Modules and Power Supply Modules Installed in DMC-1000 Chassis

• Ethernet Management Port: 1 × 10/100Mbps Fast Ethernet Port

• Console Port: RS-232 Console Port

• Web Management: Supported

• SNMP Management: Supported

• Telnet Management: Supported

• TFTP: Supported

• Real-Time Monitoring: Link, Speed, and Duplex Status of Media Converters

• Power Monitoring: Power Supply Status

• Fan Monitoring: Fan Failure Status

• Module Monitoring: Media Converter Module Status and Slot Occupancy

• Remote Reboot: Supported

• Factory Reset: Supported

• Configuration Upload / Download: Supported via TFTP and Web

• Firmware Upgrade: Supported via TFTP and Web

• Security: Password Protection

• Chassis Information: Part Number, Revision, Description, Chassis Reset, Power Status

• Media Converter Modules: Link Status, Converter Type, Slot Occupied, Part Number, Revision

• Active Control: Link Loss Carry Forward, Link Loss Return, Module Name, IP Address, Reset Module, Redundant Backup, Download Software via TFTP / HTTP, Subnet Mask, Default Gateway, Telnet to Console Commands

• Cold Start: Supported

• Warm Start: Supported

• Authentication Failure: Supported

• Power Fail: Supported

• Fan Fail: Supported

• Module Insertion: Supported

• Module Pullout / Removal: Supported

• Module Unknown: Supported

• Module Failure: Supported

• Port Link Down: Supported

• Port Link Up: Supported

• Power Supply On / Off: Supported

• Power Supply Inserted / Removed: Supported

• IP: Supported

• UDP: Supported

• SNMP: Supported

• TCP: Supported

• TFTP: Supported

• ARP: Supported

• ICMP: Supported

• HTTP: Supported

• Power 1: Supported

• Power 2: Supported

• Power Fail 1: Supported

• Power Fail 2: Supported

• Fan Fail 1: Supported

• Fan Fail 2: Supported

• MGM: Supported

• Console: Supported

• Link / Activity: Supported

• Dimensions: 120 × 88 × 25mm

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -25°C to 70°C

• Operating Humidity: 10% to 90%

• Storage Humidity: 5% to 90%

• EMI: FCC Class B, CE Mark Class B, VCCI Class B

• Centralized management of DMC-1000 chassis

• Monitoring media converter modules

• Monitoring power supply and fan status

• Chassis-based media converter systems

• Enterprise network racks

• Telecom and network cabinet installations

• Managed fiber conversion infrastructure

• Remote monitoring through SNMP or web browser

• Maintenance and fault alerting for media converter chassis

• Connect Gates recommends the D-Link DMC-1002 for projects using the DMC-1000 Media Converter Chassis where centralized monitoring and management are required.

• It is especially useful for professional network racks that include multiple media converters and require real-time monitoring of link status, power, fan, and module health.

• The support for SNMP, web management, RS-232 console, Telnet, TFTP, and alarm traps makes it suitable for managed network environments.

• For proper installation, Connect Gates recommends checking DMC-1000 chassis compatibility, management network access, IP configuration, SNMP monitoring requirements, and whether Smart Media Converter module control is needed.
