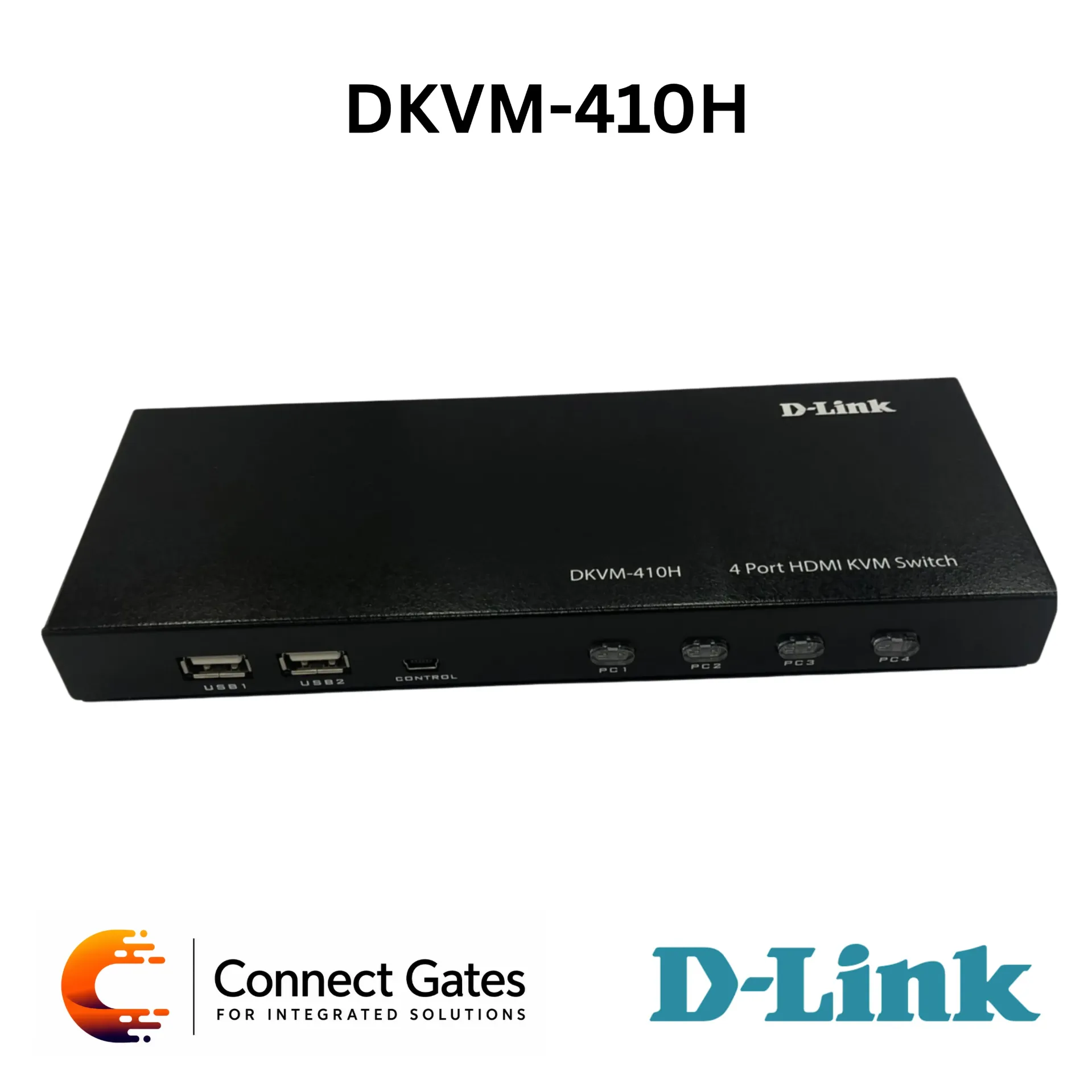

D-Link DKVM-410H – 4-Port KVM Switch with HDMI 2.0, USB Ports, 4K Resolution, Hotkeys, Front Panel Switching, Desktop Controller & Autoscan Mode
Overview:
• The D-Link DKVM-410H is a 4-Port KVM Switch designed to manage up to four computers using one monitor, one keyboard, and one mouse.
• It supports HDMI and USB connectivity, making it suitable for centralized control of multiple PCs from a single workstation.
• Switching between computers can be done quickly using the front panel buttons, keyboard hotkeys, or desktop controller.
• The device supports hot-plugging, so users do not need to turn off computers before installing the switch.
• The DKVM-410H requires no driver installation and can operate without an external power adapter by taking power from the USB port of the connected PC.
• Autoscan mode allows automatic switching to the next PC after the scan interval expires.
Key Features:
• 4-Port KVM Control: Manage up to four computers using one monitor, keyboard, and mouse.
• HDMI & USB Connectivity: Supports HDMI display and USB keyboard/mouse connections.
• Multiple Switching Methods: Switch between PCs using front panel buttons, keyboard hotkeys, or desktop controller.
• Hot-Plugging Support: Computers do not need to be powered off before installation.
• Autoscan Mode: Automatically switches between connected PCs after the scan interval.
• No Driver Required: Simple installation without driver setup.
• USB Powered: Can operate using power from the USB port of the connected PC.
• External Device Support: Includes two USB Type-A ports for connecting external USB devices.
• Metal Enclosure: Durable metal housing suitable for professional workstation use.
• 4K Resolution Support: Supports up to 4096×2160 / 3840×2160 at 60Hz.
Technical Specifications:
• Product Type: 4-Port KVM Switch
• Model: DKVM-410H
• Connected PCs: Up to 4
• Ports for KVM Cables: 4 × HDMI Ports, 4 × USB Type-B Ports
• Management Console Ports: HDMI Monitor Local, USB Type-A Keyboard Local, USB Type-A Mouse Local
• PC Cable Connectors: HDMI Connector, USB Type-A Connector
• External Device Ports: 2 × USB Type-A Ports
• Desktop Controller Port: Mini-USB Type-B Port
• LED Indicators: 4 Port LEDs for Connected PCs
• Buttons: 4 Port Switching Buttons
• Enclosure: Metal
• Autoscan Mode: Supported
• Switching Methods: Front Panel Switching Buttons, Hotkeys, Desktop Controller
• Sound Notification of Switching: Supported
• HDMI Version: HDMI 2.0, HDCP 2.2
• Resolution: Up to 4096×2160 / 3840×2160 @ 60Hz 4:2:0
• Power Supply: From USB Port on PC
• External Power Adapter: Supported when using external devices, not included in package contents
• Dimensions: 210 × 80 × 22 mm
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 0% to 80% non-condensing
• Order Information: DKVM-410H – 4-Port KVM Switch with HDMI and USB Ports
Applications:
• Managing up to four desktop PCs from one monitor, keyboard, and mouse.
• IT support desks and maintenance benches.
• Control rooms and monitoring stations.
• Office workstations that require switching between multiple PCs.
• Technical departments, service centers, and system administrators.
• Users who need a clean workspace without multiple monitors, keyboards, and mice.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DKVM-410H for users who need to manage up to four computers from a single workstation.
• It is a practical choice for IT teams, control rooms, service desks, and offices where fast switching between several PCs is required.
• HDMI 2.0 and 4K resolution support make it suitable for modern displays and high-resolution work environments.
• Front panel buttons, keyboard hotkeys, and desktop controller support give users flexible switching options depending on the installation setup.
• This KVM switch is recommended when the customer needs a clean, reliable, and space-saving solution for controlling multiple HDMI computers with shared USB peripherals.
