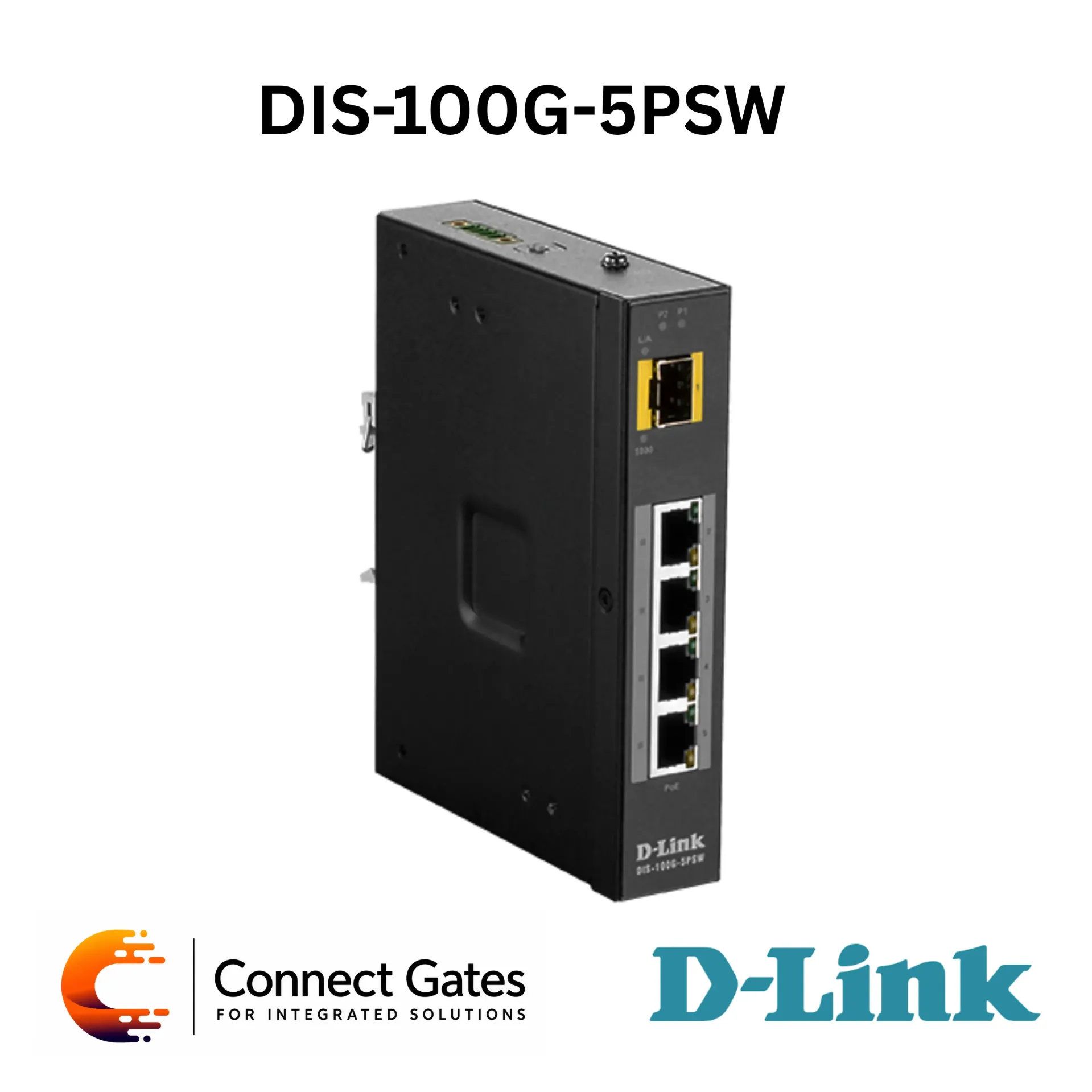

D-Link DIS-100G-5PSW – 5-Port Gigabit Industrial Unmanaged PoE+ Switch with 4 PoE Ports, 1 SFP Port, 120W PoE Budget & Wide Temperature Operation

• The D-Link DIS-100G-5PSW is a Gigabit Industrial Unmanaged PoE+ Switch designed for industrial networks, outdoor surveillance cabinets, transportation systems, and harsh environment installations.

• It comes with 4 × 10/100/1000BASE-T PoE ports and 1 × SFP port for fiber uplink connectivity.

• The switch supports PoE+ power delivery with a total PoE budget up to 120W, capable of supplying up to 30W per port for PoE-enabled devices.

• It provides Plug-and-Play installation, allowing quick deployment without configuration.

• The DIS-100G-5PSW features an IP30-rated metal casing, fanless passive cooling, high EMC endurance, and wide operating temperature from -40°C to +75°C.

• It supports dual power input for redundant power supply and is suitable for mission-critical industrial and surveillance applications.

• Gigabit Industrial Unmanaged PoE+ Switch.

• 4 × 10/100/1000BASE-T PoE ports.

• 1 × SFP fiber uplink port.

• Total PoE budget up to 120W.

• Supports up to 30W per PoE port.

• Plug-and-Play installation.

• IP30-rated metal casing.

• Fanless passive cooling design.

• Wide operating temperature from -40°C to +75°C.

• Dual DC power input for redundancy.

• IEEE 802.3af/at PoE support.

• IEEE 802.3x Flow Control.

• IEEE 802.3az Energy Efficient Ethernet.

• Broadcast, Multicast, and Unicast Storm Control.

• IEEE 802.1p QoS with 4 hardware queues per port.

• 9KB Jumbo Frame support.

• DIN rail and wall mountable design.

• UL C1D2 compliant for industrial deployment.

• Product Type: Gigabit Industrial Unmanaged PoE+ Switch

• Brand: D-Link

• Model: DIS-100G-5PSW

• Series: DIS-100G Series

• Hardware Version: A1

• RJ45 Ports: 4 × 10/100/1000BASE-T PoE ports

• SFP Ports: 1 × SFP port

• PoE Standards: IEEE 802.3af/at

• PoE Capable Ports: Ports 1 to 4

• PoE Power Budget: Maximum 120W

• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Flow Control, IEEE 802.3az EEE

• Media Interface Exchange: Auto-MDI/MDIX for all twisted-pair ports

• Switching Capacity: 10Gbps

• Maximum Forwarding Rate: 7.44Mpps

• MAC Address Table: Up to 2K entries

• Transmission Method: Store-and-forward

• Jumbo Frame: 9KB

• Advanced Features: Broadcast / Multicast / Unicast Storm Control, IEEE 802.1p QoS with 4 hardware queues per port

• Diagnostic LEDs: ALM, P1/P2, Link/Activity/Speed, PoE Status

• Power Input: 48 to 58V DC terminal block dual input

• Power Consumption: Maximum 120.2W with PoE on

• Alarm Relay: 1A at 24V

• Heat Dissipation: 410.12 BTU/hr with PoE on

• Dimensions: 139 × 29 × 107 mm

• Weight: 0.38 kg

• Ventilation: Fanless passive cooling

• Operating Temperature: -40°C to +75°C

• Storage Temperature: -40°C to +85°C

• Operating Humidity: 5% to 95% RH, non-condensing

• Storage Humidity: 5% to 95% RH, non-condensing

• Housing: IP30-rated metal casing

• Installation: DIN rail / wall mountable

• MTBF: More than 25 years

• Certifications: UL, CE, FCC, NEMA-TS2, EN50121-4 compliant, UL C1D2 compliant

• Safety: UL61010-1, UL61010-2-201, UL C1D2

• EMI: FCC Part 15 Subpart B Class A, ICES-003 Issue 6 Class A

• EMC: EN61000-6-2, EN61000-6-4

• Environmental Tests: IEC 60068-2-27 Shock, IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration

• Industrial PoE network deployments.

• Outdoor CCTV and surveillance cabinets.

• IP camera and wireless access point connections.

• Transportation and railway network applications.

• Factory automation and industrial control systems.

• Fiber uplink connections for remote network points.

• Harsh environment network installations.

• DIN rail or wall-mounted industrial cabinet projects.

• Recommended for industrial and outdoor CCTV projects that need a compact unmanaged PoE+ switch with fiber uplink support.

• Suitable for powering IP cameras, access points, and PoE devices in remote or harsh environments.

• Best used when the project requires Plug-and-Play operation, 120W PoE budget, 1 SFP uplink, and industrial-grade durability.
