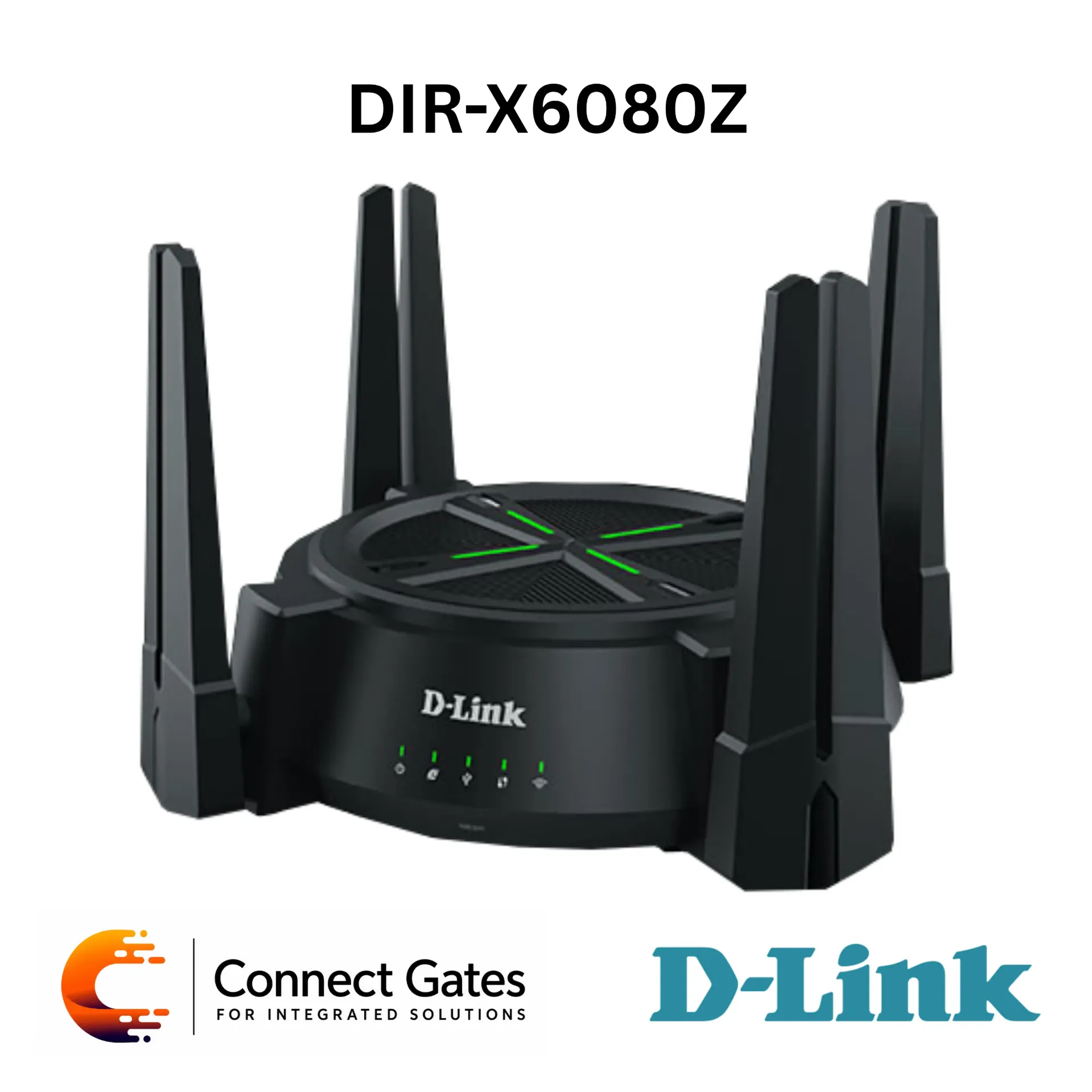

D-Link DIR-X6080Z – AX6000 Multi-Gigabit Wi-Fi 6 Router with 2.5G WAN, 2.5G LAN, 3 Gigabit LAN Ports, USB 3.0, EasyMesh, MU-MIMO, OFDMA & Quad-Core CPU
Overview:
• The D-Link DIR-X6080Z is an AX6000 Multi-Gigabit Wi-Fi 6 Router designed for high-performance home, smart home, gaming, streaming, IPTV, and multi-device networking environments.
• It uses Wi-Fi 6 technology to deliver faster speeds, greater capacity, lower latency, and reduced wireless congestion compared to previous Wi-Fi generations.
• The router provides combined wireless speeds up to 6.0Gbps, with up to 1148Mbps on the 2.4GHz band and up to 4804Mbps on the 5GHz band.
• OFDMA and MU-MIMO technologies allow the router to communicate with multiple devices simultaneously, improving network efficiency and reducing lag.
• Multi-Gigabit connectivity includes one 2.5Gbps WAN port, one 2.5Gbps LAN port, and three Gigabit LAN ports for high-speed wired devices.
• The USB 3.0 port enables easy file sharing across the network or building private cloud storage.
• Eight antennas with Beamforming help deliver wider coverage and focused signal reception for devices located farther away.
• EasyMesh support allows creating a wider mesh network, with support for 1 main unit plus 3 satellite units.
• The router supports D-Link Wi-Fi Connect App for Android and iOS, built-in Ookla Speedtest, TR-069 remote management, IPv6, QoS by device, guest networks, and IPTV / OTT services in 4K, HD, and SD.
Key Features:
• AX6000 Multi-Gigabit Wi-Fi 6 Router
• Dual-Band Wi-Fi 6 Technology
• Wireless Speed up to 6.0Gbps
• 2.4GHz Speed up to 1148Mbps
• 5GHz Speed up to 4804Mbps
• OFDMA Technology
• MU-MIMO Technology
• 1 × 2.5Gbps WAN Port
• 1 × 2.5Gbps LAN Port
• 3 × Gigabit LAN Ports
• 1 × USB 3.0 Port
• Eight Antennas for Extended Coverage
• Beamforming Support
• EasyMesh R2 Support
• Mesh Support: 1 Main + 3 Satellite
• Quad-Core CPU at 2.0GHz
• ARM Filogic 830 Platform
• D-Link Wi-Fi Connect App Support
• Built-in Ookla Speedtest
• QoS by Device
• Guest Network Support
• IPv4 / IPv6 Dual Stack
• IPv6 DS-Lite Tunnel Support
• PPPoEv6 / DHCPv6 / Static IPv6 Support
• Virtual Servers, DMZ and UPnP
• TR-069 / TR-181 / TR-143 Compliance
• TR-069 Remote Access
• USB 3.0 File Sharing
• IPTV and OTT Service Support
• Quick Installation Wizard
• Web GUI Firmware Upgrade
• Syslog Monitoring
• Controller + Mesh Wireless Gateway Operation Mode
Technical Specifications:
• Product Type: AX6000 Multi-Gigabit Wi-Fi 6 Router
• Brand: D-Link
• Model: DIR-X6080Z
• Wireless Standard 5GHz: IEEE 802.11ax/ac/n/a
• Wireless Standard 2.4GHz: IEEE 802.11ax/n/b/g
• Wireless Class: AX6000
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• 2.4GHz Wireless Speed: Up to 1148Mbps, 802.11ax 40MHz 4×4
• 5GHz Wireless Speed: Up to 4804Mbps, 802.11ax 160MHz 4×4
• Antenna Type: 8 Antennas
• WAN Port: 1 × 10/100/1000/2500 Gigabit WAN Port
• LAN Port 2.5G: 1 × 10/100/1000/2500 Gigabit LAN Port
• LAN Ports: 3 × 10/100/1000 Gigabit LAN Ports
• USB Port: 1 × USB 3.0
• Processor: Quad-Core CPU at 2.0GHz ARM Filogic 830
• DDR / Flash: 1G / 128MB Single Flash Dual Image
• LED Indicators: Power, Internet, 4 LAN LEDs, USB, Wi-Fi, Mesh / WPS
• Buttons: Power ON / OFF Switch, Reset, WPS / Mesh
• Wi-Fi Encryption: WEP, WPA-PSK, WPA2-PSK, WPA / WPA2-PSK
• Network Security: Access Control, IP & MAC Binding
• Guest Network: 4 × 5GHz Guest Networks, 4 × 2.4GHz Guest Networks
• WAN Types: DHCP, Static IP, PPPoE
• Quality of Service: QoS by Device
• Forwarding: Virtual Servers, DMZ, UPnP
• IPv6: IPv6 and IPv4 Dual Stack
• IPv6 Tunnel: DS-Lite
• IPv6 Connection Types: PPPoEv6, DHCPv6, Static IPv6
• Mesh: Supports 1 Main + 3 Satellite
• Mobile App: D-Link Wi-Fi Connect for Android and iOS
• Mobile App Environment: LAN and WAN Environment Support
• Operating System Support: PC: Microsoft, MacOS / Mobile: Android, Apple iOS, Huawei HarmonyOS
• Management: Quick Installation Wizard, Configuration Save / Restore, Web GUI Firmware Upgrade, Syslog Monitoring, TR-069 / TR-181 / TR-143 Compliance
• Compliance: CE, FCC, MCMC MTSFB TC T007:2020 Short Range Devices
• Power Supply: 12V / 3A
• Device Dimensions: 267 × 267 × 167 mm
• Box Dimensions: 405 × 340 × 186 mm
• Device Weight: 680g
• Box Weight: 1260g with Device
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 80°C
• Operating Humidity: 10% to 85% Non-Condensed
• Storage Humidity: 5% to 95% Non-Condensed
• Package Contents: Dual Band AX6000 Wi-Fi 6 Router, UK Pin Power Adapter, 1.5m CAT6 RJ45 Cable, Quick Setup Guide
Applications:
• High-performance home Wi-Fi 6 network
• Smart home and multi-device environments
• 4K / HD / SD IPTV and OTT services
• Online gaming and low-latency applications
• Smooth streaming and downloading
• Multi-Gigabit internet connection
• Wired connectivity for smart TVs and game consoles
• USB 3.0 file sharing and private cloud storage
• Whole-home mesh expansion using EasyMesh
• Large homes and wider wireless coverage
• Remote router management through TR-069
• Network performance testing using Ookla Speedtest
• Advanced home and SOHO wireless gateway deployments
Connect Gates Recommendation:
• Recommended for customers who need a premium AX6000 Wi-Fi 6 router with Multi-Gigabit WAN/LAN, high wireless capacity, USB sharing, EasyMesh expansion, and strong processing power.
• Suitable for villas, large homes, smart homes, gaming setups, heavy streaming users, IPTV projects, and customers with high-speed internet plans that need performance beyond standard Gigabit routers.
