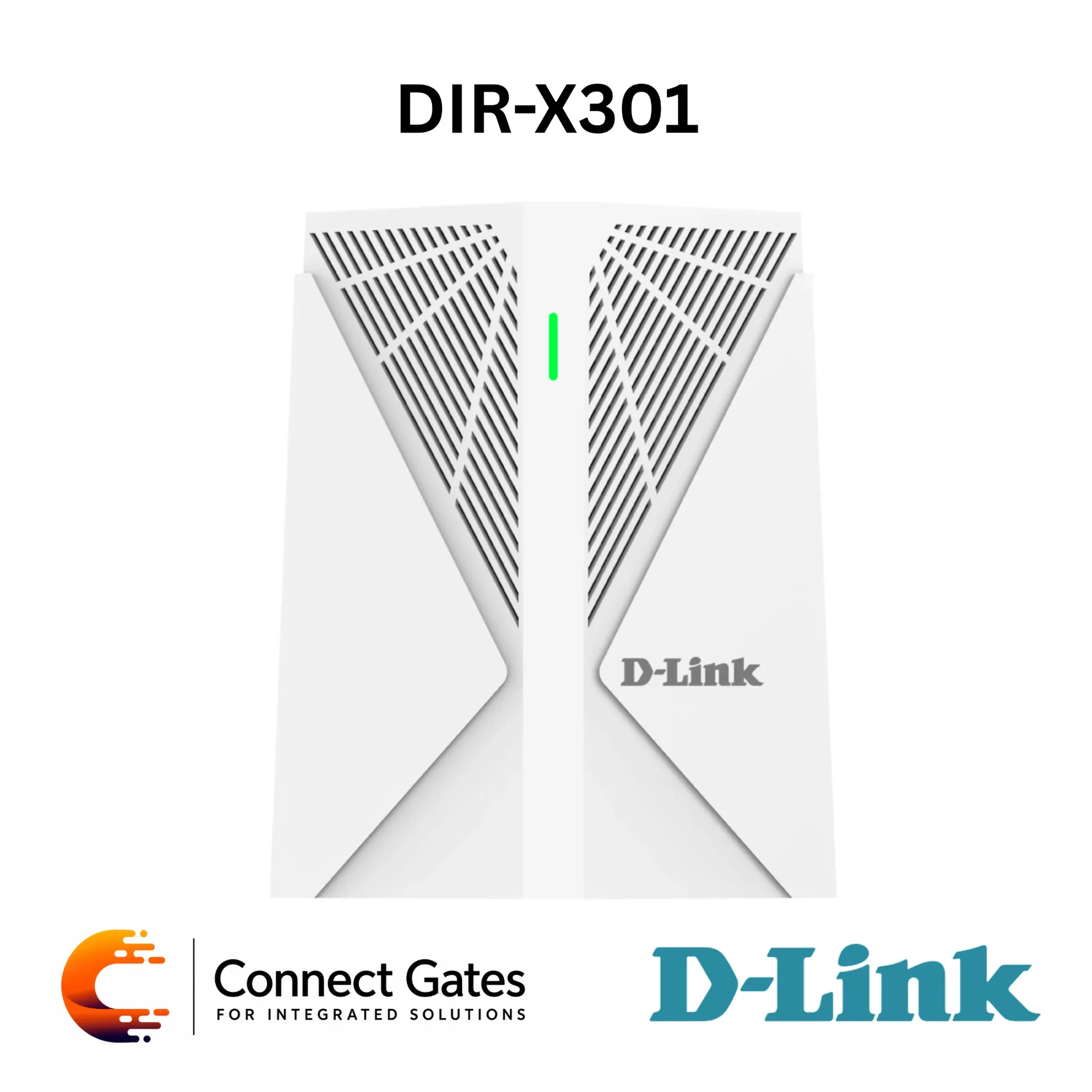

D-Link DIR-X301 – AX3000 Wi-Fi 6 Dual-Band Mesh System with Gigabit WAN, Gigabit LAN, WPA3, OFDMA, Smart Roaming, Smart Steering & EasyMesh
Overview:
• The D-Link DIR-X301 is an AX3000 Wi-Fi 6 Dual-Band Mesh System designed for modern device-dense homes, smart homes, 4K streaming, VR gaming, video calling, and multiple connected devices.
• It uses Wi-Fi 6 technology to deliver faster speeds, greater capacity, reduced network congestion, and improved wireless performance.
• The system supports dual-band wireless connectivity across 2.4GHz and 5GHz bands, delivering total wireless speeds up to 3Gbps.
• The 5GHz band supports speeds up to 2402Mbps, while the 2.4GHz band supports speeds up to 574Mbps.
• 1024-QAM and 160MHz channel width help provide faster wireless performance over larger areas.
• OFDMA allows small data packets for multiple devices to be transmitted efficiently, making it suitable for smart homes with many IoT devices.
• Smart Roaming automatically connects devices to the strongest signal as users move from room to room.
• Smart Steering automatically directs devices to the optimal wireless band for fast and reliable Wi-Fi performance.
• EasyMesh and D-Link Wi-Fi Mesh allow the system to be expanded by adding supported DIR-X301 units for wider whole-home coverage.
• WPA3 / SAE security, SPI firewall, DoS protection, filtering features, parental controls, VPN support, and remote management provide secure and flexible network operation.
Key Features:
• AX3000 Wi-Fi 6 Dual-Band Mesh System
• Wi-Fi 6 802.11ax Technology
• Total Wireless Speed up to 3Gbps
• Dual-Band Wi-Fi: 2.4GHz and 5GHz
• 2.4GHz Speed up to 574Mbps
• 5GHz Speed up to 2402Mbps
• 1 × Gigabit Ethernet WAN Port
• 1 × Gigabit Ethernet LAN Port
• 1024-QAM Support
• 160MHz Channel Width Support
• OFDMA Technology
• BSS Coloring for Better Wi-Fi Efficiency
• Smart Roaming
• Smart Steering
• EasyMesh Support
• D-Link Wi-Fi Mesh Expandability
• WPA3 / SAE Security
• Parental Controls
• Works with Existing Router or Gateway
• IPv4 / IPv6 Dual Stack
• QoS Flow Control
• SPI Firewall and DoS Protection
• NAT, NAPT and ALG Support
• DMZ and Port Forwarding
• Port Filtering, IP Filtering and MAC Filtering
• URL Filtering
• DDNS Support
• Static Route Support
• VPN Support: PPTP, L2TP, GRE, IPSEC and OpenVPN
• IGMP Proxy and MLD for IPTV
• TR-069 Remote Management
• Web GUI Management
• Telnet / SSH Command Line Tools
• Auto Firmware Update
• Available as 3-Pack and 4-Pack Mesh System
Technical Specifications:
• Product Type: AX3000 Wi-Fi 6 Dual-Band Mesh System
• Brand: D-Link
• Model: DIR-X301
• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
• Wireless Class: AX3000
• Wireless Bands: Dual Band 2.4GHz / 5GHz
• 2.4GHz Wi-Fi: 802.11b/g/n/ac/ax, up to 574Mbps
• 5GHz Wi-Fi: 802.11a/n/ac/ax, up to 2402Mbps
• Total Wireless Speed: Up to 3Gbps
• WAN Port: 1 × RJ45 10/100/1000M WAN Port
• LAN Port: 1 × RJ45 10/100/1000M LAN Port
• Buttons: Reset Button, WPS Button
• Power Interface: Power Jack
• CPU: Quad-Core 1.7GHz
• Memory: 256MB 16-bit DDR3L
• Flash: 128MB NAND
• Antenna Type: Internal Antennas
• 2.4GHz Antennas: 2 × 3dBi Internal Antennas
• 5GHz Antennas: 2 × 5dBi Internal Antennas
• Frequency Range 2.4GHz: 2.4GHz – 2.4835GHz
• Frequency Range 5GHz: 5.150GHz – 5.825GHz
• Regulatory Frequency Compliance: ETSI and FCC Compliant
• Modulation Schemes: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, DBPSK, DQPSK, CCK
• Transfer Rate HE20: Up to 574Mbps 2.4GHz + 5GHz
• Transfer Rate HE40: Up to 1147Mbps 2.4GHz + 5GHz
• Transfer Rate HE80: Up to 1201Mbps 5GHz
• Transfer Rate HE160: Up to 2402Mbps 5GHz
• Wireless Protocols: IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11h DFS, 802.11e WMM, 802.11k/v/r
• Wireless Features: Embedded AP with 2 SSIDs on Each Radio, Separate Authentication for Each SSID, WMF, AutoChannel, BSD, EasyMesh, WPA3/SAE Security
• Management Features: Web GUI, Telnet / SSH Command Line Tools, TR-069 Remote Management, TR181 / TR104 / TR140 / TR143 / TR157, UPnP
• Network Features: IPv4 / IPv6 Dual Stack, 6RD, IPoE Bridge Mode, IPoE DHCP / Static, PPPoE Dynamic / Static, IPv6 Stateless / Stateful
• VPN Support: PPTP, L2TP, GRE, IPSEC, OpenVPN
• IPTV Support: IGMP Proxy and MLD
• Network Services: DNS Proxy, DHCP Server, NAT, NAPT, ALG
• Security Features: SPI Firewall, DoS Protection, Port Filtering, IP Filtering, MAC Filtering, URL Filter
• Other Features: QoS Flow Control, DMZ, Port Forwarding, DDNS, Static Route, SNTP, Diagnostics Ping / TraceRoute, Logs and Statistics, Automatic Timing Restart, Auto Firmware Update
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 5% to 95% Typical
• Power Supply: 12V / 1A
• Regulation Compliance: CE
• Safety Regulations: UL
• Green Standard: RoHS
• Ordering Option 1: DIR-X301/MNA3 – AX3000 Dual-Band Wi-Fi 6 Mesh System 3-Pack
• Ordering Option 2: DIR-X301/MNA4 – AX3000 Dual-Band Wi-Fi 6 Mesh System 4-Pack
Applications:
• Whole-home Wi-Fi 6 mesh coverage
• Smart home and device-dense environments
• 4K and 8K UHD streaming
• VR gaming and online gaming
• Video calls and remote work
• Multi-floor home wireless coverage
• Mesh Wi-Fi expansion
• Homes with many IoT devices
• High-speed wired connection through Gigabit WAN/LAN
• Secure home networking with WPA3
• IPTV and advanced router deployments
• Using with existing ISP router or gateway
Connect Gates Recommendation:
• Recommended for customers who need a future-ready Wi-Fi 6 mesh system with AX3000 performance, Gigabit connectivity, WPA3 security, smart roaming, and expandable coverage.
• Suitable for villas, large apartments, duplexes, smart homes, gamers, streaming users, and customers who need stronger whole-home Wi-Fi coverage than a single router.
