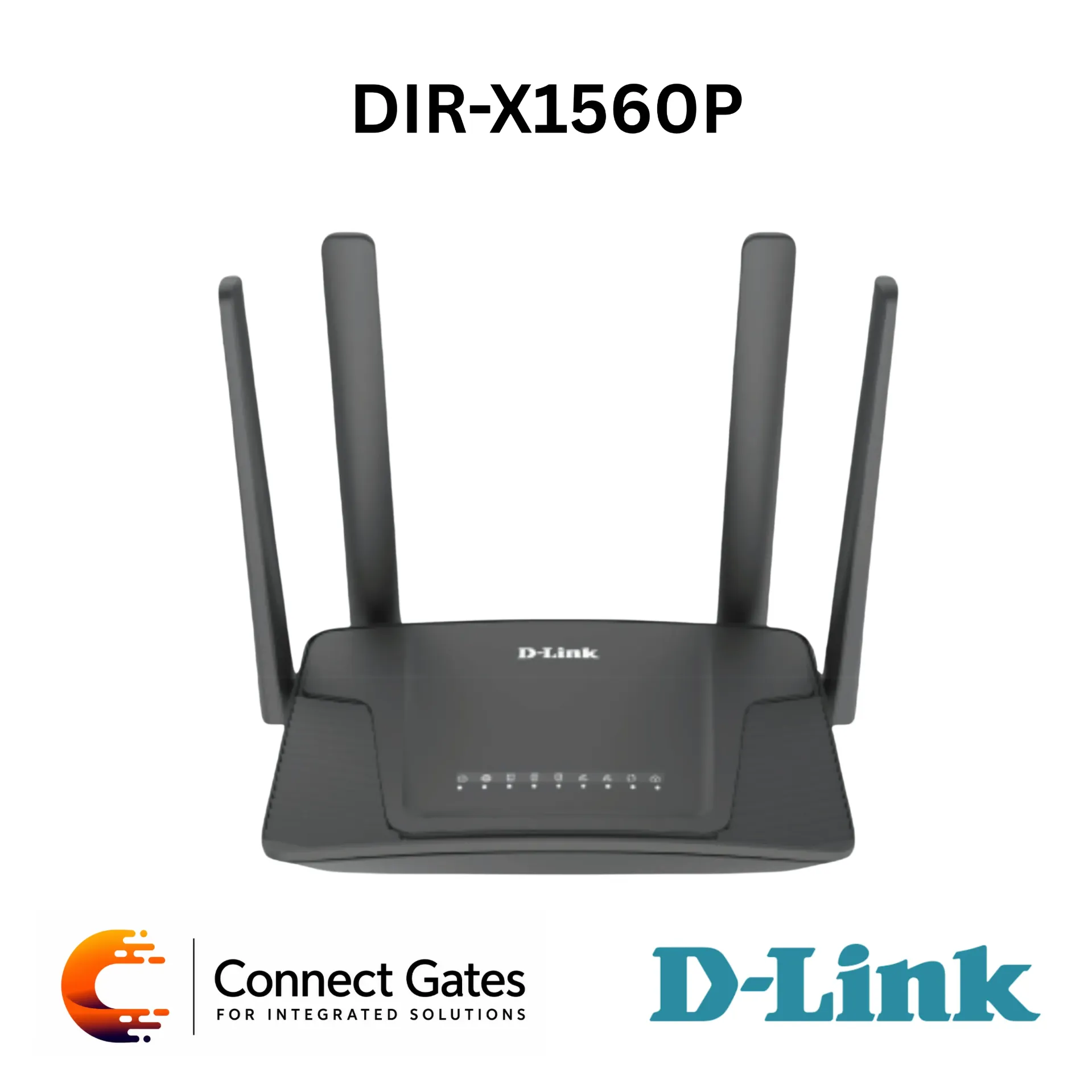

D-Link DIR-X1560P – Wi-Fi 6 Gigabit Router with Gigabit WAN, 3 Gigabit LAN Ports, 5 External Antennas, MU-MIMO, Easy Mesh, Repeater Mode, WPA3 & Guest Wi-Fi
Overview:
• The D-Link DIR-X1560P is a Wi-Fi 6 Gigabit Router designed for home and small office networks that need faster wireless performance, better capacity, and improved device handling.
• It uses Wi-Fi 6 802.11ax technology to provide faster speeds, greater capacity, and less network congestion compared to older wireless standards.
• The router supports simultaneous dual-band Wi-Fi on 2.4GHz and 5GHz, with wireless connection rates up to 1.1Gbps.
• The 2.4GHz band supports up to 300Mbps, while the 5GHz band supports up to 800Mbps, making it suitable for 4K streaming, gaming, video chatting, smart home devices, and daily internet usage.
• One Gigabit WAN port and three Gigabit LAN ports provide high-speed wired connectivity for PCs, smart TVs, NVR/DVR devices, switches, gaming consoles, and other network equipment.
• Five external high-gain antennas help provide wider wireless coverage and better signal performance across the home or small office.
• MU-MIMO helps improve wireless efficiency by allowing the router to communicate with multiple wireless clients more effectively.
• BSS Coloring helps organize wireless data packets and improves Wi-Fi performance in crowded network environments.
• Target Wake Time TWT helps optimize power usage for connected devices.
• Easy Mesh support allows mesh expansion with compatible devices, while Repeater Mode allows extending an existing wireless network.
• Security features include WEP, WPA/WPA2/WPA3 mixed mode, MAC address filtering, IP address filtering, URL filtering, WPS, guest SSID, firewall, parental control, and multiple VPN / NAT / management features.
Key Features:
• Wi-Fi 6 Gigabit Router
• IEEE 802.11ax Wireless Technology
• Dual-Band 2.4GHz and 5GHz Wi-Fi
• Total Wireless Speed up to 1.1Gbps
• 2.4GHz Speed up to 300Mbps
• 5GHz Speed up to 800Mbps
• 1 × Gigabit WAN Port
• 3 × Gigabit LAN Ports
• 5 × External High-Gain Antennas
• MU-MIMO Support
• BSS Coloring Support
• Target Wake Time TWT Support
• Easy Mesh Support
• Wireless Repeater Support
• Guest Wi-Fi Network Support
• WPA / WPA2 / WPA3 Mixed Mode
• WEP Encryption Support
• WPS Wi-Fi Protected Setup
• MAC Address Filtering
• IP Address Filtering
• URL Filtering
• Parental Control
• Firewall Features
• VPN Support: PPTP / L2TP / GRE / OpenVPN
• NAT Features: DMZ / Port Forwarding / UPnP
• TR-069 Management Support
• SNMP Support
• QoS Bandwidth Control
• Auto Reboot Support
• Easy Configuration Interface
Technical Specifications:
• Product Type: Wi-Fi 6 Gigabit Router
• Brand: D-Link
• Model: DIR-X1560P
• Wireless Standard: IEEE 802.11ax/ac/n/g/b
• Wireless Class: AX1100
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• 2.4GHz Speed: Up to 300Mbps
• 5GHz Speed: Up to 800Mbps
• Frequency Band: Simultaneous 2.4GHz and 5GHz
• WAN Port: 1 × 10/100/1000Mbps Auto MDI/MDI-X RJ45 Port
• LAN Ports: 3 × 10/100/1000Mbps Auto MDI/MDI-X RJ45 Ports
• Antenna Configuration: 2 × 5dBi 2.4GHz External Antennas, 2 × 5dBi 5GHz External Antennas, 1 × 2.4GHz / 5GHz External Antenna
• Buttons: Wi-Fi / WPS / Reset / Power ON/OFF
• LED Indicators: Power, WAN, LAN1, LAN2, LAN3, 2.4G WLAN, 5G WLAN, WPS / Upgrade
• Chipset Solution: RTL8197H + RTL8832 + RTL8367R
• Material: Plastic
• Dimensions with Antennas: 221.5 × 147.1 × 188.7 mm
• Dimensions without Antennas: 190 × 123 × 41.9 mm
• Power Requirement: 12V DC / 1A
• Power Consumption: 9W
• 2.4GHz Channel: FCC 2.412–2.462GHz 11 Channels / ETSI 2.412–2.472GHz 13 Channels
• 5GHz Channel: 5150–5250MHz, 5250–5350MHz, 5470–5725MHz, 5725–5825MHz
• Channel Width 802.11ax: 20 / 40 / 80MHz
• Channel Width 802.11n: 20 / 40MHz
• Max RF Power / EIRP 2.4GHz: < 30dBm
• Max RF Power / EIRP 5GHz: < 30dBm
• SSID: 1 Root SSID + 4 Guest SSID on 2.4GHz, 1 Root SSID + 4 Guest SSID on 5GHz
• Encryption Security: WEP, WPA/WPA2/WPA3 Personal Mixed Mode
• Wireless Security: Wireless ACL MAC Address Filtering, IP Address Filtering, URL Filtering, WPS, Wireless Schedule
• Easy Mesh: Supported
• Maximum Supported Clients: 32 Clients on 2.4GHz, 32 Clients on 5GHz
• Wireless Extender: Repeater Supported
• Internet Connection Types: DHCP, PPPoE, Static, Bridge Bind LAN, 802.1Q VLAN, IPv4 / IPv6, Multi-WAN
• Firewall: IP Filtering, MAC Filtering, Parental Control, URL Filtering
• ALG: SIP, RTSP, IPsec, PPTP, L2TP
• NAT: DMZ, Port Forwarding, UPnP
• VPN: PPTP, L2TP, GRE, OpenVPN
• LAN Features: DHCP Server, DHCP Client, Address Reservation, Domain Name, Web-Based HTTP/HTTPS Management Interface, Remote Management Control WAN Access Control, SNMP
• System Management: TR-069 Data Model TR-098, TR-181, TR-143, STUN, DDNS, SNTP Synchronization, System Log
• Other Features: IGMP Proxy, QoS Bandwidth Control, DoS, Ping / Traceroute Diagnostic, Auto Reboot
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
Applications:
• Home Wi-Fi 6 network upgrade
• Small office wireless network
• 4K streaming
• Online gaming
• Video calls and remote work
• Smart home device connectivity
• Multi-device wireless environments
• Wired connection for PCs and smart TVs
• Wired connection for DVR/NVR devices and switches
• Guest Wi-Fi network setup
• Mesh Wi-Fi expansion using Easy Mesh
• Wi-Fi range extension using Repeater Mode
• Secure home networking with WPA3 and firewall protection
• QoS-based bandwidth control for home and office users
Connect Gates Recommendation:
• Recommended for customers who need an affordable Wi-Fi 6 router with Gigabit wired ports, wider antenna coverage, Easy Mesh, WPA3 security, and flexible management features.
• Suitable for homes, apartments, small offices, smart homes, streaming users, gamers, and customers upgrading from Wireless N or AC routers to Wi-Fi 6.
