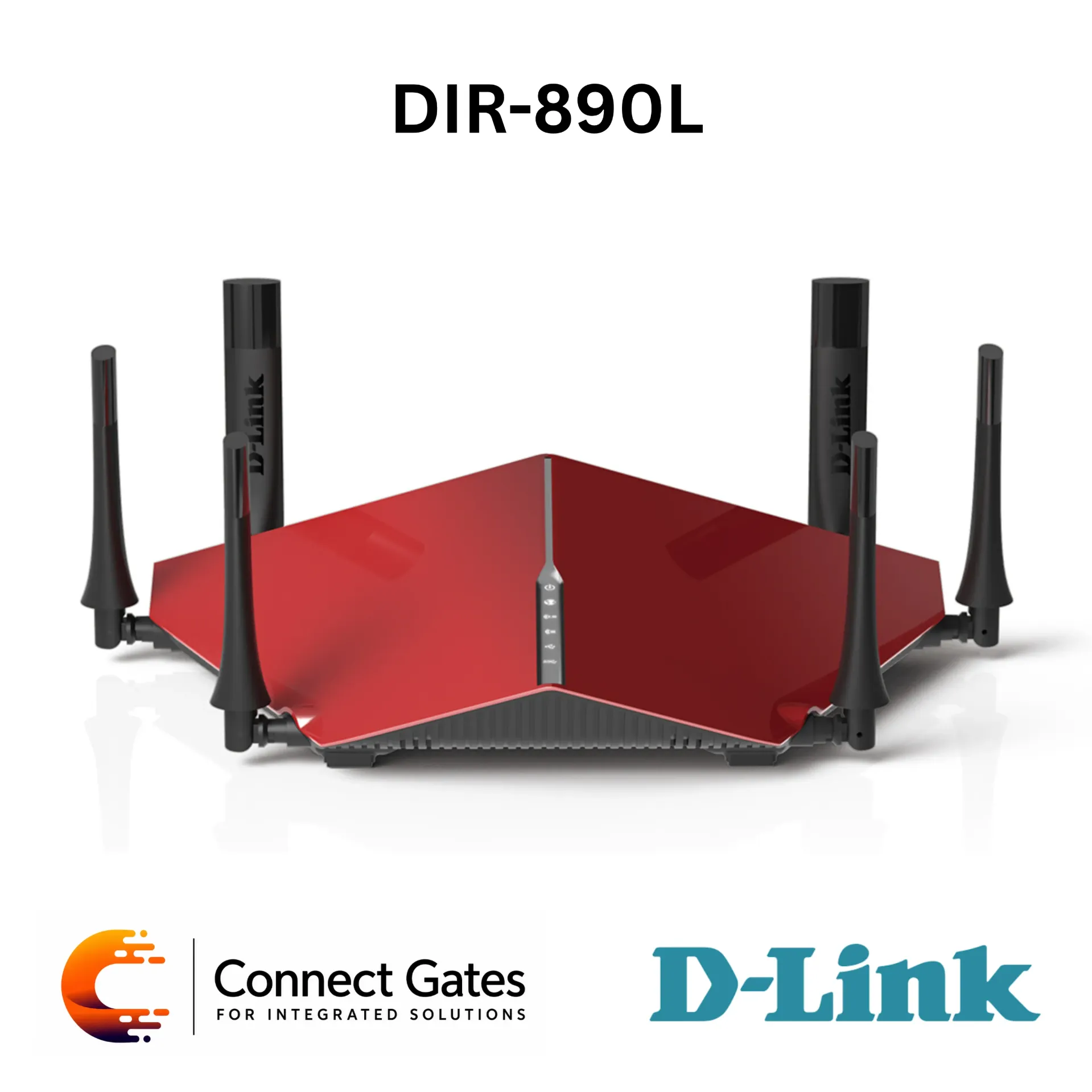

D-Link DIR-890L – AC3200 Tri-Band Ultra Wi-Fi Router with Advanced AC SmartBeam, SmartConnect, 4 Gigabit LAN Ports, Gigabit WAN, USB 3.0, USB 2.0 & mydlink Cloud
Overview:
• The D-Link DIR-890L is an AC3200 Ultra Wi-Fi Router designed for high-performance home and small office wireless networking.
• It uses concurrent tri-band wireless technology to deliver total wireless speeds up to 3.2Gbps, including 1300Mbps + 1300Mbps Wireless AC and 600Mbps Wireless N.
• Advanced AC SmartBeam improves wireless performance, coverage, and signal strength for smoother streaming, internet calls, browsing, and gaming.
• SmartConnect combines the router’s wireless radio interfaces into one simple Wi-Fi network name and helps balance connected devices across the available bands for better performance.
• Advanced QoS prioritizes important traffic such as HD streaming and online gaming.
• The router includes four Gigabit LAN ports, one Gigabit WAN port, one USB 3.0 port, and one USB 2.0 port for high-speed wired connectivity and file sharing.
• mydlink Cloud support allows remote network monitoring and management from a web browser or mobile app.
• mydlink SharePort allows users to share documents, movies, photos, music, USB storage, and media files across mobile devices.
• Suitable for HD streaming, online gaming, smart homes, high-speed internet sharing, USB file sharing, and advanced home network control.
Key Features:
• AC3200 Ultra Wi-Fi Router
• Concurrent Tri-Band Wireless Technology
• Total Wireless Speed up to 3.2Gbps
• 1300Mbps Wireless AC + 1300Mbps Wireless AC + 600Mbps Wireless N
• Advanced AC SmartBeam Technology
• SmartConnect Technology
• Advanced Quality of Service QoS
• Airtime Fairness
• Band Steering
• Six External Antennas
• 4 × 10/100/1000 Gigabit LAN Ports
• 1 × 10/100/1000 Gigabit WAN Port
• 1 × USB 3.0 Port
• 1 × USB 2.0 Port
• mydlink Cloud Enabled
• mydlink Remote Management
• mydlink SharePort Web Access
• DLNA Media Server Support
• Guest Zone Support
• Green Ethernet
• Dual Active Firewall
• NAT Firewall
• Stateful Packet Inspection SPI
• VPN Passthrough PPTP / L2TP / IPsec
• QuickVPN L2TP over IPsec
• WPA / WPA2 Wireless Security
• WPS PIN / PBC Support
• QRS Mobile App Setup Support
• Multi-Language Web Setup Wizard
• IPv6 Ready
• Wi-Fi Certified and WMM Support
Technical Specifications:
• Product Type: AC3200 Tri-Band Ultra Wi-Fi Router
• Brand: D-Link
• Model: DIR-890L
• Wireless Standard: IEEE 802.11a/b/g/n/ac
• Wireless Class: AC3200
• Wireless Bands: Concurrent Tri-Band
• Maximum Wireless Throughput: Up to 3.2Gbps
• Wireless Speed: 1300Mbps Wireless AC + 1300Mbps Wireless AC + 600Mbps Wireless N
• LAN Ports: 4 × 10/100/1000 Gigabit LAN Ports
• WAN Port: 1 × 10/100/1000 Gigabit WAN Port
• USB Ports: 1 × USB 3.0 Port, 1 × USB 2.0 Port
• Antenna Type: Six External Antennas
• Wireless Features: Advanced AC SmartBeam, SmartConnect, Band Steering, Airtime Fairness
• Advanced Features: Guest Zone, mydlink SharePort Web Access, Multi-Language Web Setup Wizard, Green Ethernet, DLNA Media Server Support, Advanced QoS
• Firewall: Dual Active Firewall, NAT, SPI
• VPN Support: VPN Passthrough PPTP / L2TP / IPsec, QuickVPN L2TP over IPsec
• Remote Management: mydlink Cloud Remote Management
• mydlink Features: View Upload / Download Bandwidth, View Connected Clients, View Web Browsing History per Client, Block / Unblock Client Network Access, Manage Wireless Network Details
• Mobile App Support: mydlink Lite, mydlink SharePort, QRS Mobile v1.5
• Wireless Security: WPA, WPA2, WPS PIN / PBC
• Standards: IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, IEEE 802.3, IEEE 802.3u
• Minimum OS Requirements: Windows 8 / 7 / Vista / XP SP3 or Mac OS X 10.4 or Higher
• Browser Support: Internet Explorer 8 or Higher, Firefox 12 or Higher, or Other Java-Enabled Browser
• Network Requirement: Ethernet Network Interface
• Internet Requirement: Cable or DSL Modem and Internet Service Provider Subscription
• Dimensions: 387 × 247.3 × 119.5 mm
• Power Input: 100–240V AC, 50/60Hz
• Power Output: 12V DC / 5A
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 0% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: Wi-Fi Certified, WPS, WMM, DLNA, IPv6 Ready, Compatible with Windows 8
• Available Colors: Black / Red
Applications:
• High-performance home Wi-Fi network
• HD streaming and online gaming
• Smart home device connectivity
• Multiple connected device environments
• USB file sharing and media sharing
• mydlink Cloud remote monitoring
• Guest Wi-Fi network setup
• High-speed internet sharing
• Gigabit wired connection for PCs and media devices
• NAS, media center, and gaming console connectivity
• Advanced home and SOHO networking
Connect Gates Recommendation:
• Recommended for users who need a premium AC3200 tri-band router with strong Wi-Fi performance, SmartConnect, Advanced AC SmartBeam, Gigabit ports, USB sharing, and mydlink Cloud management.
• Suitable for large homes, heavy internet users, streaming environments, online gaming, smart homes, and users who need advanced wireless coverage with strong network control.
