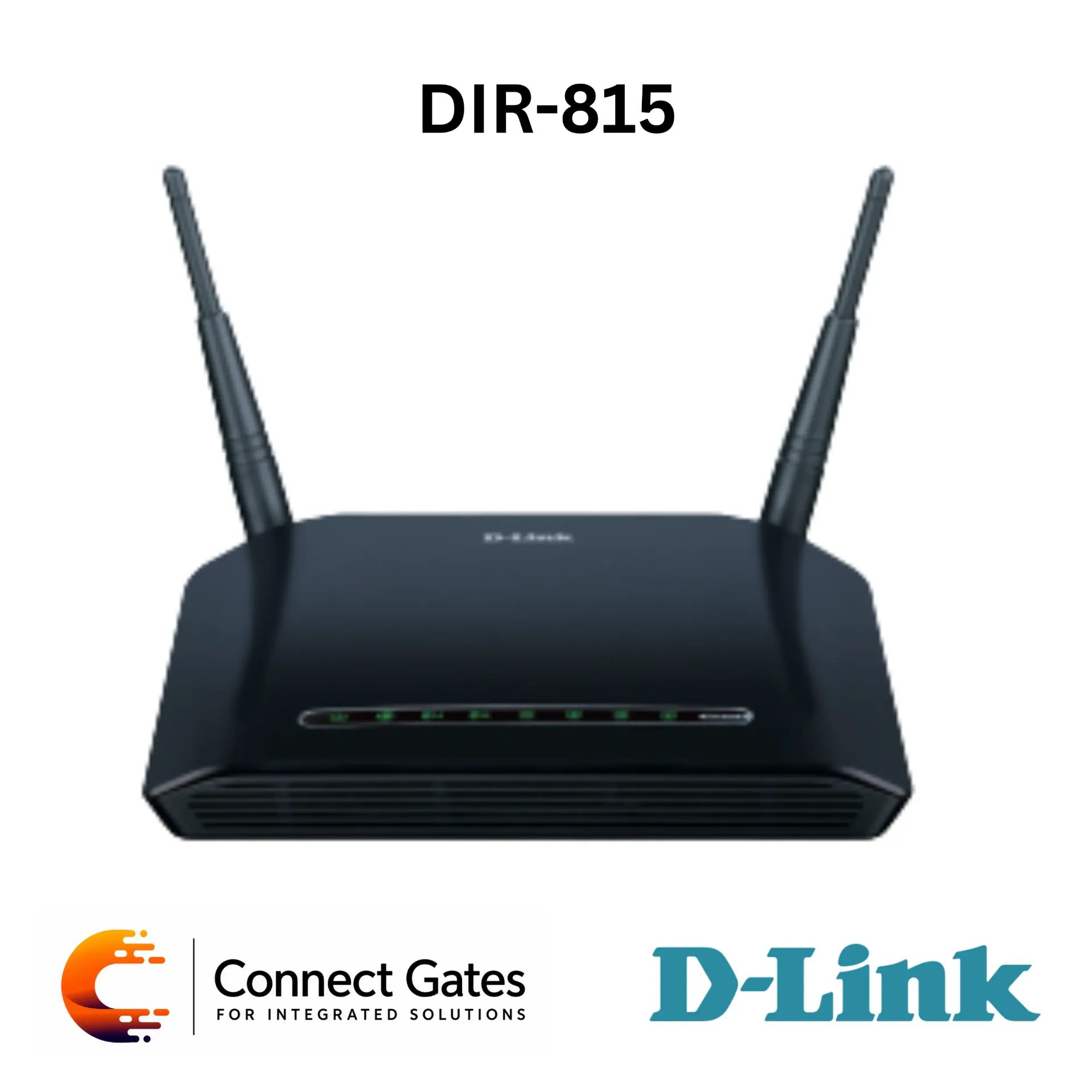

D-Link DIR-815 – Wireless N Dual Band Router with 4 Fast Ethernet LAN Ports, Fast Ethernet WAN, WPA/WPA2, NAT/SPI Firewall & VPN Pass-through
Overview:
• The D-Link DIR-815 is a Wireless N Dual Band Router designed for high-performance home and small office wireless networking.
• It supports simultaneous 2.4GHz and 5GHz wireless bands, allowing users to browse, email, and use daily internet applications on 2.4GHz while streaming HD movies or gaming on the clearer 5GHz band.
• The router connects to a cable or DSL modem to share high-speed internet access with multiple computers, game consoles, media players, and wireless devices.
• Dual-band technology helps reduce interference, avoid network overload, and improve wireless performance for multimedia and gaming applications.
• The DIR-815 uses Wireless N technology with intelligent antennas to improve speed, range, and coverage compared to older Wireless G devices.
• Four 10/100 LAN ports and one 10/100 WAN port provide wired connectivity for PCs, switches, DVR/NVR devices, smart TVs, and other Ethernet-enabled devices.
• Security features include WPA/WPA2 wireless encryption and Dual Active Firewall protection using NAT and SPI to help protect the network from unauthorized access and internet-based attacks.
• VPN Pass-through with IPSec support allows compatible VPN traffic to pass through the router for remote access usage.
• D-Link Green features help reduce power consumption by powering down inactive ports, adjusting power output based on cable length, and supporting wireless LAN scheduling.
• The product is discontinued, so it is more suitable for replacement, legacy compatibility, or existing stock requirements.
Key Features:
• Wireless N Dual Band Router
• Simultaneous 2.4GHz and 5GHz Wireless Bands
• Wireless N Technology
• Better Speed and Range than Wireless G
• Suitable for Larger Homes and Offices
• 2 × External Dipole Antennas
• 1 × 10/100 Fast Ethernet WAN Port
• 4 × 10/100 Fast Ethernet LAN Ports
• WPA / WPA2 Wireless Security
• Dual Active Firewall Protection
• NAT Firewall
• Stateful Packet Inspection SPI
• VPN Pass-through / IPSec
• QoS Engine for Time-Sensitive Traffic
• Supports Smooth VoIP Calls and Responsive Gaming
• Share Photos, Files, Music and Printers Wirelessly
• D-Link Green Energy-Saving Features
• Wireless LAN Scheduling
• Automatic Power Down for Inactive Ports
• Cable Length Power Adjustment
• Energy Star Qualified Power Adapter
• RoHS-Compliant Design
• Web Browser-Based Management
• Product Status: Discontinued
Technical Specifications:
• Product Type: Wireless N Dual Band Router
• Brand: D-Link
• Model: DIR-815
• Product Status: Discontinued
• Wireless Standard: IEEE 802.11n/g/b/a
• Wireless Technology: Wireless N
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• LAN Ports: 4 × 10/100 LAN Ports
• WAN Port: 1 × 10/100 WAN Port
• Antenna Type: 2 × External Dipole Antennas
• Wireless Security: WPA / WPA2
• Firewall: NAT, SPI
• VPN Support: VPN Pass-through / IPSec
• Device Management: Internet Explorer v7 or Later, Mozilla Firefox v3.0 or Later, or Other Java-Enabled Browsers
• LED Indicators: Power, Status, WAN 10/100, WLAN, LAN 10/100
• Certifications: FCC Class B, IC, Wi-Fi
• Dimensions: 157.5 × 119.4 × 30.5 mm
• Weight: 213.2g
• Operating Temperature: 0°C to 40°C
• Warranty: 1-Year Limited
• Downloads Listed: Firmware, Installation Guide, Datasheet
Applications:
• Home Wi-Fi network
• Small office wireless network
• Larger home wireless coverage
• Dual-band internet sharing
• HD movie streaming on 5GHz
• Online gaming
• VoIP internet calls
• Web browsing and email
• Wired connection for PCs and media players
• Wired connection for DVR/NVR devices and switches
• Secure wireless network with WPA/WPA2
• VPN pass-through usage
• Legacy router replacement
Connect Gates Recommendation:
• Recommended only for customers who need a legacy Wireless N dual-band router for replacement, compatibility, or existing stock usage.
• For new installations, a newer AC1200 / Wi-Fi 6 model is recommended for better speed, coverage, security, and long-term support.
