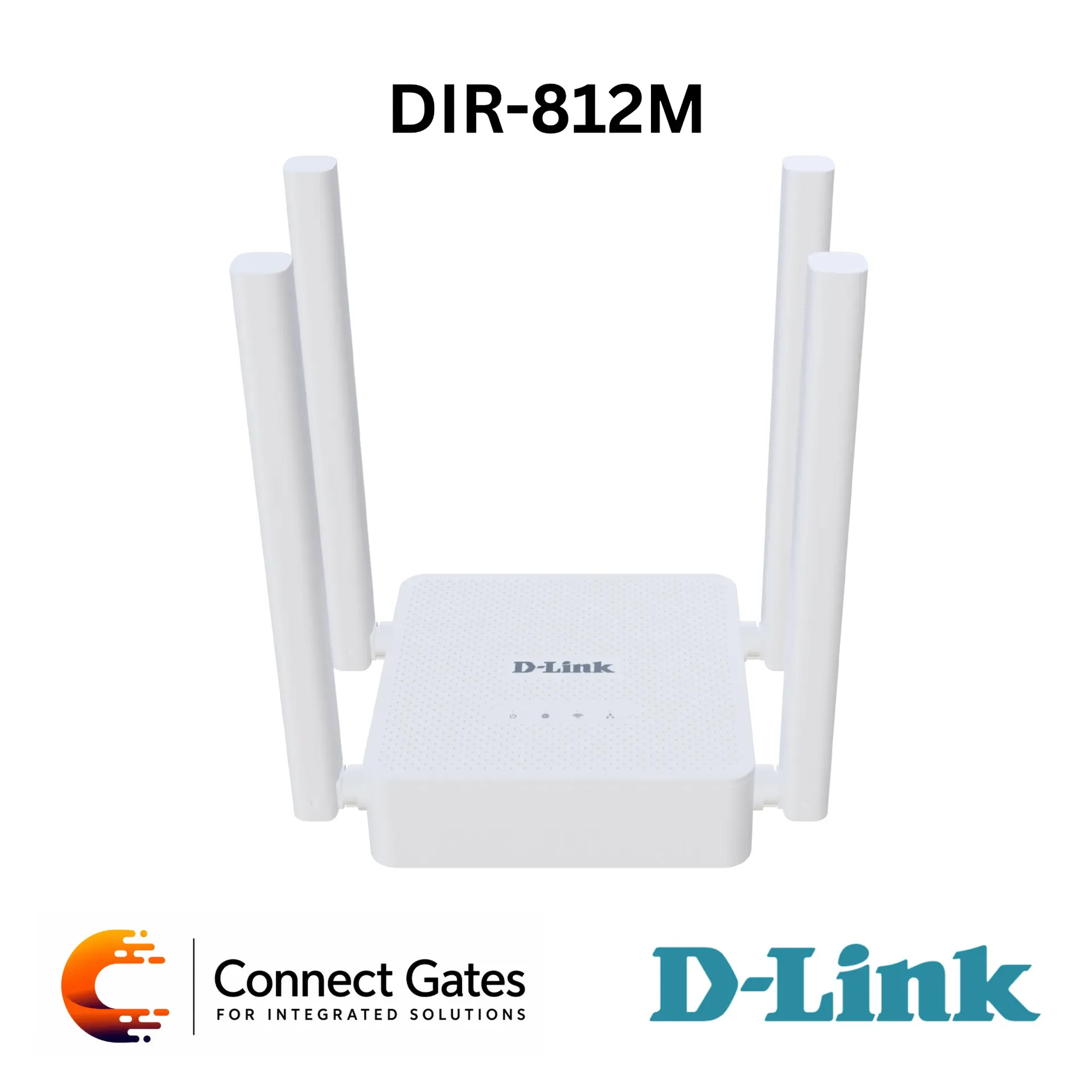

D-Link DIR-812M – AC1200 Dual Band Wi-Fi Router with 4 External Antennas, Easy Mesh, WPA3, 3 Fast Ethernet LAN Ports, Fast Ethernet WAN & Repeater Mode
Overview:
• The D-Link DIR-812M is an AC1200 Dual Band Wi-Fi Router designed for home and Small Office / Home Office SOHO wireless networking.
• It combines Wireless AC technology, dual-band Wi-Fi, Fast Ethernet ports, MU-MIMO wireless performance, Beamforming, and advanced security features in one compact router.
• The router provides combined wireless speeds up to 1200Mbps, with up to 300Mbps on the 2.4GHz band and up to 867Mbps on the 5GHz band.
• Dual-band Wi-Fi allows users to browse, make internet calls, and use daily applications on the 2.4GHz band while streaming HD, 4K, 3D video, and high-bandwidth applications on the 5GHz band.
• The DIR-812M supports Easy Mesh, allowing two or more compatible DIR-812M routers to be used together for wider coverage.
• Four external 5dBi antennas help improve wireless range and connection stability.
• The router includes one 10/100 WAN port and three 10/100 LAN ports for wired network devices.
• Multiple operating modes include Router, Access Point, Repeater, and Wi-Fi Client mode for flexible deployment.
• Security features include WPA/WPA2/WPA3 encryption, NAT firewall, SPI firewall, DoS protection, MAC filtering, IP filtering, port filtering, DMZ, and port forwarding.
Key Features:
• AC1200 Dual Band Wi-Fi Router
• IEEE 802.11ac Wireless Technology
• MU-MIMO Wireless Performance
• Dual-Band Wireless Connectivity
• Wireless Speed up to 1200Mbps
• 2.4GHz Speed up to 300Mbps
• 5GHz Speed up to 867Mbps
• Easy Mesh Support
• Beamforming Support
• Client Bandwidth Management
• 1 × 10/100 Fast Ethernet WAN Port
• 3 × 10/100 Fast Ethernet LAN Ports
• 4 × 5dBi External Antennas
• WPA / WPA2 / WPA3 Encryption
• WPS Support
• MAC Filter Support
• Router Mode
• Access Point Mode
• Wireless Repeater Mode
• Wi-Fi Client Mode
• Multiple SSID Support
• Wireless Schedule
• NAT and SPI Firewall
• DoS Protection
• Port Filtering
• IP Filtering
• MAC Filtering
• DMZ and Port Forwarding
• NAPT and ALG Support
• IPSec / PPTP / L2TP Pass-through
• Dynamic DNS and Static Routing
• DHCP Server / Client
• Web GUI Management
• TR-069 Support with Supported Firmware Version
Technical Specifications:
• Product Type: AC1200 Dual Band Wi-Fi Router
• Brand: D-Link
• Model: DIR-812M
• Wireless Standard: IEEE 802.11a/b/g/n/ac
• Wireless Class: AC1200
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• 2.4GHz Wireless Speed: Up to 300Mbps
• 5GHz Wireless Speed: Up to 867Mbps
• WAN Port: 1 × RJ45 10/100M WAN Ethernet Interface
• LAN Ports: 3 × RJ45 10/100M LAN Ethernet Interfaces
• Antenna Type: 4 × 5dBi External Antennas
• Frequency Range 2.4GHz: 2.4GHz – 2.4835GHz
• Frequency Range 5GHz: 5.150GHz – 5.350GHz
• Maximum Output Power 2.4GHz: 20dBm
• Maximum Output Power 5GHz: 23dBm
• Wireless Security: WPA / WPA2 / WPA3 Encryption
• Additional Wireless Security: MAC Filter, WPS
• Advanced Wireless Functions: Wireless Client Mode, Wireless AP Mode, Wireless Repeater Mode, Multiple SSIDs, Wireless Schedule
• Mesh Support: Easy Mesh
• WAN Connection Types: PPPoE, Static IP, Dynamic IP
• Network Functions: DHCP Server / Client, Dynamic DNS, Static Routing
• Firewall Functions: NAT, SPI, Port Filtering, DMZ, Port Forwarding, NAPT, ALG, DoS Protection
• VPN Pass-through: IPSec / PPTP / L2TP Pass-through
• Management: Web GUI, Firmware Update via Web-Based Interface, Save / Restore Configuration File, Automatic NTP Date / Time, Logs and Statistics, TR-069 Support
• Buttons: Reset Button / WPS Button
• LED Indicators: Power LED, Internet LED Red / Green, Wi-Fi LED, Ethernet LED
• Power Connector: DC Power Input
• Power Input: 12V DC / 1A
• Dimensions: 105 × 105 × 31.5 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Ordering Information: DIR-812M – AC1200 Dual Band Wi-Fi Router
Applications:
• Home Wi-Fi network
• Small office wireless network
• SOHO internet sharing
• HD, 4K and 3D video streaming
• Online gaming
• VoIP and internet calls
• Easy Mesh wireless expansion
• Access point deployment
• Wireless repeater deployment
• Wi-Fi client mode usage
• Guest or segmented Wi-Fi using multiple SSIDs
• Wired connection for PCs, TVs, DVR/NVR devices and network equipment
• Secure network access with WPA3, firewall and filtering options
Connect Gates Recommendation:
• Recommended for home and small office users who need an affordable AC1200 dual-band router with Easy Mesh support, external antennas, WPA3 security, and flexible operating modes.
• Suitable for apartments, small offices, shops, light streaming, daily internet usage, and simple Wi-Fi expansion projects where Fast Ethernet ports are acceptable.
