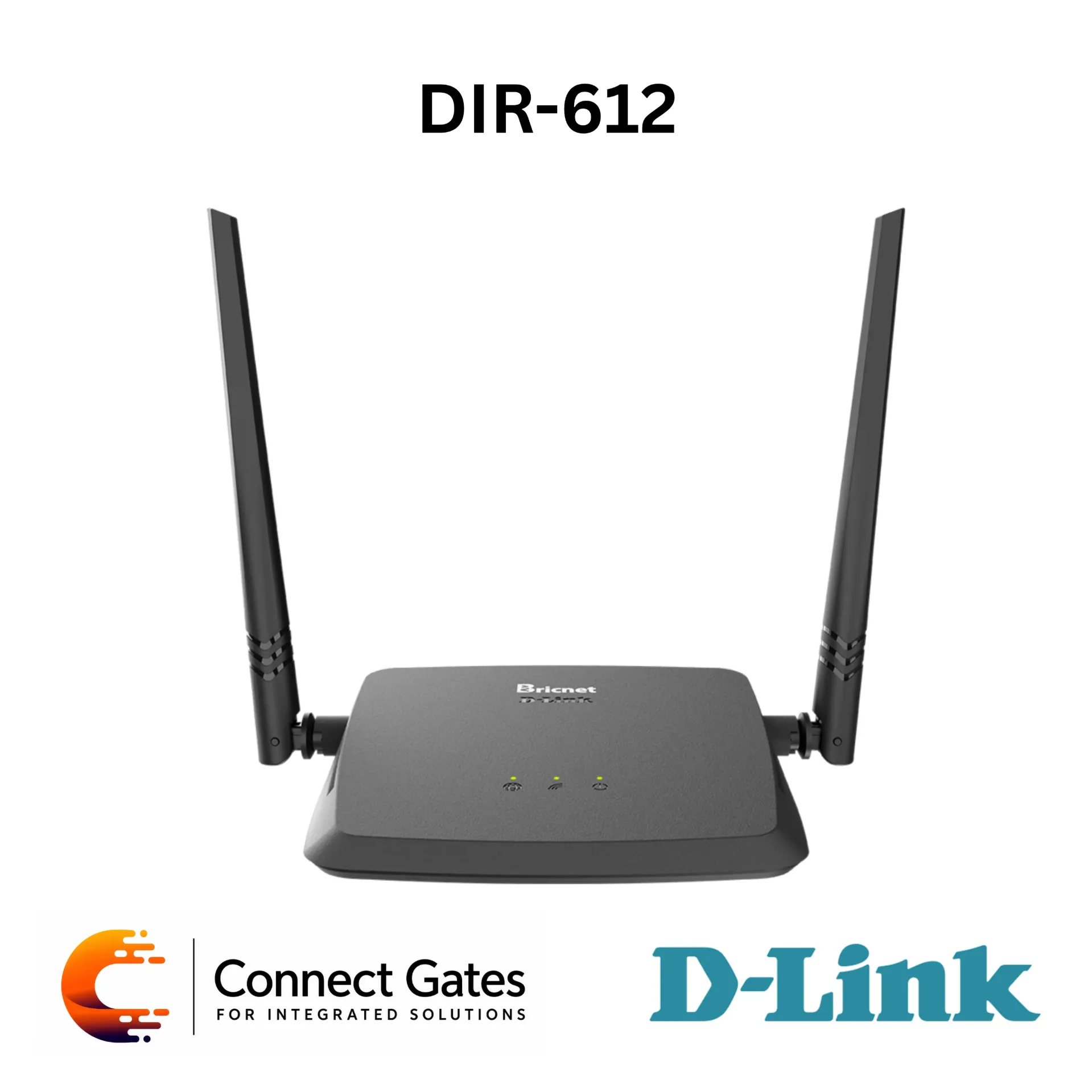

D-Link DIR-612 – Wireless N300 Router with 4 Fast Ethernet LAN Ports, Fast Ethernet WAN, 5dBi External Antenna, Repeater Mode, WPA/WPA2 & WPS
Overview:
• The D-Link DIR-612 is a Wireless N300 Router designed for home and small office internet sharing.
• It allows users to connect the router to a broadband modem and share internet access with wired and wireless devices.
• Wireless N technology provides wireless speeds up to 300Mbps for fast file transfers, seamless web surfing, online gaming, and daily internet usage.
• The external 5dBi antenna helps increase wireless coverage and reduce dead spots across the home or small office.
• The router includes one 10/100 Internet WAN port and four 10/100 Fast Ethernet LAN ports for wired devices such as PCs, DVR/NVR devices, smart TVs, switches, and gaming consoles.
• Repeater Mode allows the DIR-612 to extend the range of an existing wireless network and improve coverage in weak-signal areas.
• Security features include WPA/WPA2 wireless encryption, Wi-Fi Protected Setup WPS, and NAT Firewall to help protect the network from unwanted access and intrusions.
• Setup is simple through a web-based Setup Wizard that guides users step by step through the configuration process.
Key Features:
• Wireless N300 Router
• Wireless Speed up to 300Mbps
• IEEE 802.11n/g/b Wireless Standard
• 2.4GHz Wireless Operation
• Wireless Frequency Range 2.4GHz – 2.4835GHz
• 18dBm EIRP
• 1 × 10/100 Internet WAN Port
• 4 × 10/100 Fast Ethernet LAN Ports
• 5dBi External Antenna
• Repeater Mode Support
• WPA / WPA2 Wireless Encryption
• Wi-Fi Protected Setup WPS
• NAT Firewall Protection
• UPnP Support
• Web-Based Setup Wizard
• Browser-Based Configuration
• Suitable for Home and Small Office Networks
• Suitable for Browsing, File Transfers and Online Gaming
Technical Specifications:
• Product Type: Wireless N300 Router
• Brand: D-Link
• Model: DIR-612
• Wireless Standard: IEEE 802.11n/g/b
• Wireless Class: N300
• Wireless Speed: Up to 300Mbps
• Wireless Frequency Range: 2.4GHz – 2.4835GHz
• EIRP: 18dBm
• Device Interfaces: Wireless N300, 4 × 10/100 LAN Ports, 1 × 10/100 WAN Internet Port
• WAN Port: 1 × 10/100 WAN Internet Port
• LAN Ports: 4 × 10/100 Fast Ethernet LAN Ports
• Antenna Type: 5dBi External Antenna
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Security: WPA / WPA2 Wireless Encryption
• WPS: Wi-Fi Protected Setup
• Firewall: Active Firewall, Network Address Translation NAT
• Advanced Features: Web Setup Wizard, UPnP Support, Repeater Mode
• LED Indicators: Power LED, WLAN LED, Internet LED
• Button: WPS / Reset Button
• Power Connector: Supported
• Minimum OS Requirements: Windows, Macintosh, or Linux-Based Operating System
• Browser Support: Microsoft Internet Explorer 10 or Higher, Microsoft Edge 20.10240 or Higher, Firefox 44, Chrome 48 or Higher, Safari 8, Opera 35
• Network Requirement: Wired or Wireless Ethernet Adapter for Internet Access
• Internet Requirement: Subscription with an Internet Service Provider
• Dimensions: 130.5 × 129.8 × 34.0 mm
• Weight: 440g
• Power Input: 100–240V AC, 50/60Hz
• Power Consumption: 9V / 0.6A
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC
• Ordering Information: DIR-612 – Wireless N300 Router
Applications:
• Home Wi-Fi network
• Small office internet sharing
• Web browsing and email
• Online gaming
• Video streaming
• Fast file transfers
• Wired connection for desktop PCs
• Wired connection for DVR/NVR devices
• Wired connection for smart TVs and switches
• Wi-Fi range extension using Repeater Mode
• Basic secure wireless network setup
• Daily internet usage for laptops, smartphones and tablets
Connect Gates Recommendation:
• Recommended for users who need a simple and affordable Wireless N300 router with 4 LAN ports, Repeater Mode, WPA/WPA2 security, WPS, and easy web-based setup.
• Suitable for homes, apartments, shops, and small offices where Fast Ethernet ports and 2.4GHz Wi-Fi are enough for daily internet usage.
