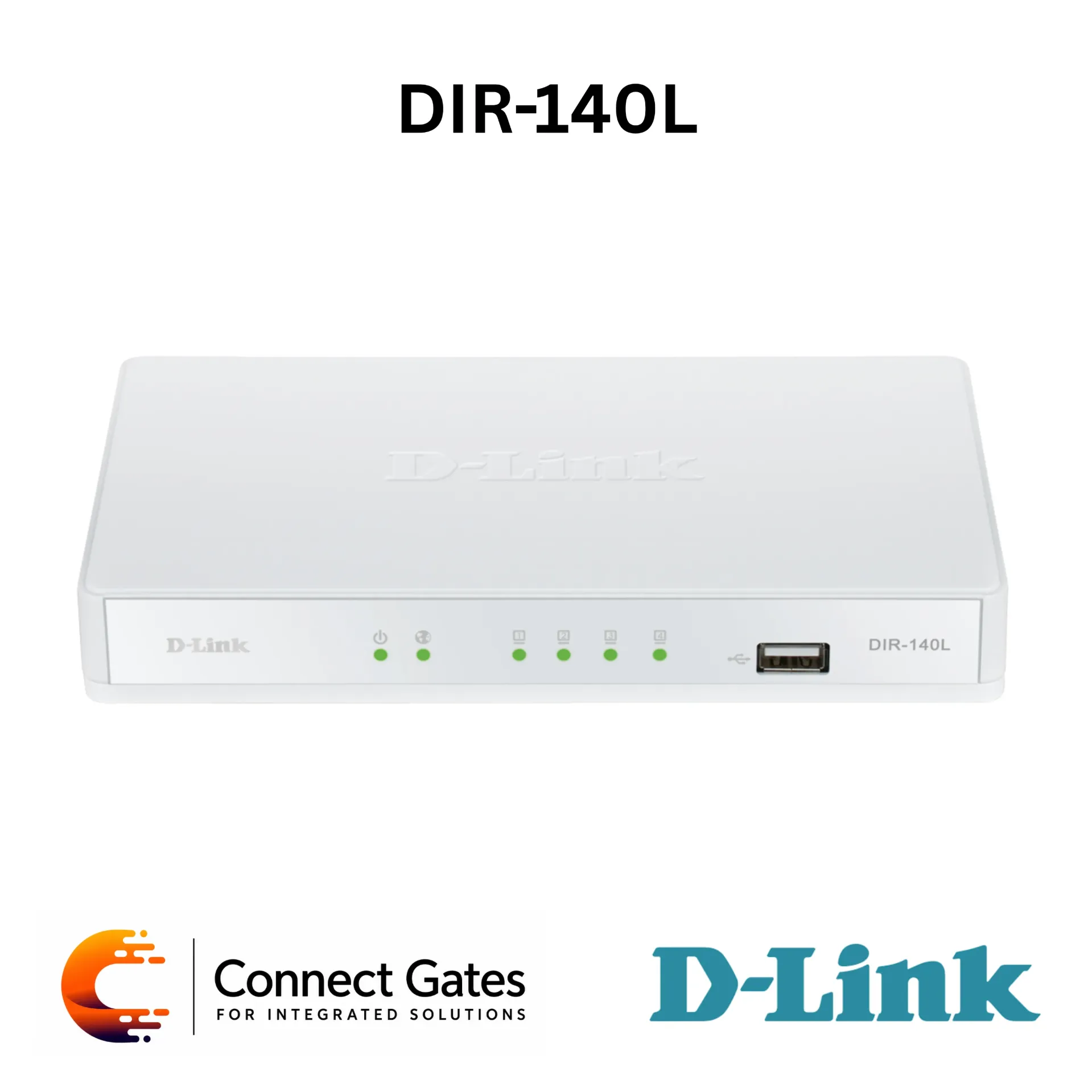

D-Link DIR-140L – Broadband Cloud VPN Router with 4-Port 10/100 Switch, WAN Port, USB 2.0, RS-232 COM, mydlink Cloud, 25 VPN Tunnels & NAT/SPI Firewall
Overview:
• The D-Link DIR-140L is a Broadband Cloud VPN Router designed for Small Office / Home Office secure wired networking.
• It combines router, 10/100 switch, VPN, firewall, and cloud management functions in one compact desktop device.
• The router can be connected to a cable or DSL line to share high-speed internet access across wired network devices.
• It includes four 10/100 LAN ports and one 10/100 WAN port for wired network connectivity.
• The DIR-140L supports VPN Client and Server functions with a hardware VPN engine for secure remote access and site-to-site connectivity.
• It supports up to 25 VPN tunnels using IPSec, PPTP, L2TP, and GRE protocols.
• Advanced VPN features include IPSec LAN-to-LAN, Remote User VPN, PPTP/L2TP Server/Client, IPSec NAT-Traversal, XAUTH, DES/3DES/AES encryption, and IKE/ISAKMP key management.
• mydlink Cloud allows remote monitoring and management from a web browser or iOS / Android mobile app.
• Security features include NAT, PAT, SPI firewall, internal user database, network access control, content management, and firewall protection.
• Suitable for small offices, home offices, remote users, secure branch connectivity, wired VPN networks, and cloud-managed business internet sharing.
Key Features:
• Broadband Cloud VPN Router
• Wired VPN Router for SOHO Networks
• Router, Switch, VPN and Firewall in One Device
• 4 × 10/100 LAN Ports
• 1 × 10/100 WAN Port
• 1 × USB 2.0 Port
• 1 × RS-232 COM Port
• Kensington Lock Slot
• mydlink Cloud Enabled
• Remote Network Management
• View Current Upload / Download Bandwidth
• View Currently Connected Clients
• View Web Browsing History per Client
• Block / Unblock Client Network Access
• VPN Client and Server Support
• Hardware VPN Engine
• Up to 25 VPN Tunnels
• IPSec / PPTP / L2TP / GRE VPN Support
• IPSec LAN-to-LAN / Remote User Support
• PPTP / L2TP Server and Client
• IPSec / PPTP / L2TP Pass-through
• IPSec NAT-Traversal
• XAUTH Extended Authentication
• DES / 3DES / AES Encryption
• IKE / ISAKMP Automated Key Management
• Main / Aggressive Negotiation Mode
• Dual Active Firewall
• NAT and PAT Firewall Operation
• Stateful Packet Inspection SPI
• Internal User Database with 10 Records
• DHCP Server / Client
• DNS Relay and Dynamic DNS
• Static Routes
• Quality of Service QoS
• SysLog Support and E-mail Alerts
• SNMP Management
Technical Specifications:
• Product Type: Broadband Cloud VPN Router
• Brand: D-Link
• Model: DIR-140L
• Device Type: Wired VPN Router
• Wireless: Not Supported / Wired Router
• Target Market: Small Office / Home Office SOHO
• Standards: IEEE 802.3, IEEE 802.3u
• LAN Ports: 4 × 10/100 LAN Ports
• WAN Port: 1 × 10/100 WAN Port
• USB Port: 1 × USB 2.0
• COM Port: 1 × RS-232 COM Port
• Security Slot: Kensington Lock Slot
• LED Indicators: Power / Status, LAN 1/2/3/4
• Firewall Mode: Layer 3 NAT Mode, NAT, Port Forwarding, PAT
• Firewall Security: SPI, NAT, Internal User Database 10 Records
• VPN Tunnels: Up to 25
• VPN Protocols: IPSec, PPTP, L2TP, GRE
• VPN Modes: IPSec LAN-to-LAN / Remote User, PPTP/L2TP Server/Client
• VPN Pass-through: IPSec / PPTP / L2TP Pass-through
• VPN Advanced Features: IPSec NAT-Traversal, XAUTH Extended Authentication
• Encryption: DES, 3DES, AES
• Key Management: IKE / ISAKMP
• Negotiation Modes: Main / Aggressive Negotiation
• Network Services: Static IP Address, DHCP Client for WAN Interface, Internal DHCP Server, Static Routes, DNS Resolving of Remote Gateway, PPPoE for xDSL, Russian PPPoE/PPTP Dual Access, QoS, Dynamic DNS
• Cloud Management: mydlink Remote Management
• mydlink Features: View Upload / Download Bandwidth, View Connected Clients, View Web Browsing History per Client, Block / Unblock Client Network Access
• Device Management: Web-Based Management Interface
• Browser Support: Internet Explorer 6 or Later, or Other Java-Enabled Browser
• Management Access Rights: Admin or Read/Write Administrator Rights
• Power: 12V DC / 1A
• Dimensions: 111.8 × 188.0 × 28.0 mm
• Weight: 245g
• Operating Temperature: 0°C to 55°C
• Operating Humidity: 95% Maximum Non-Condensing
• Certifications: FCC Class B, CE, UL
• Ordering Information: DIR-140L – Broadband Cloud VPN Router
Applications:
• Small office VPN gateway
• Home office secure wired router
• Remote user VPN access
• IPSec LAN-to-LAN VPN connection
• PPTP / L2TP VPN access
• GRE tunnel deployment
• Secure business internet sharing
• Wired network access control
• Cloud-managed router monitoring
• Employee internet activity management
• Branch office secure connectivity
• Firewall-protected SOHO network
• Static routing and Dynamic DNS use cases
• QoS-based traffic management
Connect Gates Recommendation:
• Recommended for small offices that need a wired cloud-managed VPN router with secure remote access, firewall protection, and mydlink remote monitoring.
• Suitable for SOHO networks, remote users, branch VPN connectivity, and wired business networks where Wi-Fi is not required.
