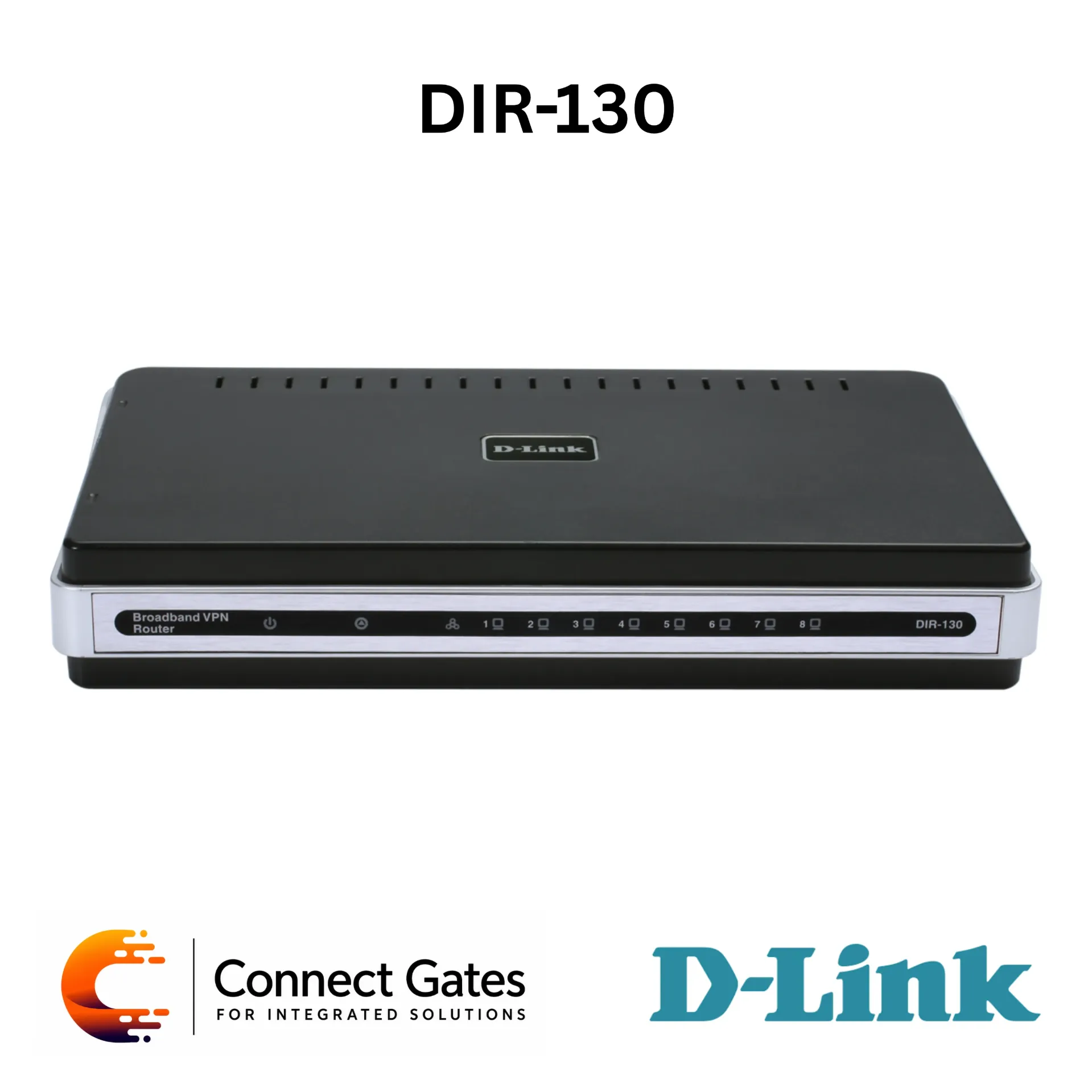

D-Link DIR-130 – NetDefend SOHO Ethernet VPN Router with 8-Port 10/100 Switch, WAN Port, USB 1.1, 25 VPN Tunnels, IPSec/PPTP/L2TP & NAT/SPI Firewall
Overview:
• The D-Link DIR-130 is a NetDefend SOHO Ethernet VPN Router designed for Small Office / Home Office secure wired networking.
• It is a simple-to-deploy wired VPN router built for businesses that need reliable performance, network security, VPN access, and internet sharing in a compact desktop chassis.
• The router can connect to a cable or DSL internet line to share high-speed internet access across multiple wired devices.
• It includes an integrated 8-port full-duplex 10/100 Ethernet switch for connecting up to eight Ethernet-enabled devices.
• The DIR-130 includes an integrated VPN Server with hardware VPN acceleration to support secure remote access for off-site or traveling users.
• It supports up to 25 VPN tunnels using IPSec, PPTP, and L2TP protocols.
• Advanced VPN features include IPSec Site-to-Site, roaming user support, PPTP/L2TP Server/Client, IPSec NAT-Traversal, Dead Peer Detection, XAUTH, X.509v3 certificates, and multiple encryption algorithms.
• Firewall protection includes NAT, PAT, and Stateful Packet Inspection SPI to help protect the network from online intruders and attacks.
• Suitable for small offices, remote access, branch connectivity, wired VPN networks, secure internet sharing, and business environments that require stable Ethernet-based VPN routing.
Key Features:
• NetDefend SOHO Ethernet VPN Router
• Wired VPN Router for Small Office / Home Office
• Integrated 8-Port 10/100 Ethernet Switch
• 1 × 10/100Mbps Ethernet WAN Port
• 8 × 10/100Mbps Ethernet LAN Ports
• 1 × USB 1.1 Port
• Integrated VPN Server
• Hardware VPN Engine
• Supports up to 25 VPN Tunnels
• IPSec VPN Support
• PPTP VPN Support
• L2TP VPN Support
• IPSec Site-to-Site Support
• IPSec Roaming User Support
• PPTP / L2TP Server and Client Support
• IPSec / PPTP Pass-through
• IPSec NAT-Traversal
• IPSec Dead Peer Detection
• XAUTH Extended Authentication for IPSec
• X.509v3 Certificates Support
• DES / 3DES / AES / Twofish / Blowfish Encryption
• IKE / ISAKMP Automated Key Management
• Main / Aggressive Negotiation Modes
• NAT Firewall
• PAT Port Address Translation
• SPI Stateful Packet Inspection Firewall
• Internal User Database up to 150 Records
• DHCP Server
• DHCP Client for WAN Interface
• DNS Relay
• Dynamic DNS Support
• Network Time Protocol NTP Support
• E-mail Alert Support
• Web-Based Management Utility
Technical Specifications:
• Product Type: Wired Ethernet VPN Router
• Brand: D-Link
• Model: DIR-130
• Series: NetDefend SOHO
• Device Type: Ethernet VPN Router with 8-Port 10/100 Switch
• Wireless: Not Supported / Wired Router
• Standards: IEEE 802.3, IEEE 802.3u
• LAN Ports: 8 × 10/100Mbps LAN Ports
• WAN Port: 1 × 10/100Mbps WAN Port
• USB Port: 1 × USB 1.1
• Switch Type: Integrated 8-Port Full-Duplex 10/100 Ethernet Switch
• Firewall Mode: NAT, PAT
• Firewall Security: Stateful Packet Inspection SPI, Network Address Translation NAT
• VPN Tunnels: Up to 25 VPN Tunnels
• VPN Protocols: IPSec, PPTP, L2TP
• VPN Modes: IPSec Site-to-Site, Roaming User, PPTP / L2TP Server / Client
• VPN Pass-through: IPSec / PPTP Pass-through
• VPN Advanced Features: IPSec NAT-Traversal, IPSec Dead Peer Detection, Main / Aggressive Negotiation
• VPN Authentication: XAUTH Extended Authentication, X.509v3 Certificates, Internal User Database
• Encryption: DES, 3DES, AES, Twofish, Blowfish
• Key Management: IKE / ISAKMP
• User Database: Up to 150 Records
• Network Services: Static IP Address, PPPoE for xDSL, DHCP Client for WAN Interface, Internal DHCP Server, Dynamic DNS, DNS Resolving of Remote Site-to-Site VPN Gateway
• Additional Network Support: Big Pond Cable, Telia Compliance
• Management: D-Link Web-Based Management Utility
• Browser Support: Internet Explorer v6 or Later, Firefox 1.5 or Later
• LED Indicators: Power, Status, LAN, WAN
• Certifications: FCC Class B
• Operating Temperature: 0°C to 55°C
• Operating Humidity: 95% Maximum Non-Condensing
• Dimensions: 4.7 × 7.5 × 1.2 in
• Weight: 0.67 lbs
• Warranty: 1-Year Limited
• Ordering Information: DIR-130 – NetDefend SOHO Ethernet VPN Router 8-Port 10/100 Switch
Applications:
• Small office wired VPN gateway
• Home office secure internet sharing
• Remote user VPN access
• IPSec site-to-site VPN connection
• PPTP / L2TP VPN access
• Secure branch office connectivity
• Wired LAN expansion using 8-port switch
• Ethernet-based SOHO network security
• Secure access for traveling users
• Business internet sharing with firewall protection
• Network access control and content management
Connect Gates Recommendation:
• Recommended for small offices that need a wired VPN router with built-in 8-port Fast Ethernet switch, VPN Server, and strong firewall protection.
• Suitable for secure remote access, branch connectivity, and SOHO wired networks where Wi-Fi is not required.
