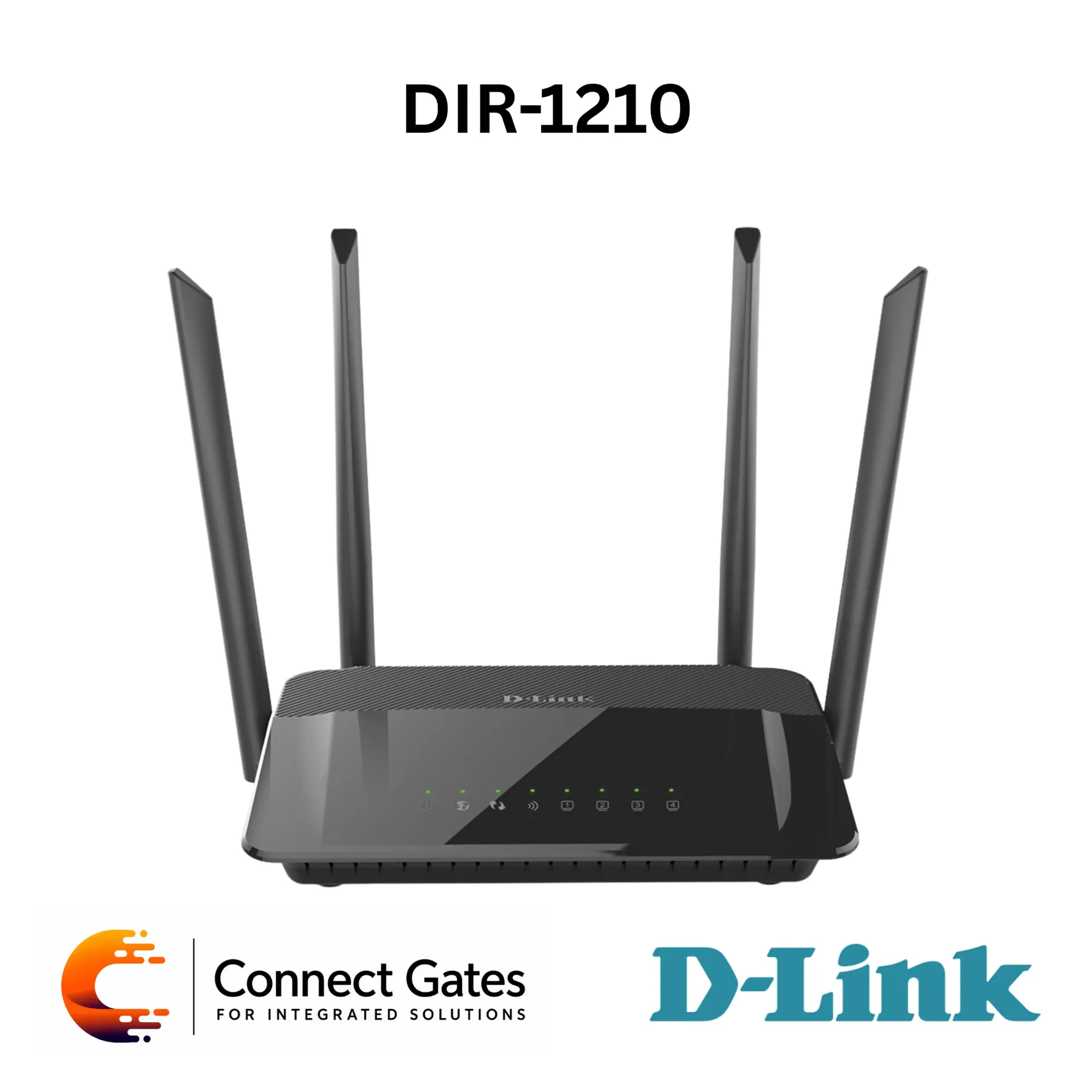

D-Link DIR-1210 – AC1200 Dual Band Wi-Fi Router with 4 Fast Ethernet LAN Ports, Fast Ethernet WAN, MU-MIMO, QoS, IPv6, Guest Zone & Repeater Mode
Overview:
• The D-Link DIR-1210 is an AC1200 Wi-Fi Router designed for home and Small Office / Home Office SOHO wireless networking.
• It combines 802.11ac Wave 2 Wi-Fi technology, dual-band wireless performance, Fast Ethernet ports, MU-MIMO, QoS, and flexible operating modes in one practical router.
• The router provides combined wireless speeds up to 1200Mbps, allowing users to enjoy streaming media, internet phone calls, web browsing, gaming, and daily internet usage.
• Dual-band Wi-Fi allows users to browse and make internet calls on the 2.4GHz band while streaming digital media on the 5GHz band with reduced lag and better performance.
• MU-MIMO technology improves multi-device performance by allowing multiple devices to stream and communicate more efficiently at the same time.
• Four external antennas help improve wireless coverage and signal reliability inside homes and small offices.
• The router includes one 10/100 Fast Ethernet WAN port and four 10/100 Fast Ethernet LAN ports for wired network devices such as PCs, DVR/NVR devices, media centers, NAS devices, gaming consoles, and switches.
• Multiple operating modes include Router, Access Point, Wireless Repeater, WISP Repeater, and Wi-Fi Client mode for flexible installation scenarios.
• Security and management features include WPA/WPA2, WPS, NAT firewall, DMZ, Guest Zone, IPv6 Ready, IPSec Server, VPN pass-through, and web-based setup wizard.
Key Features:
• AC1200 Dual Band Wi-Fi Router
• 802.11ac Wave 2 Wireless Technology
• Combined Wireless Speed up to 1200Mbps
• Dual-Band 2.4GHz and 5GHz Wi-Fi
• MU-MIMO Wireless Performance
• 1 × 10/100 Fast Ethernet WAN Port
• 4 × 10/100 Fast Ethernet LAN Ports
• Four External Antennas
• Quality of Service QoS
• Web-Based Setup Wizard
• Wi-Fi Protected Setup WPS
• WPA / WPA2 Wireless Security
• Guest Zone Support
• IPv6 Ready
• NAT Firewall
• DMZ Support
• Router Mode
• Access Point Mode
• Wireless Repeater Mode
• WISP Repeater Mode
• Wi-Fi Client Mode
• IPSec Server Support
• IPSec / PPTP / L2TP Pass-through
• Multiple WAN Connection Types
• Suitable for SOHO Home and Small Office Networks
Technical Specifications:
• Product Type: AC1200 Dual Band Wi-Fi Router
• Brand: D-Link
• Model: DIR-1210
• Wireless Standard: IEEE 802.11ac/n/g/b/a
• Wireless Technology: 802.11ac Wave 2
• Wireless Class: AC1200
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• Total Wireless Speed: Up to 1200Mbps
• Wireless Interface: IEEE 802.11ac/n/g/b/a Wireless LAN
• WAN Port: 1 × 10/100 Fast Ethernet WAN Port
• LAN Ports: 4 × 10/100 Fast Ethernet LAN Ports
• Antenna Type: Four External Antennas
• Operating Frequency 2.4GHz: 2400 – 2483.5MHz
• Operating Frequency 5GHz: 5150 – 5250MHz / 5724 – 5850MHz
• Ethernet Standard: IEEE 802.3u
• Wireless Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
• Operating Modes: Router, Access Point, Wireless Repeater, WISP Repeater, Wi-Fi Client
• WAN Connection Types: PPPoE, IPv6 PPPoE, PPPoE Dual Stack, Static IPv6, Dynamic IPv6, Static IPv4, Dynamic IPv4, PPPoE + Static IP, PPPoE + Dynamic IP, PPTP/L2TP + Dynamic IP, PPTP/L2TP + Static IP
• VPN: IPSec Server, IPSec / PPTP / L2TP Pass-through
• Security: WPA / WPA2, WPS
• Advanced Features: Web Setup Wizard, QoS, DMZ, NAT Firewall, Guest Zone, IPv6 Ready
• LED Indicators: Power, Internet, WLAN, LAN × 4, WPS
• Buttons: Power Button, WPS Button
• Power Connector: Supported
• Minimum OS Requirements: Windows 10 / 8.1 / 7 / Vista or Mac OS X 10.6 or Higher
• Browser Support: Internet Explorer 9, Firefox 20.0, Chrome 25.0, Safari 5.1 or Other JavaScript-Enabled Browser
• Network Requirement: Network Interface Card
• Internet Requirement: Cable or DSL Modem, Internet Service Provider Subscription
• Dimensions: 190 × 133 × 38 mm
• Weight: 263.1g
• Power Input: 100–240V AC, 50/60Hz
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: CE, RoHS, LVD, BSMI, NCC, FCC
• Ordering Information: DIR-1210 – AC1200 Wi-Fi Router
Applications:
• Home Wi-Fi network
• Small office wireless network
• SOHO internet sharing
• Streaming media
• Internet phone calls
• Online gaming
• Content-rich web browsing
• Wired connection for PCs and media centers
• Wired connection for NAS devices and gaming consoles
• Wired connection for DVR/NVR devices and switches
• Wireless repeater deployment
• Access point deployment
• WISP repeater deployment
• Wi-Fi client mode usage
• Guest Wi-Fi network setup
• IPv6-ready home and office networks
Connect Gates Recommendation:
• Recommended for users who need an affordable AC1200 dual-band router with MU-MIMO, QoS, flexible operating modes, and IPv6 support.
• Suitable for homes, apartments, shops, and small offices where Fast Ethernet wired ports are acceptable and the main requirement is stable dual-band Wi-Fi coverage.
