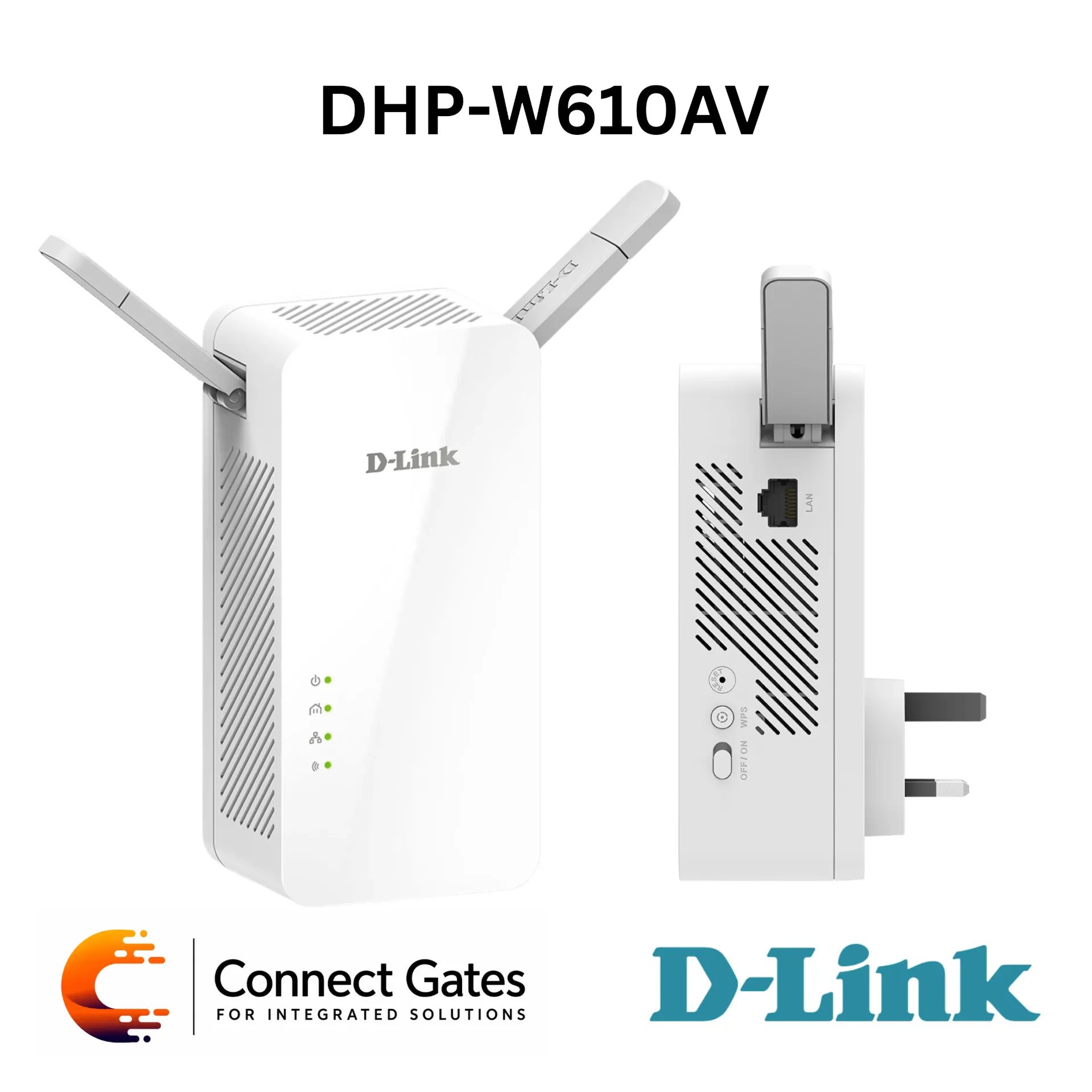

D-Link DHP-W610AV – PowerLine AV2 1000 Wi-Fi AC1200 Adapter with 1000Mbps Powerline, AC1200 Dual-Band Wi-Fi, Gigabit LAN Port, HomePlug AV2.1, WPS, 128-bit AES Encryption, QoS & Clone My Wi-Fi
Overview:
• The D-Link DHP-W610AV is a PowerLine AV2 1000 Wi-Fi AC1200 Adapter designed to extend both wired and wireless network coverage using existing electrical wiring.
• It allows users to expand an existing high-speed Powerline network and extend internet access and Wi-Fi coverage throughout the home.
• PowerLine AV2 1000 technology supports Powerline speeds up to 1000Mbps, making it suitable for high-bandwidth activities such as HD media streaming, online gaming, VoIP calls, and fast internet access.
• The adapter supports AC1200 Wi-Fi with speeds up to 866Mbps on Wireless AC and 300Mbps on Wireless N, giving users wireless access for phones, tablets, laptops, and smart devices.
• A 10/100/1000Mbps Gigabit Ethernet LAN port provides high-speed wired connectivity for fixed devices such as smart TVs, gaming consoles, desktop PCs, and media players.
• Security and setup features include Simple Connect, WPS, WPA/WPA2 wireless encryption, 128-bit AES Powerline encryption, QoS, IPv6, UPnP, power-saving mode, web setup, and Clone My Wi-Fi.
Key Features:
• PowerLine AV2 1000 Technology: Uses existing electrical wiring to extend network connectivity.
• Up to 1000Mbps Powerline Speed: Suitable for HD streaming, online gaming, VoIP calls, and high-speed internet use.
• AC1200 Wi-Fi: Provides wireless speeds up to 866Mbps + 300Mbps for compatible devices.
• Gigabit Ethernet LAN Port: Includes 10/100/1000Mbps LAN port for high-speed wired connectivity.
• HomePlug AV2.1 / AV2 Support: Compatible with IEEE 1901 and HomePlug AV2 devices.
• Improved Multi-Adapter Performance: AV2.1 support improves performance in multi-adapter Powerline networks.
• Simple Connect Button: Activates WPS wireless setup and secure Powerline encryption.
• WPA/WPA2 Wireless Security: Helps protect wireless network traffic.
• 128-bit AES Powerline Encryption: Secures Powerline communication over electrical wiring.
• Quality of Service: Prioritizes multimedia traffic for smoother streaming and gaming.
• Clone My Wi-Fi: Copies existing Wi-Fi settings to the extended network.
• Power-Saving Mode: Can reduce energy usage when the adapter is not actively transmitting data.
Technical Specifications:
• Product Type: PowerLine AV2 1000 Wi-Fi AC1200 Adapter
• Model: DHP-W610AV
• Powerline Interface: PLC Interface Compatible with HomePlug AV2, up to 1000Mbps
• Network Interfaces: 10/100/1000 Ethernet LAN Port with Auto MDI/MDIX, 802.11ac WLAN, WPS, Reset Button
• Ethernet Interface: Gigabit Ethernet LAN Port
• Wireless Standards: IEEE 802.11ac/n/g/a
• Wireless Speed: Up to 866Mbps + 300Mbps
• Powerline Standards: HomePlug AV2.1 / AV2, IEEE 1901
• Network Standards: IEEE 802.3, IEEE 802.3x
• Wireless Security: WPA/WPA2
• Powerline Security: 128-bit AES Encryption
• LED Indicators: Power, Ethernet, Powerline, Wi-Fi
• Advanced Features: IPv6 Support, Power-Saving Mode, PLC QoS, Clone My Wi-Fi
• Buttons: Simple Connect Button, Reset Button, Power Switch
• Power Input: 100V to 240V AC, 50/60Hz
• Power Consumption: Normal 9.22W, Network Standby 6.15W, Off 0.1W
• Dimensions: 140 × 68 × 50 mm
• Weight: US Type 313.6g, UK Type 323.0g, EU Type 315.2g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Certifications: CE/LVD, FCC/IC, UL, RoHS, HomePlug AV2
• Order Information: DHP-W610AV – PowerLine AV2 1000 Wi-Fi AC1200 Adapter
Applications:
• Extending wired and wireless network coverage through existing electrical wiring.
• Improving Wi-Fi coverage in rooms away from the main router.
• Connecting smart TVs, gaming consoles, desktop PCs, media players, and network devices.
• HD video streaming, online gaming, VoIP calls, web browsing, and high-speed internet use.
• Expanding an existing Powerline network with Wireless AC coverage.
• Suitable for homes and small offices where Ethernet cabling is difficult or Wi-Fi signal is weak.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DHP-W610AV for customers who need a high-speed Powerline adapter with built-in AC1200 Wi-Fi extension.
• It is a strong choice for homes and small offices where Wi-Fi coverage is weak and pulling Ethernet cables between rooms is not practical.
• The combination of 1000Mbps Powerline, AC1200 Wi-Fi, Gigabit LAN, QoS, and Clone My Wi-Fi makes it suitable for entertainment rooms, gaming areas, home offices, and smart TV locations.
• Compared with older 200Mbps and 500Mbps Powerline adapters, this model offers stronger performance and better suitability for multimedia and high-bandwidth applications.
• This adapter is recommended when the customer needs both wired-like Powerline connectivity and wireless AC coverage, but actual performance depends on the electrical wiring quality and whether adapters are connected within the same electrical system.
