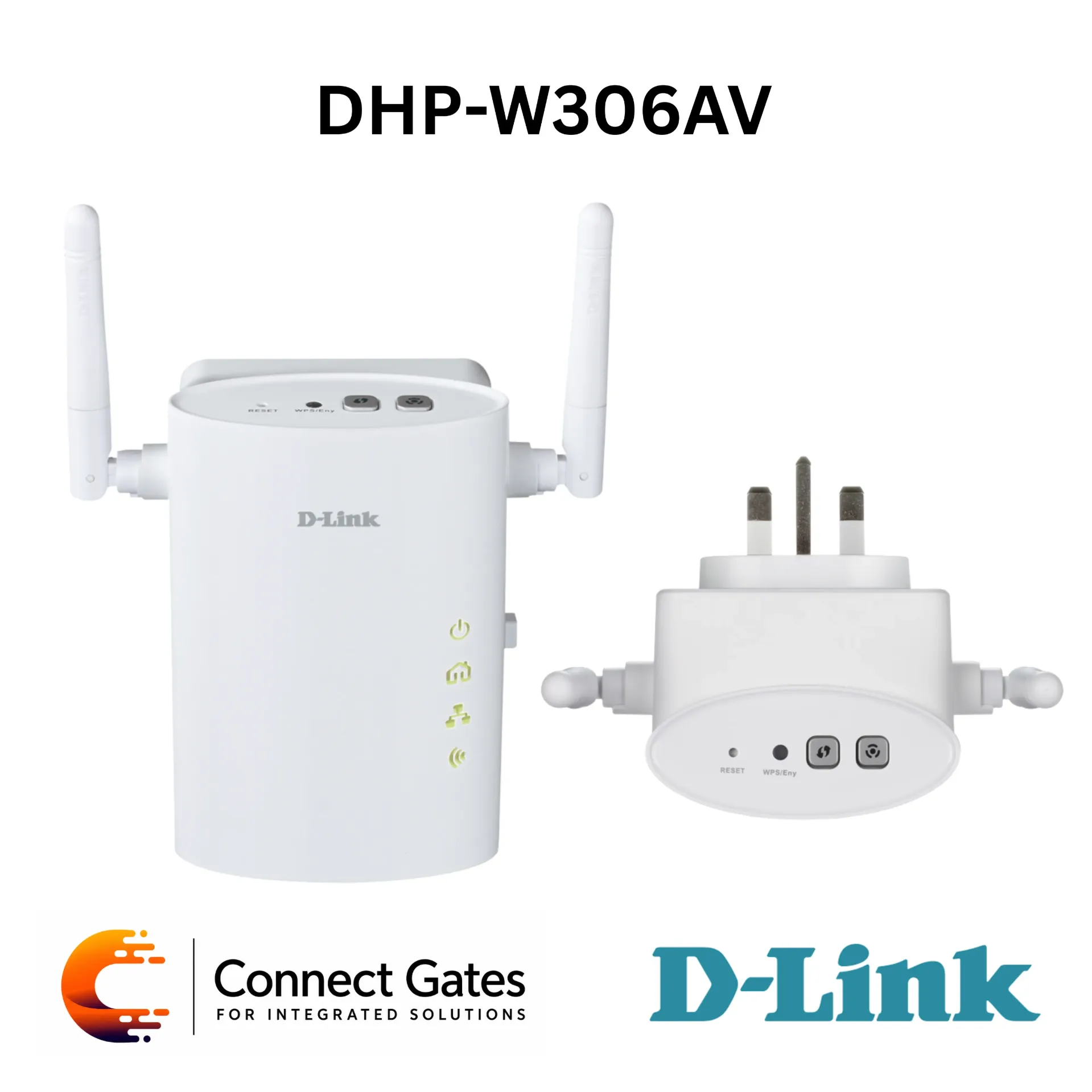

D-Link DHP-W306AV – PowerLine AV Wireless N Extender with 200Mbps Powerline Speed, Wireless N, 10/100 Ethernet Port, HomePlug AV, WPS, WPA/WPA2, 128-bit AES Encryption & QoS
Overview:
• The D-Link DHP-W306AV is a PowerLine AV Wireless N Extender designed to create or extend a home network using existing electrical wiring.
• It turns every power outlet into a possible network connection for digital media devices, game consoles, print servers, computers, and network storage devices.
• The device combines PowerLine AV connectivity with Wireless N, allowing users to extend wireless coverage to far areas of the home without installing additional network cables.
• PowerLine AV supports data transfer rates up to 200Mbps, making it suitable for HD video streaming, VoIP calls, online gaming, and faster file access across the network.
• Wireless N technology provides better wireless range and speed compared with older Wireless G devices.
• Security features include WPS, WEP, WPA/WPA2 wireless encryption, ENY encryption button, and 128-bit AES encryption for secure PowerLine communication.
Key Features:
• PowerLine AV Wireless N Extender: Extends wired and wireless connectivity through existing electrical wiring.
• Up to 200Mbps Powerline Speed: Suitable for HD streaming, online gaming, VoIP calls, and file sharing.
• Wireless N Connectivity: Provides wider wireless coverage than conventional Wireless G.
• 10/100 Ethernet Port: Includes Fast Ethernet port for wired device connection.
• HomePlug AV Support: Compatible with HomePlug AV PowerLine networking.
• WPS Button: Allows simple and secure wireless network setup.
• ENY Security Button: Enables secure transmission between HomePlug AV devices.
• 128-bit AES Encryption: Helps protect PowerLine network communication.
• WEP / WPA / WPA2 Security: Helps secure wireless traffic.
• QoS Support: Prioritizes multimedia and real-time applications such as VoIP and online gaming.
• Two External Antennas: Provides improved Wireless N coverage.
• Plug-and-Play Installation: Easy installation without extra drilling or new wiring.
Technical Specifications:
• Product Type: PowerLine AV Wireless N Extender
• Model: DHP-W306AV
• Powerline Standard: HomePlug AV
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Ethernet Interface: 10/100BASE-TX Ethernet Port with Auto MDI/MDIX
• Connector: RJ-45
• Maximum Data Rate: 200Mbps
• Antenna: 2 × Fixed External 2dBi Omni-Directional Antennas
• Powerline Modulation Scheme: OFDM Symbol Modulation
• Powerline Frequency Band: 2MHz to 30MHz
• Security: 128-bit AES Data Encryption, WEP 64/128-bit Data Encryption, WPA/WPA2, WPS
• LED Indicators: Power, Powerline, Ethernet, WLAN
• Power Saving: Power Saving Mode Supported
• Energy Compliance: European Energy Using Product Directive EuP
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 95% Non-Condensing
• Dimensions: 105 × 70 × 52 mm
• Weight: 208g
• Safety Certifications: UL, Wi-Fi
• EMC Certifications: FCC, IC
• Power Range: 110 to 240VAC, 50/60Hz
• Package Contents: PowerLine AV Wireless N Extender, Ethernet Cable, CD-ROM, Quick Install Guide
• Warranty: 1-Year Limited Warranty
Applications:
• Extending wired and wireless network coverage through existing electrical wiring.
• Connecting wired and wireless computers, HDTVs, network devices, and gaming consoles.
• Extending Wi-Fi coverage to far rooms without pulling new network cables.
• HD video streaming, VoIP calls, online gaming, file sharing, and multimedia streaming.
• Home network expansion where Wi-Fi signal is weak or Ethernet cabling is difficult.
• Suitable for rooms that need both wireless access and one wired Ethernet connection.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DHP-W306AV for customers who need a simple PowerLine solution with Wireless N coverage in one device.
• It is suitable for homes and small offices where Wi-Fi does not reach some rooms and new cabling is not preferred.
• The combination of PowerLine AV, Wireless N, Fast Ethernet, WPS, QoS, and encryption makes it practical for basic room-to-room network extension.
• It is recommended for connecting devices like smart TVs, gaming consoles, laptops, desktop PCs, and media devices in areas away from the main router.
• This model is best for basic PowerLine and Wireless N extension, while actual performance depends on electrical wiring quality and whether adapters are connected within the same electrical system.
