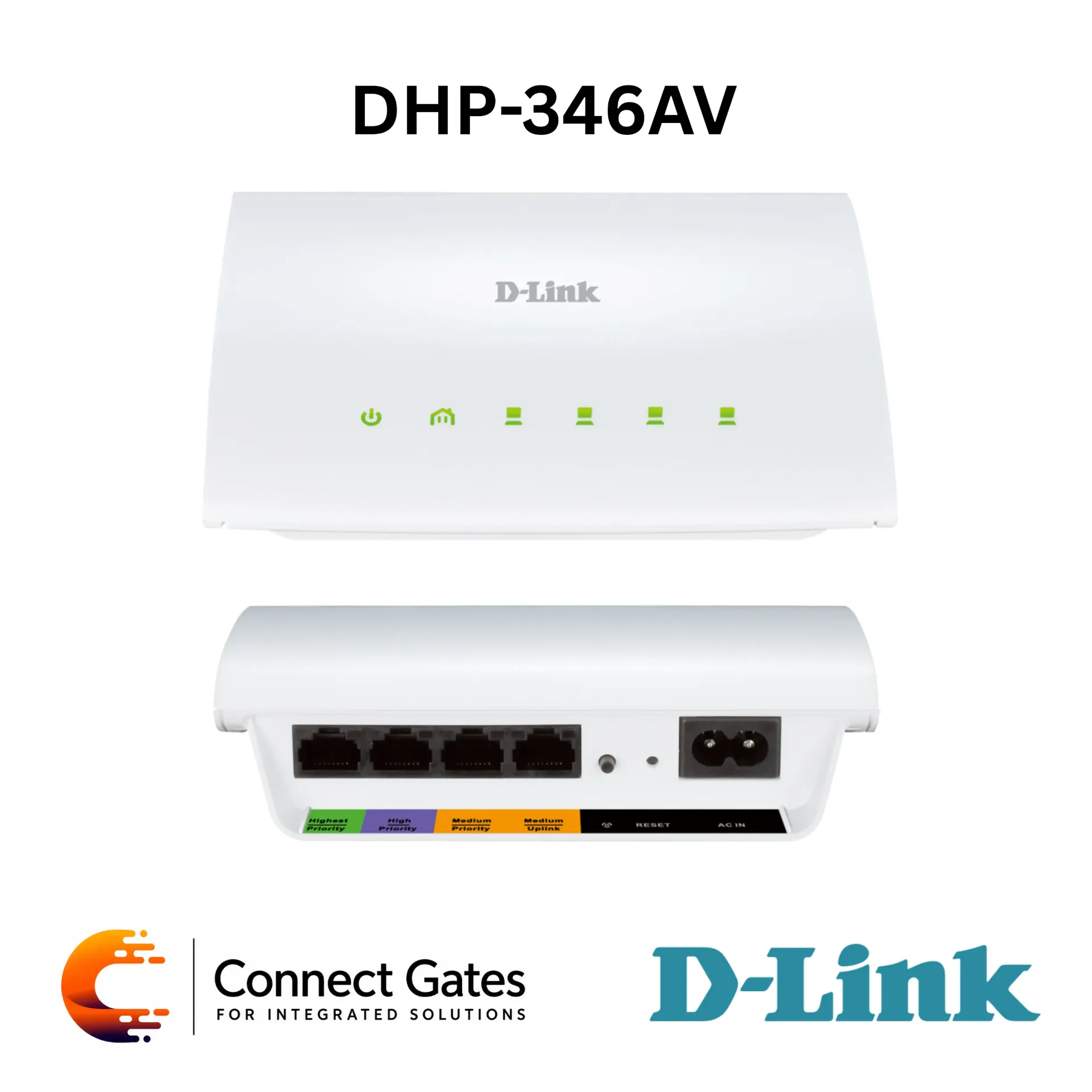

D-Link DHP-346AV – PowerLine AV 4-Port Switch with 200Mbps Powerline Speed, 4×10/100 Ethernet Ports, HomePlug AV, 128-bit AES Encryption, Port-Based QoS, Simple Connect & Plug-and-Play Design
Overview:
• The D-Link DHP-346AV is a PowerLine AV 4-Port Switch designed to extend network connectivity through existing electrical wiring.
• It turns any electrical outlet into a network connection, allowing users to connect more Ethernet-enabled devices in any room without installing new network cables.
• PowerLine AV technology supports speeds up to 200Mbps over existing electrical wiring, making it suitable for home networking, internet sharing, media streaming, and gaming.
• The switch includes four 10/100BASE-TX Ethernet ports, allowing multiple wired devices to connect from the same room.
• Port-based Quality of Service helps prioritize traffic for gaming, HD movies, and bandwidth-intensive applications.
• Simple Connect and 128-bit AES encryption help create a secure PowerLine network with easy push-button setup.
Key Features:
• PowerLine AV 4-Port Switch: Extends wired network connectivity through existing electrical wiring.
• Up to 200Mbps Powerline Speed: Suitable for internet sharing, file sharing, media streaming, and online gaming.
• 4 Ethernet Ports: Connect up to four Ethernet-enabled devices per switch.
• 10/100BASE-TX Ports: Provides Fast Ethernet wired connectivity with Auto MDI/MDIX.
• HomePlug AV Support: Compatible with HomePlug AV Powerline devices.
• 128-bit AES Encryption: Helps secure PowerLine network communication.
• Simple Connect Button: Push-button secure encryption setup.
• Port-Based QoS: Helps prioritize internet traffic for gaming and HD media streaming.
• Plug-and-Play Installation: Ready to use with no complicated installation.
• Power Saving Mode: Enters power-saving mode when no data link is detected after 5 minutes.
• D-Link Green Technology: Designed to reduce power usage and support eco-friendly operation.
Technical Specifications:
• Product Type: PowerLine AV 4-Port Switch
• Model: DHP-346AV
• Powerline Standard: HomePlug AV
• Network Standards: IEEE 802.3, IEEE 802.3u
• Ethernet Interface: 4 × 10/100BASE-TX Ethernet Ports with Auto MDI/MDIX
• Connector: RJ-45
• Maximum PHY Rate: 200Mbps
• Security: 128-bit AES Data Encryption
• QoS: Port-Based Quality of Service
• Setup: Simple Connect Push-and-Secure Encryption Button
• LED Indicators: Power, Powerline, Ethernet
• Power Saving: Power Saving Mode Supported
• Power Saving Behavior: Goes into power-saving mode when no data link is detected after 5 minutes
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Dimensions: 105 × 70 × 52 mm
• Weight: 136g
• EMC Certifications: FCC Class B, CE EMC Class B, C-Tick
• Safety Certifications: UL, CE LVD, Wi-Fi
• Warranty: 1-Year Limited Warranty
• Starter Kit Option: DHP-347AV – Includes 1 × DHP-346AV PowerLine AV 4-Port Switch and 1 × DHP-306AV PowerLine AV Adapter
Applications:
• Extending wired network access through existing electrical wiring.
• Connecting multiple wired devices in one room without running new cables.
• Connecting Blu-ray players, media players, gaming consoles, smart TVs, desktop PCs, and network devices.
• HD movie streaming, online gaming, file sharing, and internet access.
• Home networking in rooms where Wi-Fi is weak or Ethernet cabling is difficult.
• Suitable for users who need multiple Ethernet ports from one PowerLine location.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DHP-346AV for customers who need PowerLine network extension with multiple wired ports in the same room.
• It is a practical choice for entertainment rooms, gaming areas, home offices, and locations with several Ethernet devices.
• The 4-port Fast Ethernet switch makes it more useful than single-port PowerLine adapters when the customer needs to connect more than one device.
• Port-based QoS helps prioritize HD streaming and gaming traffic, making it suitable for multimedia use.
• This switch is recommended when the customer needs simple plug-and-play wired connectivity through electrical wiring, but actual PowerLine performance depends on the wiring quality and whether adapters are connected within the same electrical system.
