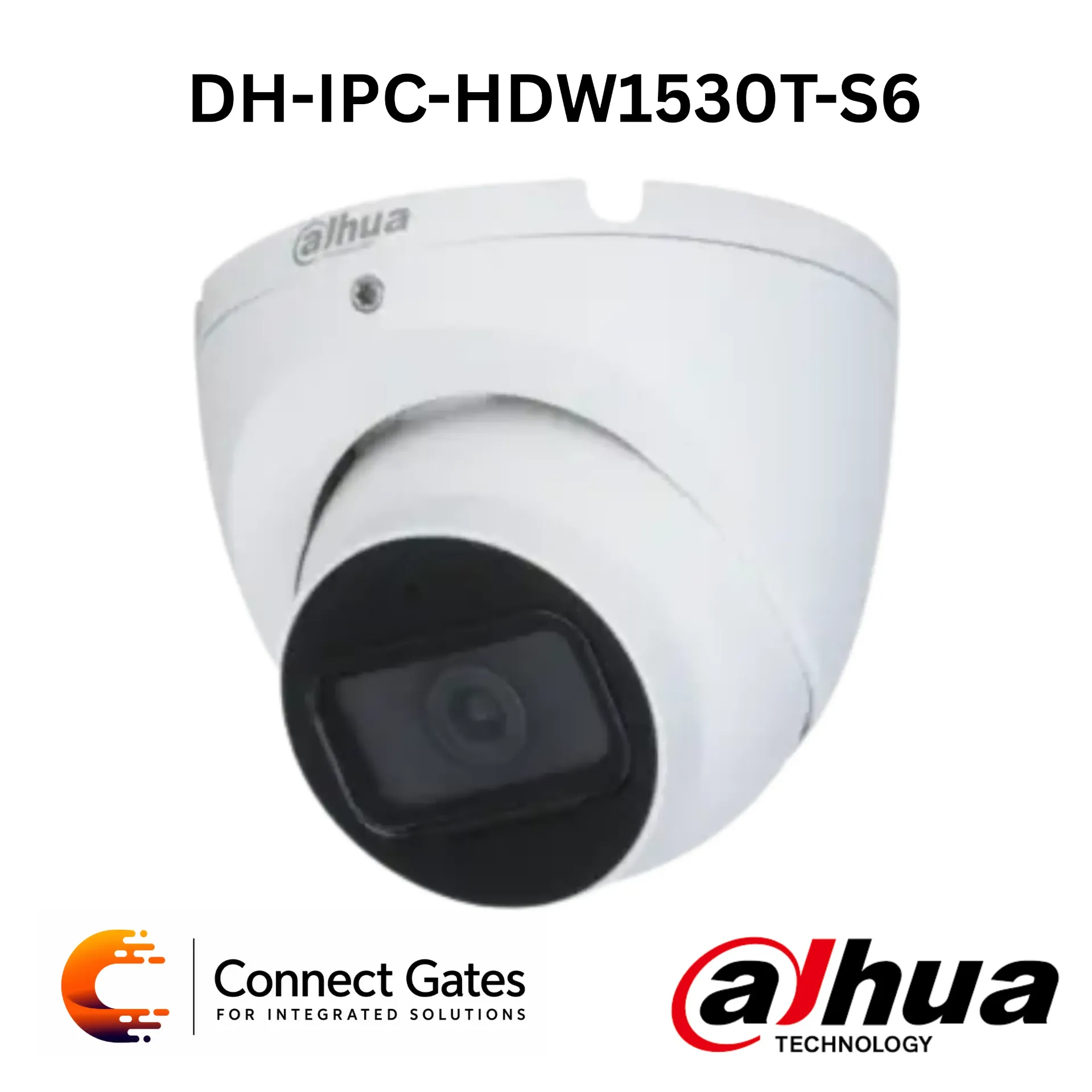

Dahua DH-IPC-HDW1530T-S6 – 5MP Entry IR Fixed-focal Eyeball Network Camera with Built-in Mic
Overview:
• The Dahua DH-IPC-HDW1530T-S6 is a 5MP Entry Series IR fixed-focal eyeball network camera designed for small and medium surveillance projects
• Provides up to 5MP resolution at 20fps and supports 2688 × 1520 at up to 25/30fps for detailed monitoring
• Equipped with built-in IR LED with illumination distance up to 30m for night monitoring
• Includes built-in microphone for audio recording
• Supports H.265, Smart H.265+, Smart H.264+, ROI, DWDR, 3D NR, HLC, BLC, digital watermarking, and image rotation
• Supports abnormality detection including motion detection, video tampering, audio detection, network disconnection, IP conflict, illegal access, and security exception
• Supports 12V DC and PoE power supply for flexible installation
• IP67 protection and metal casing make it suitable for indoor and outdoor surveillance installations
Key Features:
• 5MP Entry Series IP eyeball camera
• 1/2.7" CMOS image sensor
• Max 2880 × 1620 resolution
• 5MP up to 20fps
• 2688 × 1520 up to 25/30fps
• IR illumination up to 30m
• Built-in microphone
• H.265 / H.264 video compression
• Smart H.265+ / Smart H.264+
• DWDR, 3D NR, HLC, BLC
• ROI and privacy masking
• Motion detection and video tampering detection
• Image rotation support
• ONVIF Profile S / Profile T support
• 12V DC / PoE power supply
• IP67 protection rating
• Metal casing
Technical Specifications:
• Image Sensor: 1/2.7" CMOS
• Max Resolution: 2880 × 1620
• ROM: 16MB
• RAM: 128MB
• Scanning System: Progressive
• Min. Illumination: 0.03 lux @ F2.0 Color, 0.003 lux @ F2.0 B/W, 0 lux with IR on
• S/N Ratio: More than 56dB
• Illumination Distance: IR up to 30m
• Illuminator Number: 1 IR LED
• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8mm / 3.6mm
• Max Aperture: F2.0
• Field of View 2.8mm: H 106°, V 56°, D 125°
• Field of View 3.6mm: H 92°, V 48°, D 109°
• Video Compression: H.265 / H.264 / H.264B / MJPEG
• Smart Codec: Smart H.265+ / Smart H.264+
• Main Stream: 2880 × 1620 @ 1–20fps / 2688 × 1520 @ 1–25/30fps
• Sub Stream: 704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps
• Stream Capability: 2 streams
• Resolution Options: 2880 × 1620 / 2688 × 1520 / 2560 × 1440 / 3MP / 1080P / 1.3MP / 720P / D1 / VGA / CIF
• Bit Rate Control: CBR / VBR
• Video Bit Rate: H.264 32Kbps–6144Kbps, H.265 12Kbps–6144Kbps
• Day/Night: Auto ICR / Color / B/W
• WDR: DWDR
• Noise Reduction: 3D NR
• Motion Detection: 4 rectangular areas
• ROI: 4 areas
• Privacy Masking: 4 areas
• Smart Illumination: Yes
• Image Rotation: 0° / 90° / 180° / 270°
• Audio: Built-in Mic
• Audio Compression: G.711a / G.711Mu / G.726 / PCM
• Network Port: RJ-45 10/100 Base-T
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast
• Interoperability: ONVIF Profile S / Profile T, CGI, P2P, Genetec, Milestone
• Users: 6 users, total bandwidth 48M
• Management Software: Smart PSS / DSS / DMSS
• Mobile Client: iOS / Android
• Power Supply: 12V DC / PoE 802.3af
• Power Consumption: Max 3.7W at 12V DC / 4.5W PoE
• Operating Temperature: -40°C to +60°C
• Protection: IP67
• Casing Material: Metal
• Dimensions: 85.6 × Φ94.0 mm
• Net Weight: 0.32 kg
Applications:
• Homes and residential buildings
• Small retail shops
• Offices and reception areas
• Villas and compounds
• Building entrances
• Corridors and public areas
• Small warehouses and storage rooms
• Outdoor monitoring points
• Projects requiring 5MP IP monitoring with audio recording
• Sites requiring IR night vision with PoE installation
Connect Gates Recommendation:
• Recommended for IP surveillance projects requiring higher image detail than standard 2MP and 4MP cameras
• Suitable for small and medium installations where 5MP resolution, PoE, built-in audio, IR night vision, and IP67 protection are required
• Best used with Dahua NVR recorders to support full IP camera performance, smart codec, and efficient recording storage
