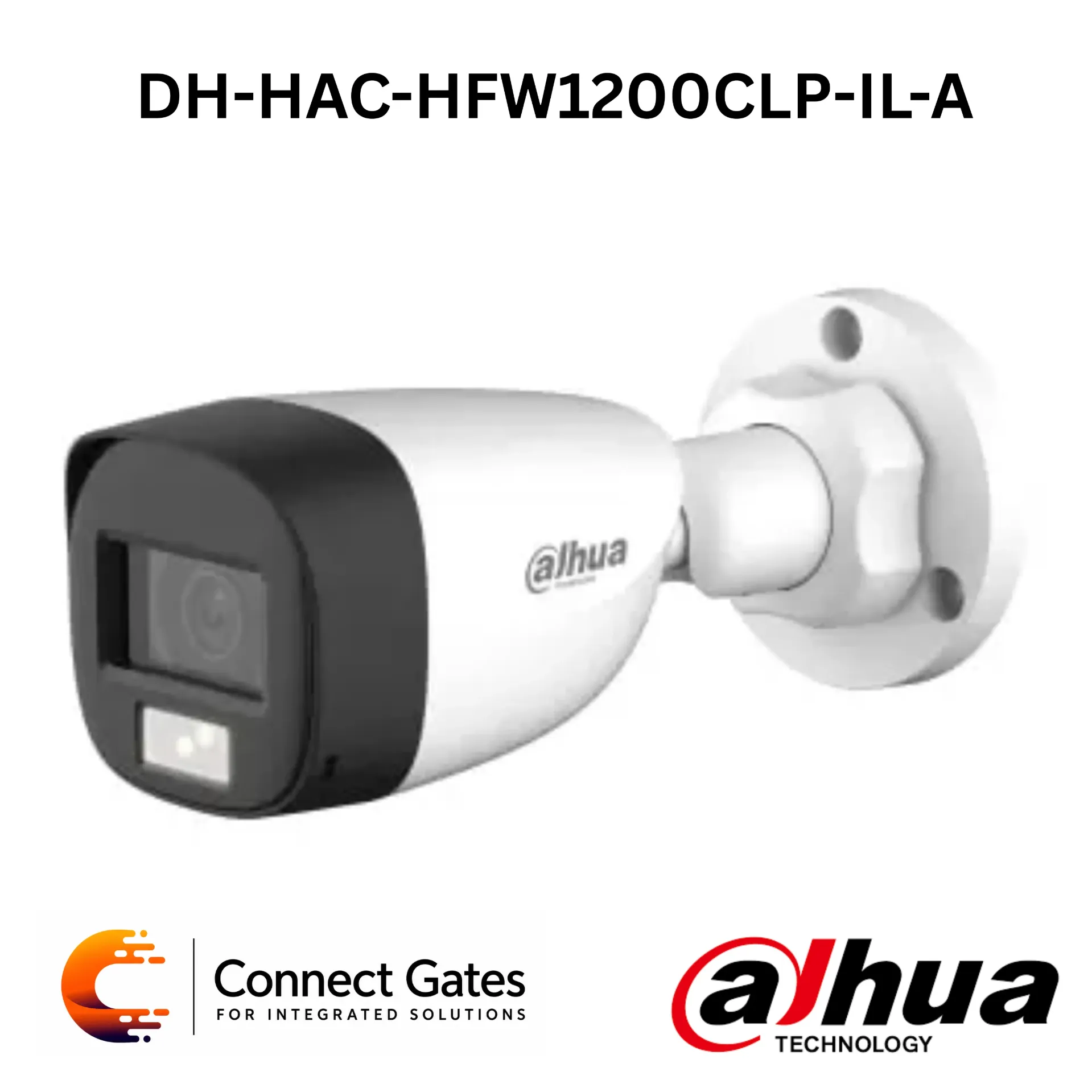

Dahua DH-HAC-HFW1200CLP-IL-A – 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera with Built-in Mic
Overview:
• The Dahua DH-HAC-HFW1200CLP-IL-A is a 2MP Smart Dual Light HDCVI fixed-focal bullet camera designed for cost-effective HD analog CCTV systems
• Provides 1080P high-quality imaging with Smart Dual Light technology for clear day and night monitoring
• Includes built-in microphone for audio recording over coaxial cable
• Supports CVI / TVI / AHD / CVBS switchable output through one BNC port for compatibility with Dahua XVR and multi-format DVR/XVR systems
• Equipped with 3D NR, DWDR, and Super Adapt for improved image quality in different lighting conditions
• IP67 protection makes it suitable for indoor, outdoor, and semi-outdoor surveillance installations
Key Features:
• 2MP HDCVI fixed-focal bullet camera
• 1080P resolution up to 30fps
• Smart Dual Light with IR and warm light modes
• IR illumination up to 20m
• Warm light illumination up to 20m
• Built-in microphone
• 3D NR, DWDR, and Super Adapt
• CVI / TVI / AHD / CVBS switchable output
• BNC video output with DIP Switch
• 2.8mm / 3.6mm fixed lens options
• IP67 protection rating
• 12V DC power supply
• Wall mount, ceiling mount, and vertical pole mount installation
Technical Specifications:
• Brand: Dahua
• Model: DH-HAC-HFW1200CLP-IL-A
• Camera Type: 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
• Image Sensor: 2MP CMOS
• Max Resolution: 1920 × 1080
• Scanning System: Progressive
• Min. Illumination: 0.01 lux @ F2.0 Color, 0.001 lux @ F2.0 B/W, 0 lux with illuminator on
• Illumination Distance: IR 20m, Warm Light 20m
• Lens Type: Fixed-focal
• Focal Length: 2.8mm / 3.6mm
• Field of View 2.8mm: H 111.3°, V 60.8°, D 134.2°
• Field of View 3.6mm: H 89°, V 48.2°, D 109.1°
• Video Frame Rate: PAL 1080P @ 25fps / NTSC 1080P @ 30fps
• Video Output: CVI / TVI / AHD / CVBS by one BNC port
• Image Enhancement: BLC / HLC / DWDR / 3D NR / Super Adapt
• Audio: 1-channel built-in microphone
• Power Supply: 12V DC ±30%
• Power Consumption: Max 4.3W
• Operating Temperature: -40°C to +60°C
• Protection: IP67
• Casing Material: Plastic
• Dimensions: 161.6 × 69.7 × 70.0 mm
• Net Weight: 0.20 kg
• Installation: Wall mount / Ceiling mount / Vertical pole mount
Applications:
• Building entrances and outdoor fronts
• Retail shops and showrooms
• Offices and reception areas
• Villas and residential buildings
• Parking areas and gates
• Corridors and semi-outdoor areas
• Small warehouses and storage rooms
• Sites requiring audio evidence
• HD analog system upgrades using existing coaxial cable
Connect Gates Recommendation:
• Recommended for cost-effective 2MP HDCVI installations requiring Smart Dual Light and built-in audio
• Suitable for shops, offices, villas, entrances, corridors, and small outdoor monitoring points
• Best used with compatible Dahua XVR recorders to support Smart Dual Light, audio over coaxial cable, and full HDCVI performance
